2. Remove the top burner igniter switch.
3. Using a 5/8" wrench, disconnect the aluminum
tubing from the rear of the valve.
4. Using a 5/16" socket, remove the bolt clamping
the valve to the manifold pipe and lift the valve off.

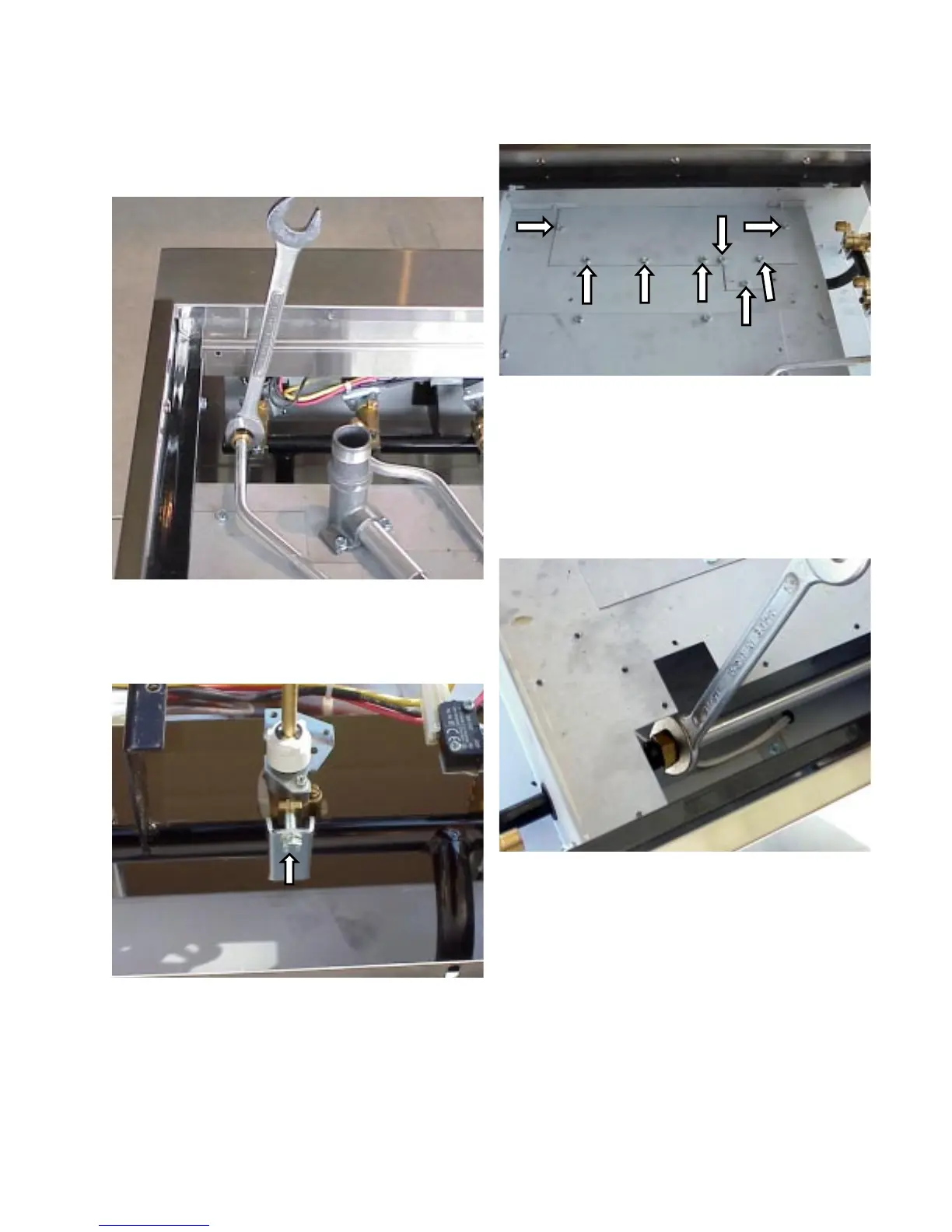

Removing the manifold pipe:
1. Disconnect power, turn off the gas supply and
remove the control panel.
2. Remove the burner tubing assembly for the right
rear burner.
3. Remove the (8) screws holding the manifold access
panel to the burner box and remove the panel.
4. Disconnect the aluminum tubing from the rear of
the valves or if the manifold pipe is to be replaced
remove the valves.
5. Using a 15/16" wrench disconnect the aluminum
tubing from the manifold pipe and pull the manifold
pipe out the front.
Removing the kick panel assembly:
1. Remove the oven door.
