107

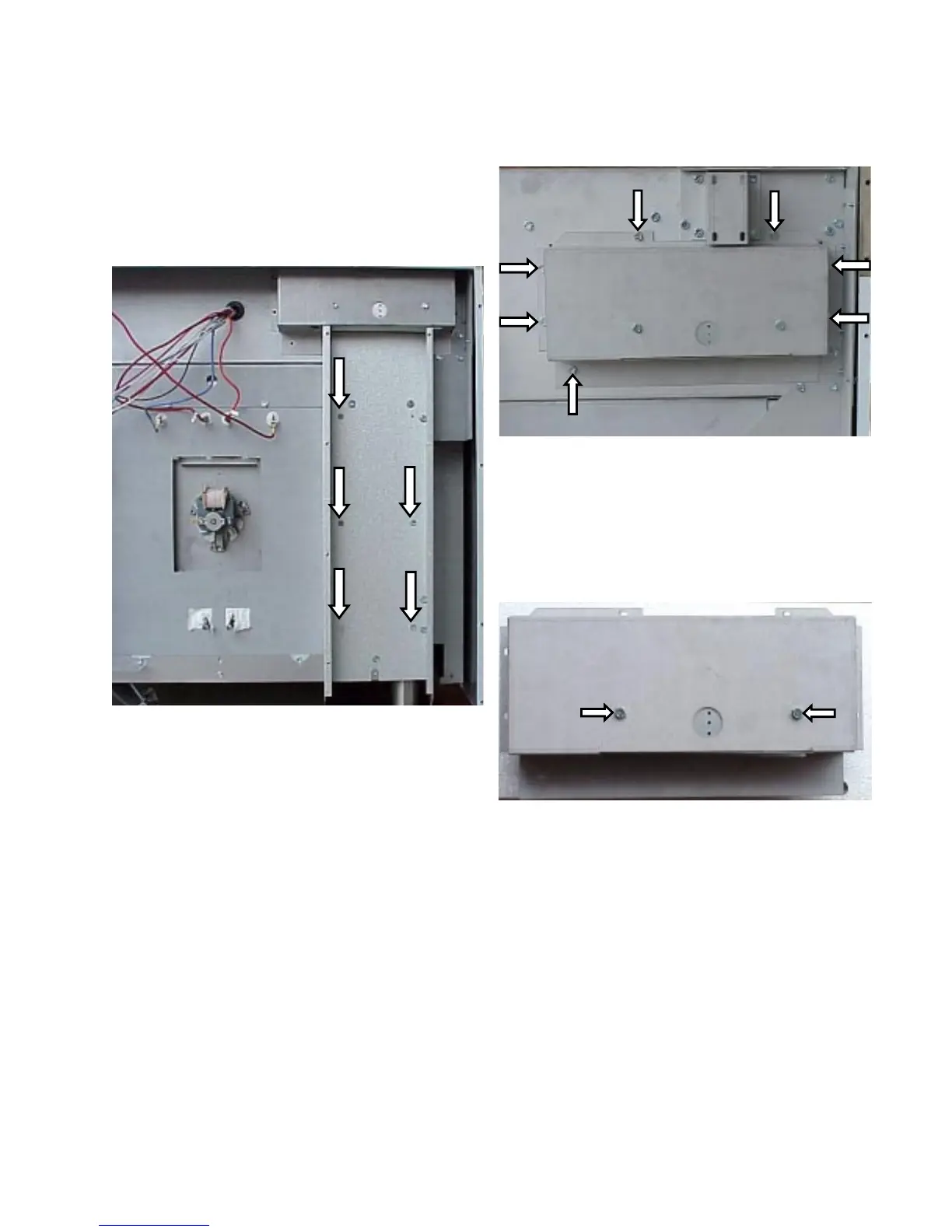

Removing the rear air channel:
1. Disconnect power, remove the back cover and the
rear air channel cover.
2. Remove the (5) screws holding the air channel to
the rear the oven and lift it off.
Removing the cooling fan assembly :
1. Disconnect power, remove the back cover, the
rear air channel cover and the rear air channel.
2. Remove the (7) screws holding the cooling fan cover
to the rear of the oven. Pull the assembly back and
disconnect the wires to the fan motor.
.
Removing the cooling fan assembly cover:
1. Disconnect power and the cooling fan assembly.
2. Remove the (2) screws holding the cover to the
assembly and lift the cover off.
Removing the remove oven racks switch:
1. Disconnect power and remove the back cover.
