2. Remove the (4) screws holding the front spill tray
trim to the front spill tray support.

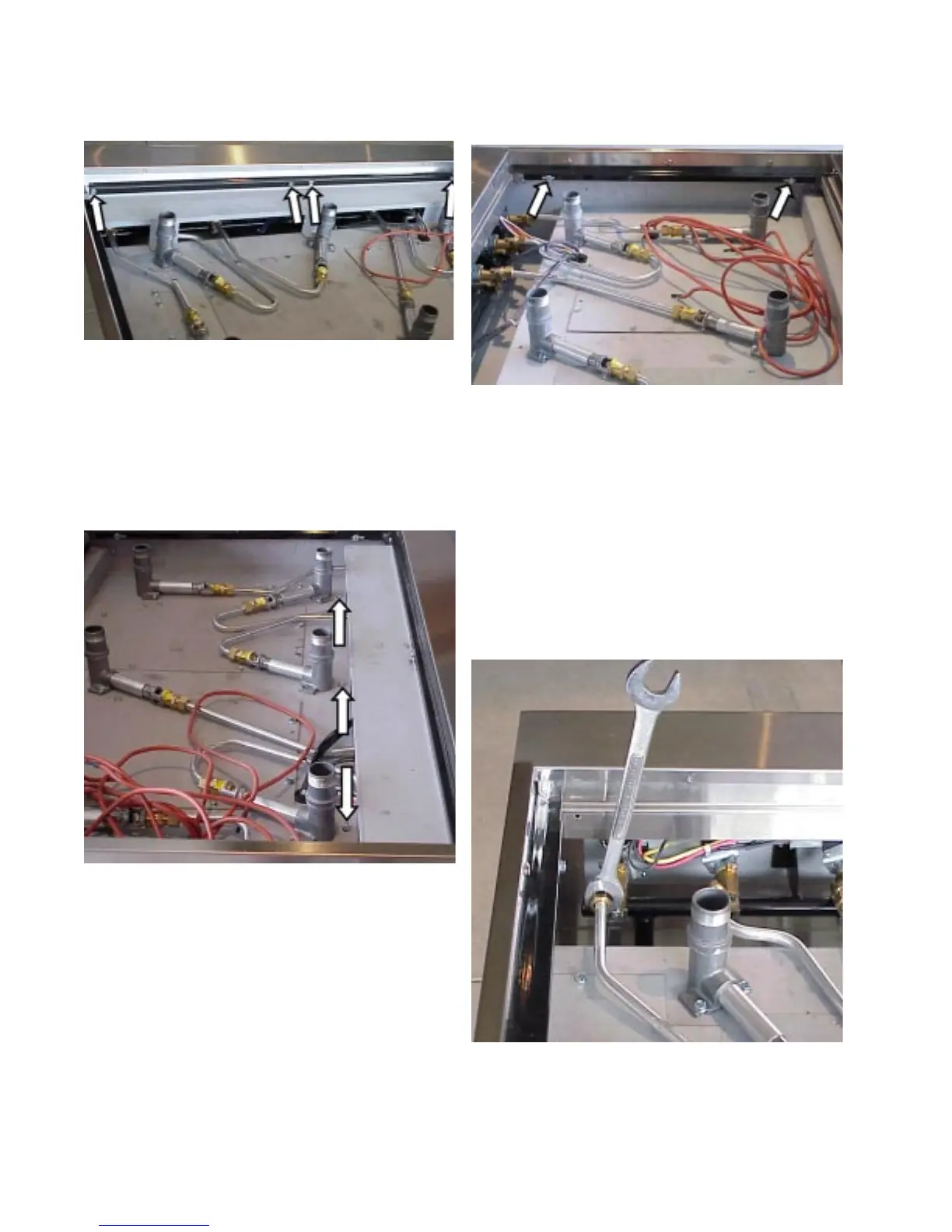

Removing the front spill tray support:
1. Remove the spill tray and the front spill tray support
trim.
2. Remove the (3) screws holding the support to the
burner box and lift the support out.
Removing the side spill tray support:
1. Remove the spill tray.
2. Remove (2) screws holding the side support to
the burner box and lift the support off.
Removing burner tubing assembly:
1. Remove the spill tray and the front spill tray
support.
2. Remove the (2) screws holding the burner tube to
the burner box.
3. Using a 5/8" wrench, disconnect the aluminum
tubing from the valve and lift the tubing assembly
out.
