108

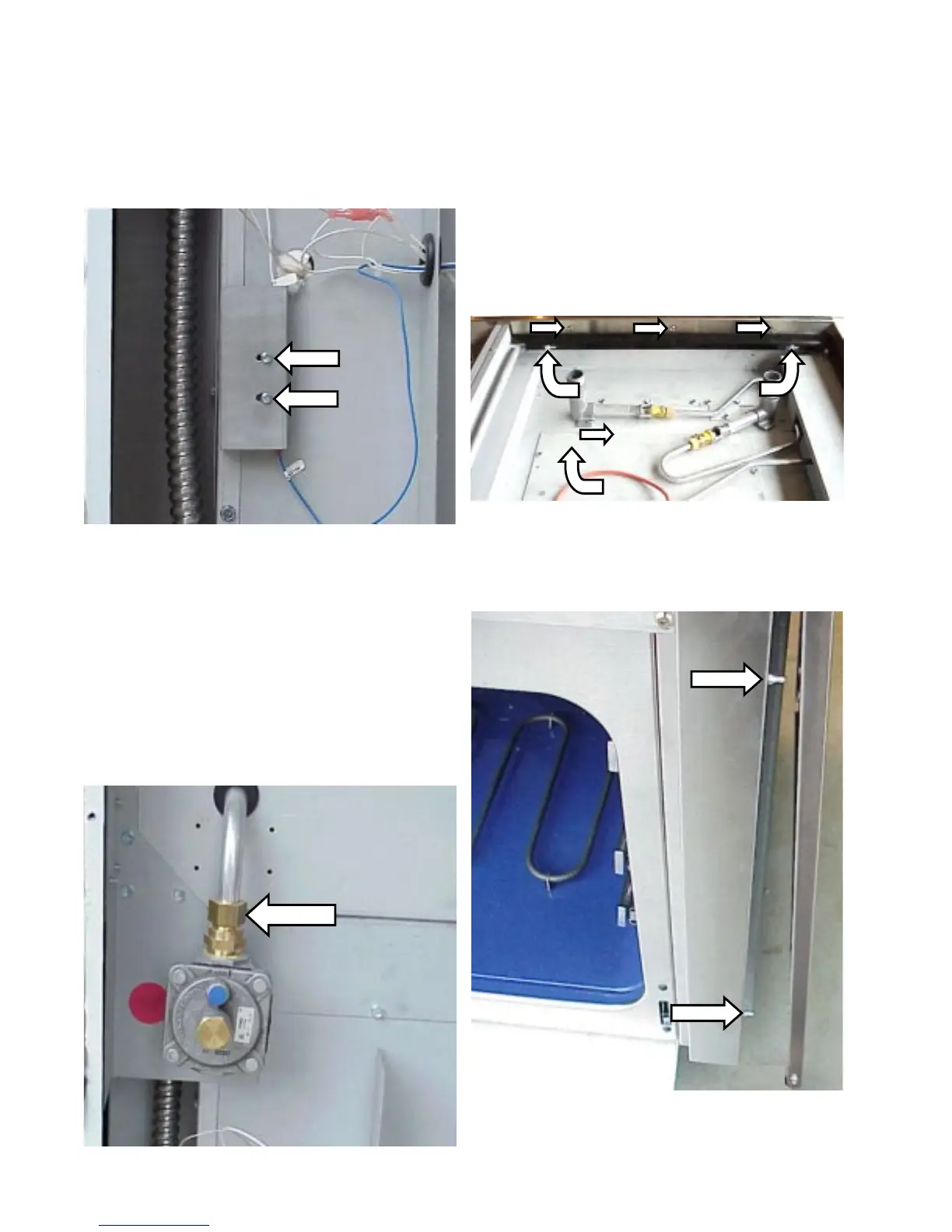

2. Remove the (2) screws holding the switch to the
mounting bracket. Drop to switch down and
disconnect the wires.
Removing the pressure regulator:
1. Disconnect power, turn off the gas supply and
remove the back cover.
2. Disconnect the incoming gas line from the
pressure regulator.
3. Using a 15/16" wrench, disconnect the aluminum
tubing, while holding the regulator.
Removing the side panels:
1. Disconnect power and remove the spill tray and
backsplash.
2. Remove the kick panel and the (4) screws holding
the back cover to the side panel.
3. Remove the (3) screws holding the side panel to
the inside of the burner box and loosen the (2)
screws holding the spill tray support on that side.
Remove
Loosen
4. Pull out on the bottom of the side panel until the
front pins release.
