93

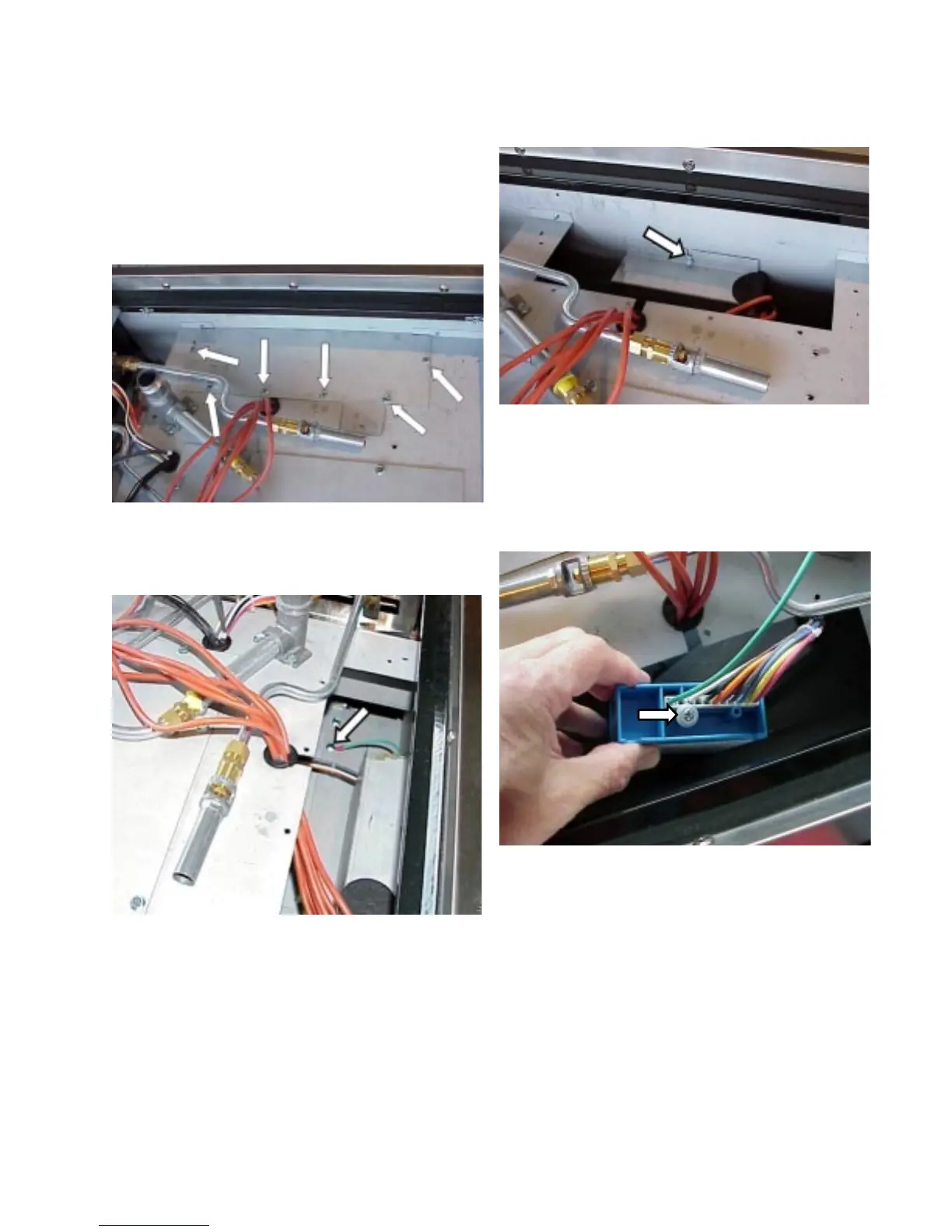

Removing igniter module:
1. Disconnect power, remove the spill tray and left rear
burner tube.
2. Remove the (6) screws holding the igniter module
access panel to the burner box and remove the
panel.
3. Remove the screw holding the ground wire to the
top of the oven.
4. Remove the screw holding a module cover to the
side of the range.
5. Remove the cover and disconnect the wires to the
igniters.
6. Remove the screw holding the harness plug to the
module, disconnect the plug and lift the module out.
