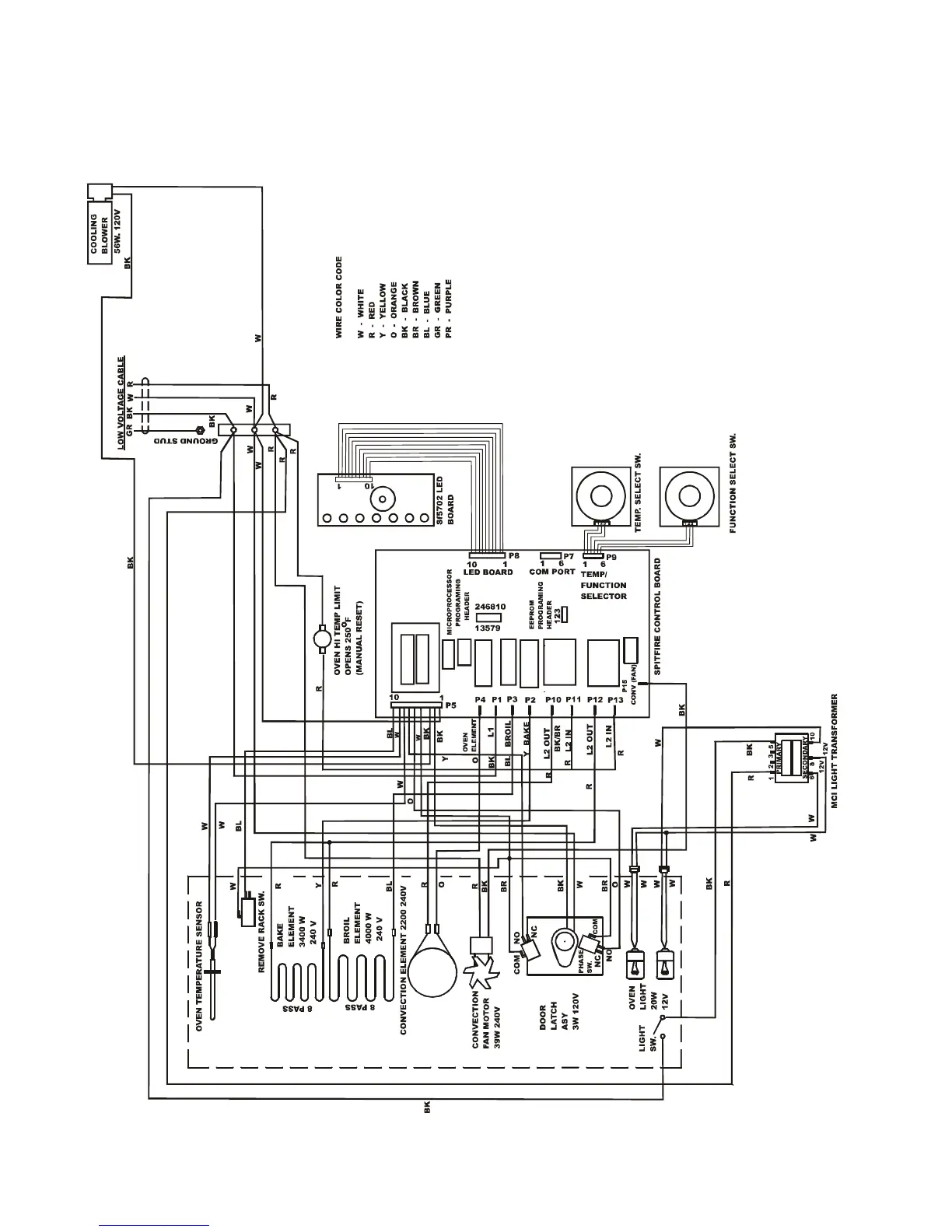

Sample wiring diagram of the large oven section
Always use the diagram with the product
SAMPLE WIRING DIAGRAM FOR OVEN SECTION 30 INCH
36 INCH AND LARGE OVEN OF THE 48 INCH MODELS.
ALWAYS REFER TO DIAGRAM WITH PRODUCT.
Com
NO
NC
LOCK SW.
