3. Disconnect the (2) wire hangers, holding element
to the ceiling of the oven.
4. Pull the broil element into the oven and disconnect
the wires.

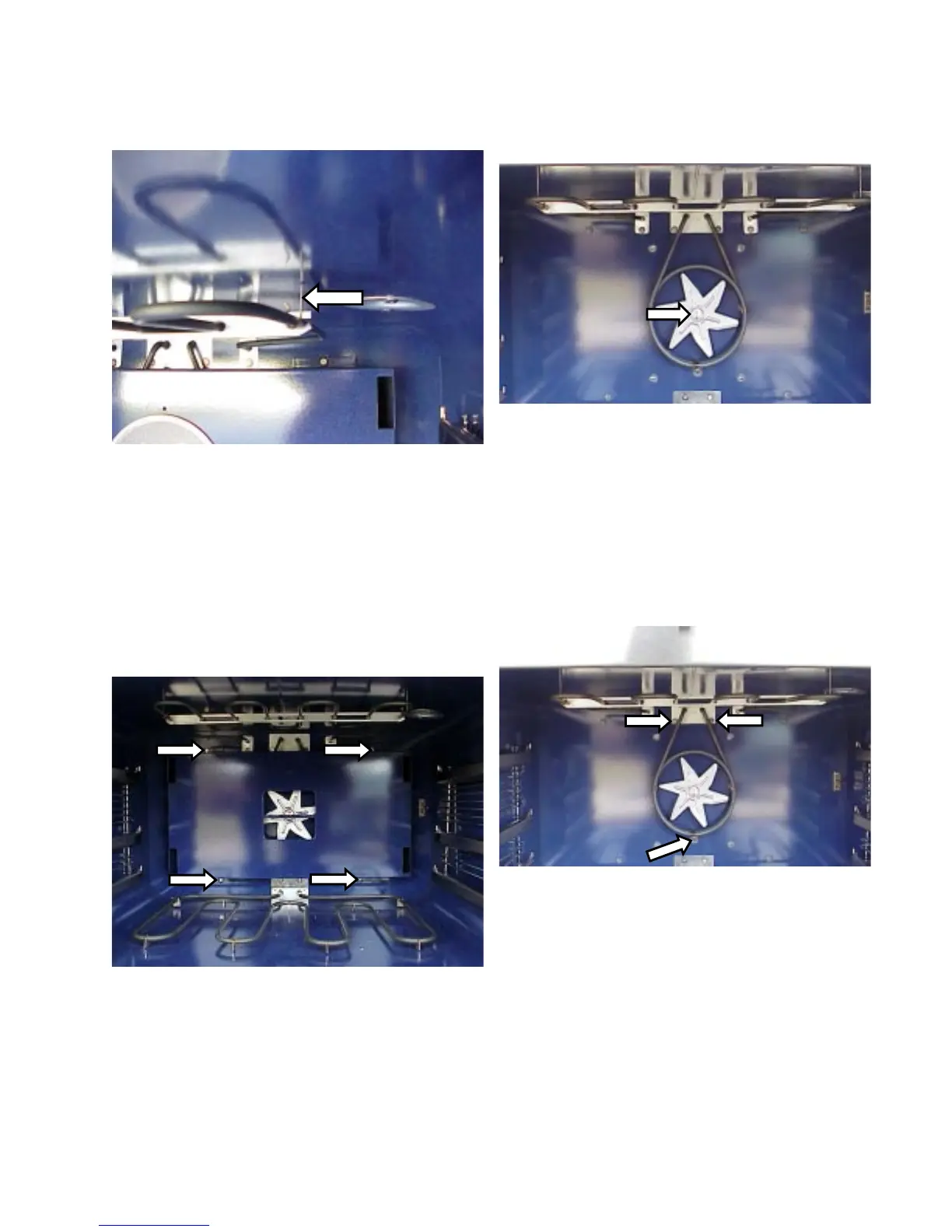

Removing the convection baffle:
1. Open the oven door.
2. Remove the (4) screws holding the baffle to the rear
wall of the oven and lift the baffle off.
Removing the convection fan blade:
1. Open the oven door and remove the convection
baffle.
2. Using a 17/32” socket remove the nut holding the
fan blade to the shaft, by turning it clockwise and lift
the fan blade off.
CLOCKWISE
Removing the convection element:
1. Disconnect power and remove the convection
baffle.
2. Remove the (3) screws, two at the top and one at
the bottom, holding the convection element to the
rear wall of the oven. Pull the element into the oven
and disconnect the wires.
Removing the smoke eliminator:
1. Open the oven door.
