97

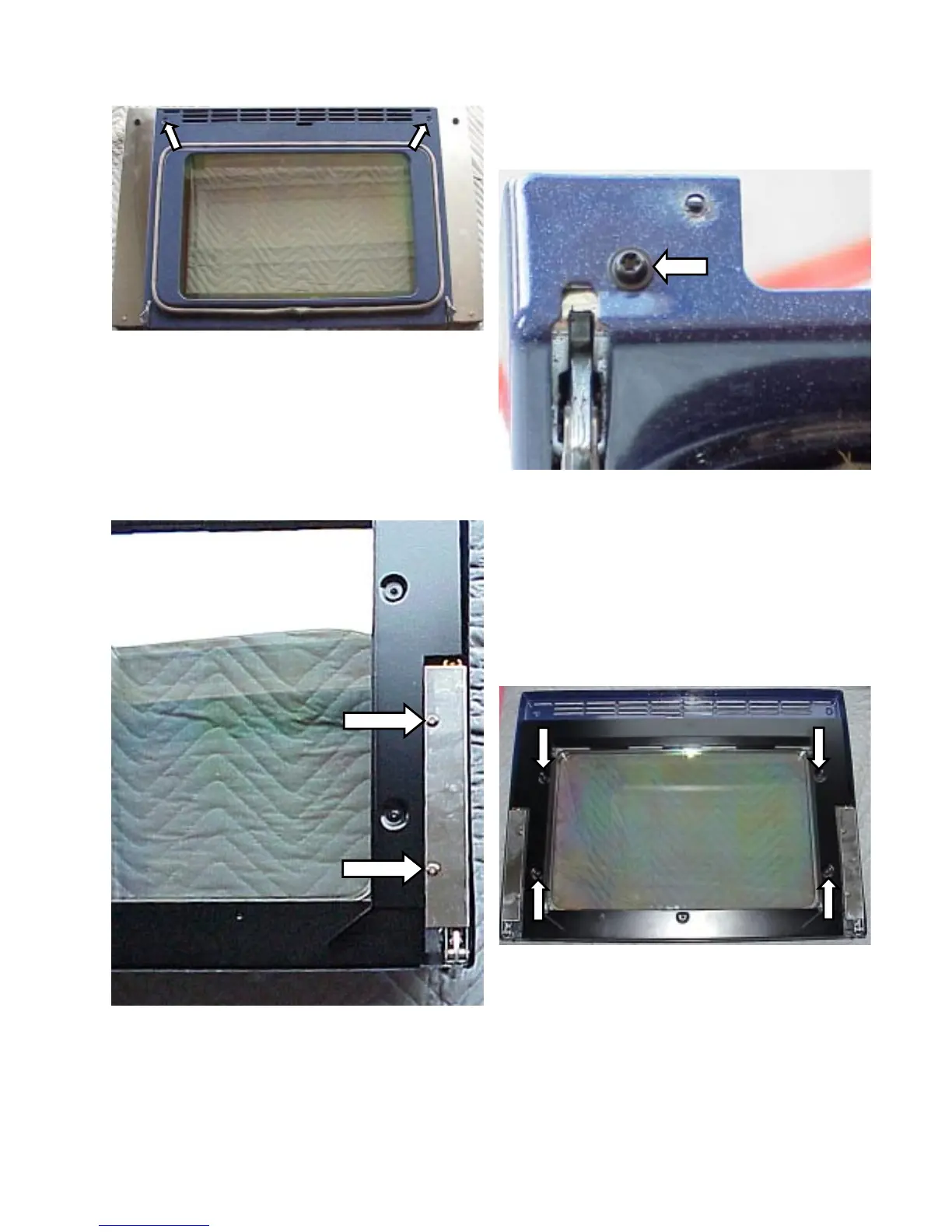

Removing the oven door cams and springs:
1. Remove the inner door liner assembly.
2. Remove the (2) screws holding the spring shield to
the inner liner and lift the spring shield off.
3. Remove the screw from the bottom of the inner liner
and lift the spring cam assembly out of the inner
liner.
Removing the oven door air directional
baffle:
1. Remove the inner door liner assembly.
2. Remove the (4) screws holding the air directional
baffle to the air baffle and lift the air directional baffle
off.
Removing the oven door air baffle:
1. Remove the air directional baffle.
