3 Connect the red appliance wire to the red (L2)
power supply wire in the junction box.

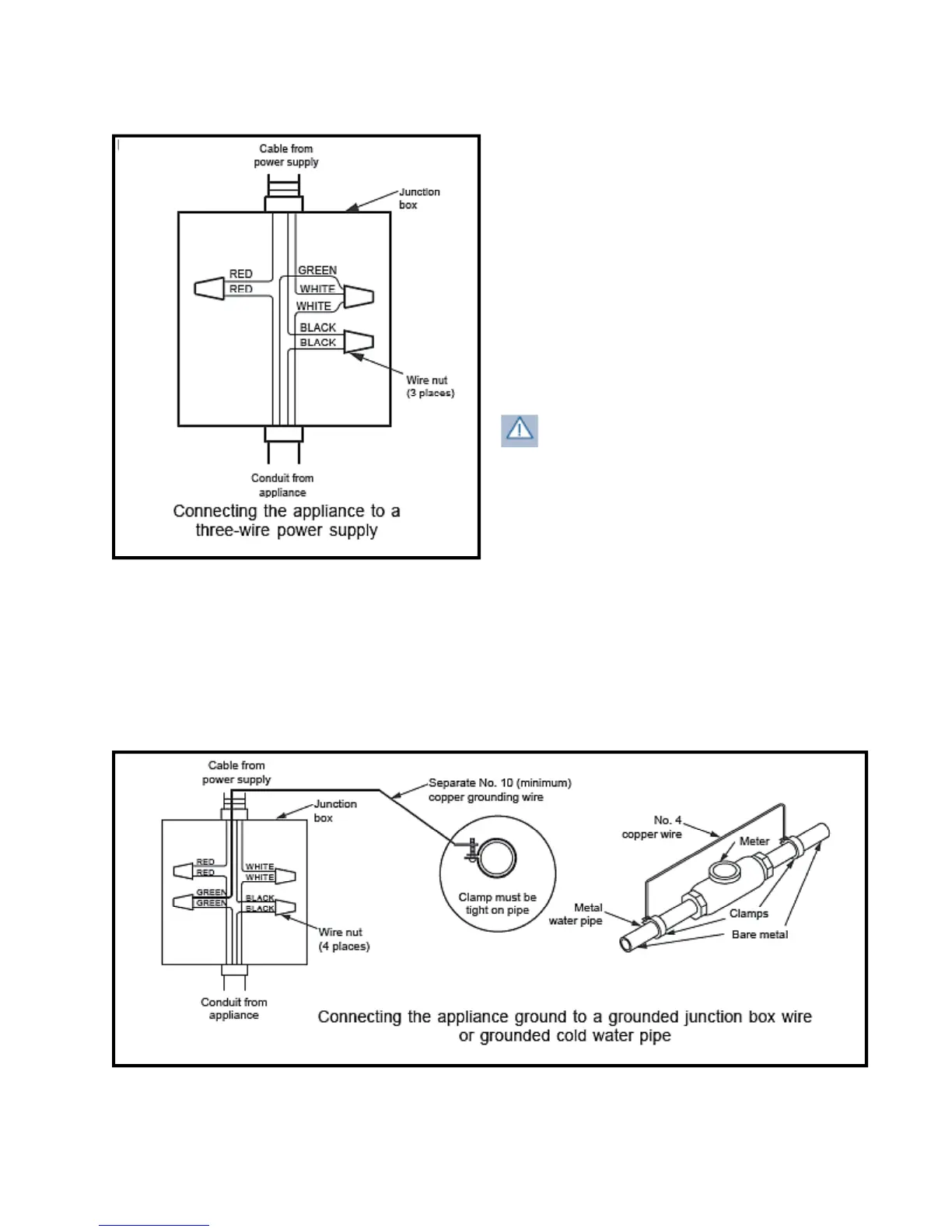

Connecting the Green Appliance Wire to a Grounded
Supply Wire or a Grounded Cold Water Pipe – Where
Local Codes Permit.
1 Separate the green and white appliance wires.
2 Connect the white appliance wire to the neutral
(white) supply wire in the junction box.
3 Connect the black appliance wire to the black (L1)
power supply wire in the junction box.
4 Connect the red appliance wire to the red (L2) power
supply wire in the junction box.
5 Connect the green appliance wire to a grounded
supply wire in the junction box or to a grounded cold
water pipe.
6 If connecting to a grounded cold water pipe, a
separate copper grounding wire (No. 10 minimum)
must be connected to a grounded cold water pipe
by means of a clamp and then to an external
grounding connector screw.
WARNING
• Do not ground the appliance to a gas supply
pipe or hot water pipe.
• Do not turn on power to the appliance until the
range is permanently grounded.
• A grounded cold water pipe must have metal
continuity to electrical ground and must not be
interrupted by insulating materials. Any
insulating materials must be jumped with a
length of No. 4 copper wire securely clamped
to bare metal at both ends.
