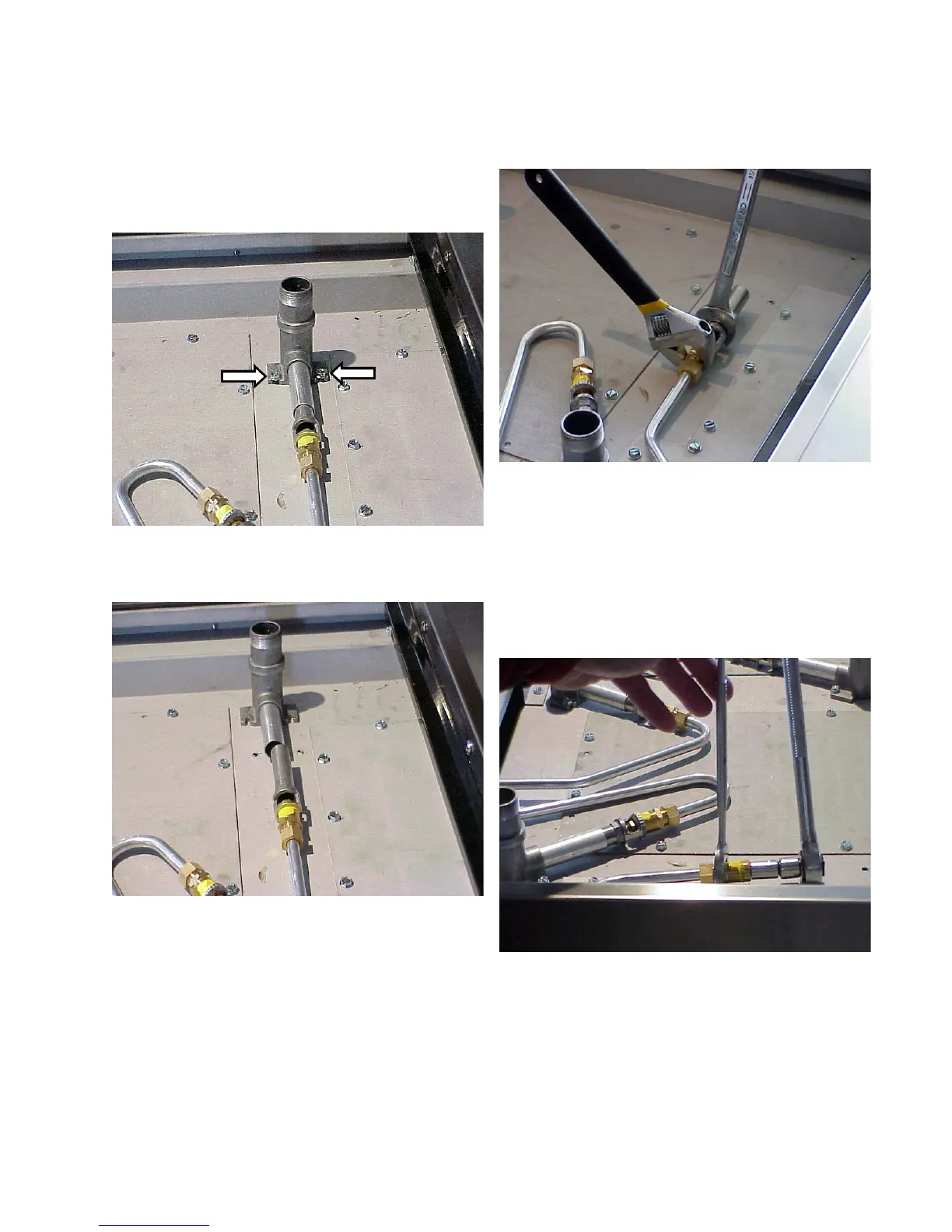

Removing the burner tube:
1. Remove the spill tray.
2. Using a 5/16 inch driver, removed the two screws
holding the burner tube to the burner box.
3. Slide the burner tube off of the air shutter tube.
Removing the air shutter tube:
1. Remove the spill tray and the burner tube.
2. Using two adjustable or 9/16 inch wrenches, hold
the orifice tube with one and turn the air shutter
tube off with the other.
Removing the orifice:
1. Remove the spill tray and the air shutter tube.
2. Using a 10 mm socket, remove the orifice from the
orifice assembly tube while holding the assembly
with a 9/16 inch wrench.
Removing the front spill tray support trim:
1. Remove the spill tray.
