75

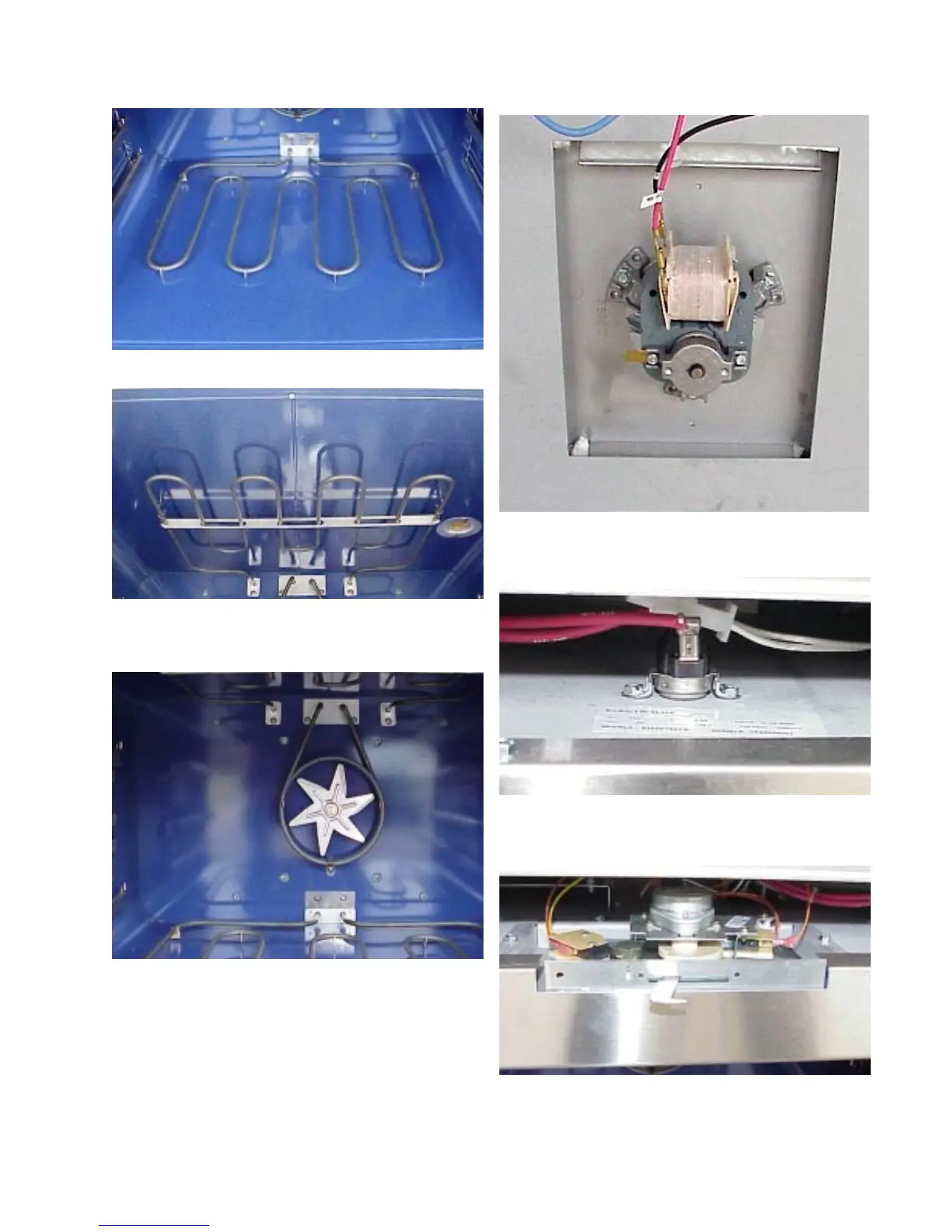

convection fan motor mounted to the rear of the oven,
oven high temp limit mounted between the burner box
and the top of the oven,
automatic door locking mechanism mounted between
the burner box and the top of the oven,
bake element mounted to the rear wall of the oven,
broil element mounted to the top of the oven,
convection element and fan blade mounted to the rear
wall of the oven,
74
76
Table of Contents
Safe Servicing Practices
2
Table of Contents
3
Service Failure Mode
8
Resistance Chart
9
Testing the Function and Temperature Selectors
10
Function Selector
10
Temperature Selector
10
Specifications
11
Inch Duel Fuel Freestanding Range
11
Smooth Glide on Racks
11
Four Burner, Interlocking Grates
11
Third Element, European Convictions System
11
Vantage Flame
11
Sealed Cooktop Spill-Basin
11
Control Panel Features
12
Cooktop
12
Oven Cavity
12
Additional Features
12
Accessories
12
Black Knobs
12
Backsplash
12
Cutout Dimensions
12
Inch Duel Fuel Freestanding Range
14
Smooth Glide on Racks
14
Six Burner, Interlocking Grates
14
Third Element, European Convictions System
14
Vantage Flame
14
Sealed Cooktop Spill-Basin
14
24" Optional Backsplash
14
Control Panel Features
15
Cooktop
15
Oven Cavity
15
Additional Features
15
Accessories
15
Black Knobs
15
Backsplash
15
Cutout Dimensions
15
Inch Duel Fuel Freestanding Range
17
Smooth Glide on Racks
17
Six Burner, Interlocking Grates
17
Third Element, European Convictions System
17
Vantage Flame
17
Sealed Cooktop Spill-Basin
17
24" Optional Backsplash
17
Control Panel Features
18
Cooktop
18
Large Oven Cavity
18
Small Oven Cavity
18
Additional Features
18
Accessories
18
Black Knobs
18
Backsplash
18
Cutout Dimensions
18
Sample Wiring Diagram of the Large Oven Section
20
Sample Wiring Diagram of the Small Oven Section
21
Sample Wiring Diagram of the Top Burner Section
22
Section a - Owners Guide
23
Safety
23
Safety Precautions
23
Definitions
23
General Precautions
23
Liquefied Petroleum (Propane) Gas Conversion
25
Features Overview
26
Model Features
26
Cooktop Features
27
Proper Burner Adjustments
27
Burner Locations
27
Sealed Burner Configurations
28
Brass Burner Rings
28
Burn Igniters
28
Control Knobs
28
Placement of Burner Grates
28
Flame Adjustment
29
Surface Cooking
29
Using the Griddle
30
Using the Wok Stand
30
To Properly Position the Wok Stand
31
Using the Simmer Plate
31
Setting Surface Controls
31
Operation
33
Before Cooking
33
Operating the Control Valves
33
Setting the Burner Flame Height
33
Energy Saving Tips
34
Getting Started
35
Installing and Removing the Oven Rack Supports
35
Removing and Replacing the Oven Racks
35
Arranging Oven Racks
36
Recommended Rack Position for Broiling, Baking and Roasting
36
Baking Layer Cakes with 1 or 2 Oven Racks
36
Air Circulation in the Oven
37
Companion Oven
37
Setting Oven Control
37
Selector Knob Function
37
Oven Functions
37
Cooking Instructions
38
Baking
38
Baking Problems
39
Convection Baking
40
Convection Roasting
40
Broiling
41
Broiling Times
42
Using the Self-Clean Feature
43
Starting the Oven Self-Clean Cycle
43
Cleaning Tips for Range Cooktop
44
Cleaning Stainless Steel Surfaces
45
Cleaning Knobs and Knob Bezels
45
Cleaning Burner Bases
45
Cleaning Burner Rings
46
Cleaning Burner Igniters
46
General Cleaning
47
Oven Light
48
To Replace the Oven Light
48
Solutions to Common Problems
49
Service Failure Mode Definitions
51
Sample Warranty
52
Section B - INSTALLATION INSTRUCTIONS
53
Safety
53
Definitions
53
Finding Information
54
Preparing for Installation
54
Gas Supply Requirements
54
Gas and Electric Requirements Table
54
Electrical Power Supply Requirements
55
Gas and Electrical Rough-In
55
Cabinet and Countertop Preparation
55
Cutout Dimensions
57
E36DF76EPS and E48DF76EPS Overall Dimensions Side View
58
E30DF74EPS Overall Dimensions Side View
59
Installing the Anti-Tip Bracket
60
Gas Regulator and Electrical Conduit Location
63
Installing Optional Backguards
64
Removing the Oven Door
65
Reinstalling the Oven Door
65
Making the Electrical Connections
66
Grounding Instructions
66
Connecting to a Four-Wire Electrical System
66
Connecting the Green Appliance Wire to the Neutral Supply Wire
66
Connecting the Green Appliance Wire to a Grounded
67
Supply Wire or a Grounded Cold Water Pipe
67
Making the Gas Connection
68
Installing the Range
68
Installing the Burner Components
68
Operation
69
Section C - Theory of Operation
70
Gas Flow
70
Top Burner Ignition and Reignition System
73
Oven Operation
74
Air Movement in the Oven During Convection Bake and Convection Roast
76
Cooling Blower Air Movement
77
The Self-Cleaning Cycle
78
Section D -Troubleingshooting
79
Index
79
Electrical Components will Not Operate
80
Flame too Large and Yellow on Top Burner
80
Flame too Small on Top Burner
80
Flame Goes Out, When Valve Is Turned to the Low Position
80
Top Burners, Not Burning Properly
80
One Top Burner, Not Burning Properly
81
Top Burner Valve Difficult to Turn
81
Igniters Do Not Spark When the Burner Knob Is Turned to the Lite Position
81
Igniters Spark but Burner Does Not Ignite
81
Igniters Continue to Spark after Burner Is Ignited
81
Oven Does Not Operate in any Fuction
82
Oven Does Not Operate in Bake
83
Oven Does Not Operate in Broil
84
Oven Does Not Heat in Convection Bake and Convection Fan Does Not Run
84
Oven Heats in Convection Bake but Convection Fan Does Not Operate
84
Oven Does Not Heat in Convection Bake but the Convection Fan Runs
85
Oven Does Not Heat in Convection Roast and Convection Fan Does Not Run
85
Oven Does Not Heat in Convection Roast but Convection Fan Runs
86
Oven Heats in Convection Roast but Convection Fan Does Not Operate
86
Leds Do Not Light
86
One LED Does Not Light
86
Cooling Fan Does Not Operate
86
Oven Does Not Operate in Self-Cleaning
87
One Oven Light Does Not Light
87
Both Oven Lights Do Not Light
87
Section E - Teardown
88
Removing the Grates
88
Removing the Burner Caps
88
Removing the Burner Rings
88
Removing the Burner Heads
88
Removing the Igniters
89
Removing the Knobs
89
Removing the Knob Bezels
90
Removing the Backsplash
90
Removing the Spill Tray
90
Removing the Burner Tube
91
Removing the Air Shutter Tube
91
Removing the Orifice
91
Removing the Front Spill Tray Support Trim
91
Removing the Front Spill Tray Support
92
Removing the Side Spill Tray Support
92
Removing the Burner Tube Assembly
92
Removing the Igniter Module
93
Removing the Electronic Oven Control Board
94
Removing the Oven Light Transformer
94
Removing the Oven High Temp Limit
95
Removing the Oven Door Handle
95
Removing the Oven Door
96
Removing the Oven Door Seal
96
Removing the Oven Door Inner Liner
96
Removing the Oven Door Cams and Springs
97
Removing the Oven Door Air Directional Baffle
97
Removing the Oven Door Air Baffle
97
Removing the Oven Door Glass Package Shield
98
Removing the Oven Door Glass Package
98
Removing the Oven Door Glass Package Seal
98
Removing the Air Intake Grill
98
Removing the Control Panel
99
Removing the Temperature Selector
99
Removing the Interface Board
100
Removing the Function Selector
100
Removing the Top Burner Igniter Switch
100
Removing the Top Burner Valve
100
Removing the Manifold Pipe
101
Removing the Kick Panel Assembly
101
Removing the Bake Element
102
Removing the Convection Filter Screen
102
Removing the Broil Element
102
Removing the Convection Baffle
103
Removing the Convection Fan Blade
103
Removing the Convection Element
103
Removing the Smoke Eliminator
103
Removing the Oven Sensor
104
Removing the Rack Support
104
Removing the Oven Light
104
Removing the Oven Latch Assembly
105
Removing the Pressure Regulator
105
Removing the Back Cover
105
Removing the Convection Fan Motor
106
Removing the Air Channel Cover
106
Removing the Air Channel
107
Removing the Cooling Fan Assembly
107
Removing the Cooling Fan Assembly Cover
107
Removing the Remove Oven Rack Switch
107
Removing the Pressure Regulator
108
Removing the Side Panel
108
Removing the Side Filler (36" Models)
109
Removing the Door Rollers
110
