4 Operating From a Personal Computer
Operation Guide Flatpack MCU,
351300.013, v8-2006-07
31
If the user selects “Yes” the values will be reset. The duration will be set to 0, while the average and peak current will
be set to the value of the load current at the time of the reset. After a Reset has been sent to the MCU, the values will be
updated automatically.

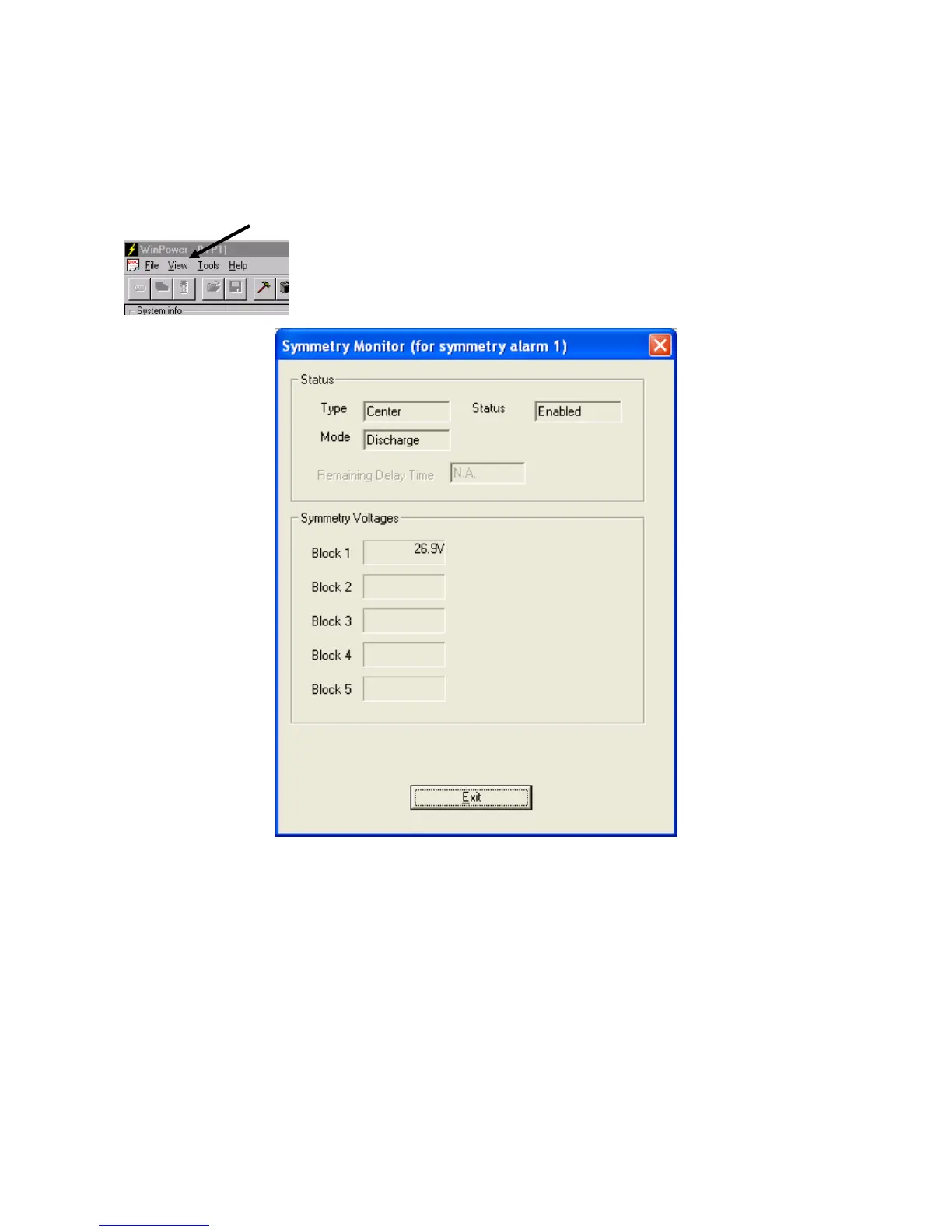

4.7.2 Symmetry Monitor
To open the Symmetry Monitor, select Symmetry Monitor on the View menu.
The Symmetry Monitor is an auto-updating window that shows you the current symmetry voltages, Type,
Status, Mode and Remaining delay time. (Symmetry is disabled in the picture above)
