4 Operating From a Personal Computer
Operation Guide Flatpack MCU,
351300.013, v8-2006-07
41

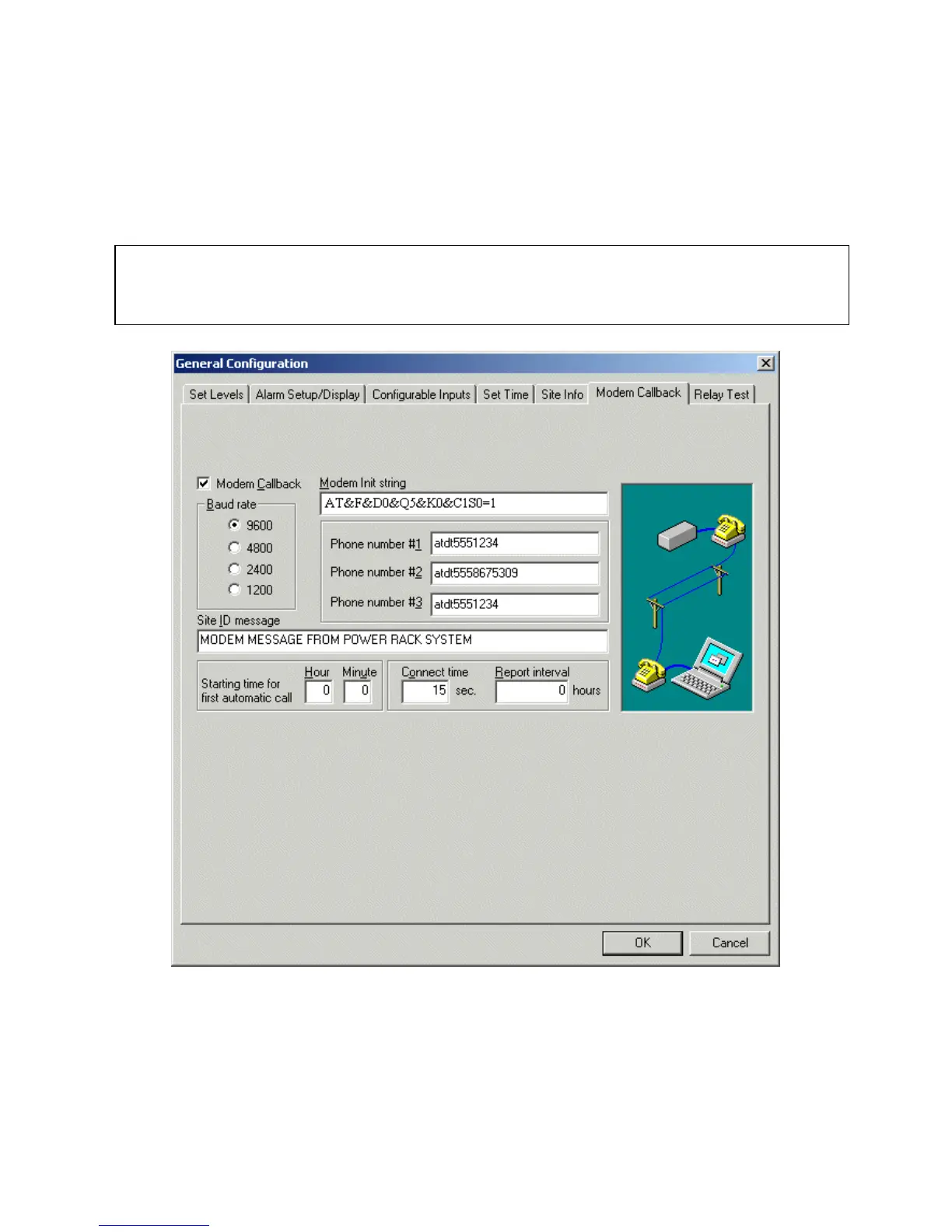

4.9.6 Modem Callback
This menu option initiates the modem callback function. The MCU has “standard callback”, “alarm callback” and
“interval/automatic callback” functionality. The Flatpack MCU will initiate a call when:
a) An alarm programmed to activate the modem callback is triggered
b) The Rectifier system has been called up from a remote location
c) An automatic call is scheduled, if enabled
• Modem callback
Tick here to enable the modem callback. The “Modem Callback” choice is a master enable/disable for any callback
functionality.
• Baud rate
Choose the appropriate baud rate between the Flatpack MCU and the modem, preferably as high as possible.
9 NOTE: When editing the settings in this screen, the previous configuration will be
overwritten.
