4.7 Other Main Menu options
4.7.1 Log Values dialog

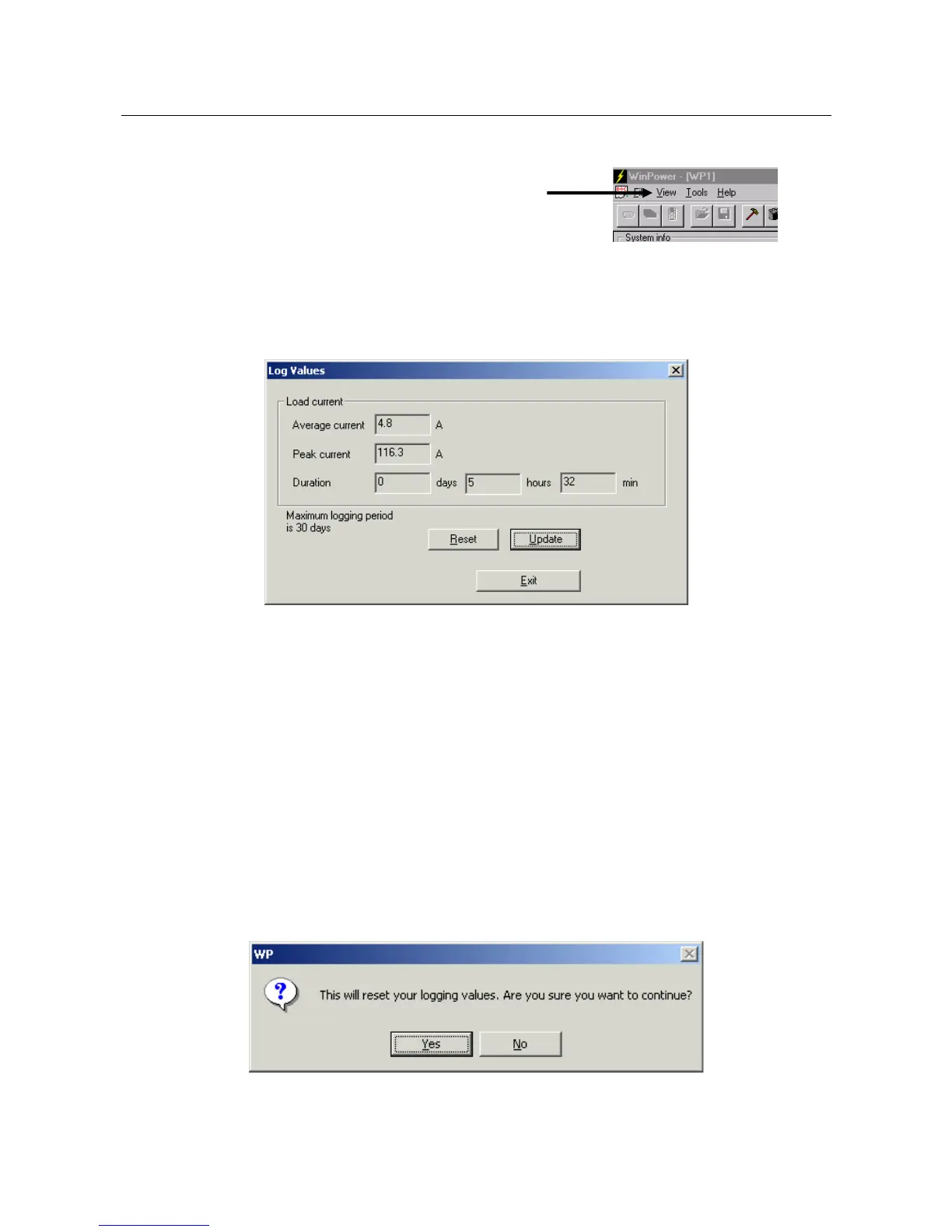

To open the Log Values dialog, select Log Values on the View menu.
The following information will be displayed
• Average current; the average load current over a period of time defined
by the Duration.
• Peak Current; the peak load current over the same period of time
• Duration; the logging period.
• Reset; Pressing the reset button will reset the logging values
• Update; Pressing the update button will send a request to the MCU to update the data
Average current
The average load current is updated every minute. Maximum logging period is 30 days. When this limit is reached, the
average current calculations will continue. Number of measurements will be fixed at 30 days, shifting out the oldest
values as new ones are added.
Peak current
Every minute, the peak value and the load current are compared. If the load current is higher than the peak current the
peak current is updated to the latest value of the load current.
Duration
The duration is updated every minute. Duration is presented as days, hours and minutes. Maximum logging period is 30
days. When this limit is reached, the average and peak current calculations will continue, but number of measurements
in the calculation will be kept to the last 30 days, shifting out the oldest measuring values as new ones are added.
Update values
When the Log Value dialog is opened, a Log Value request will be sent to the MCU to get the latest values. There is no
automatically update of the values when the window has been opened. To update the values again, the user has to press
Update.
Reset
Pressing the reset button can reset the logging values. The following dialog will appear:
