4 Operating From a Personal Computer
Operation Guide Flatpack MCU,
351300.013, v8-2006-07
59
4.11 Installation settings
The installation settings menu is only accessed when the system is set up at the factory, or when major system hardware
changes have been done in the field (added or changed hardware). Parameters such as system voltage and hardware
configuration are set in this menu. Access rights to edit these settings are only available to authorized personnel.
Unauthorized personnel are limited to read-only access. The installation menu is accessed from the initial screen
interface.

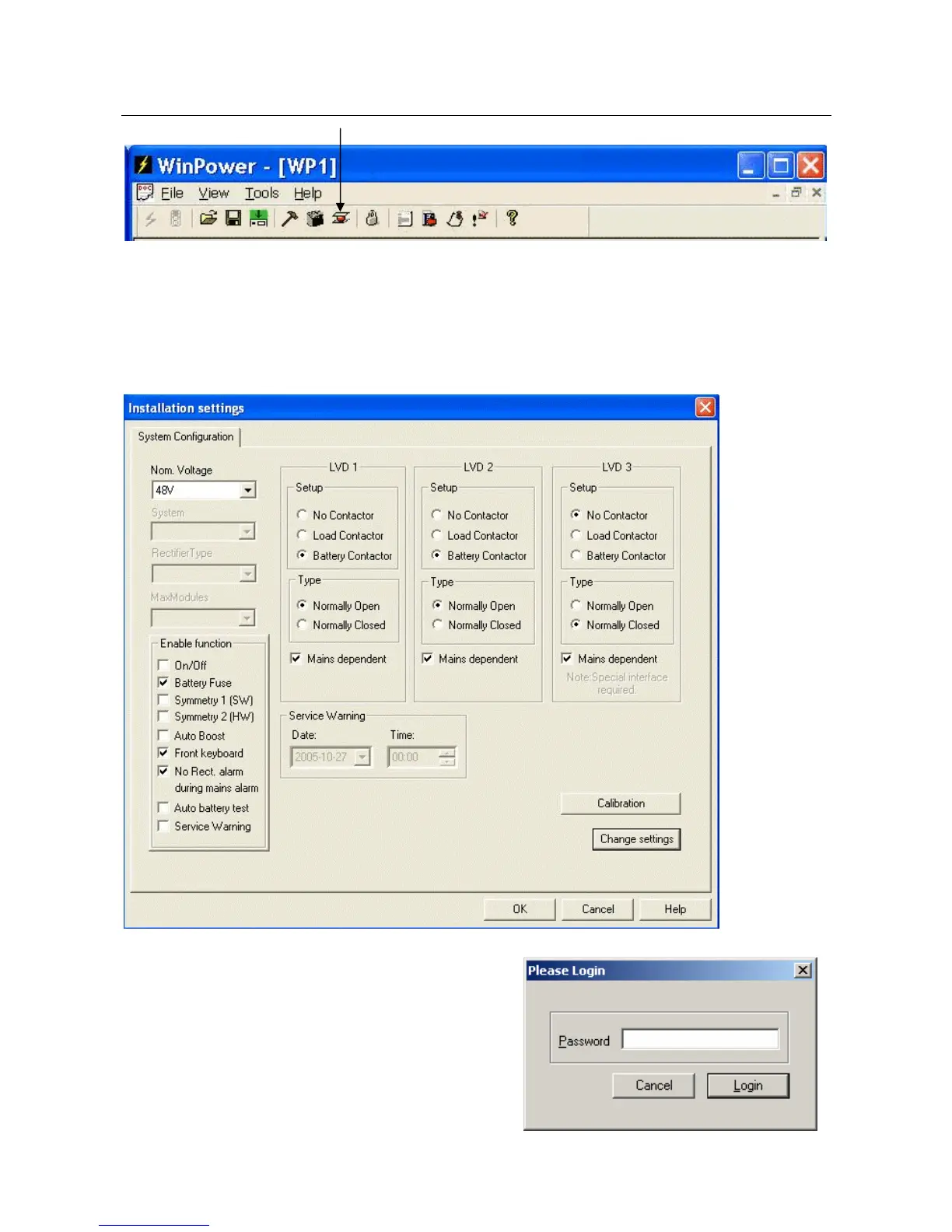

• Select Installation settings from the Main Screen
The Installation settings menu will then be displayed.
To gain access to the installation level:
• Select Change settings
• Enter the password (the INSTALLATION SETTINGS
password is generally only available to factory / system
installation personnel - contact Eltek Energy for this
password)
• Press Enter ↵ or Login
