Chapter 2 Product Introduction

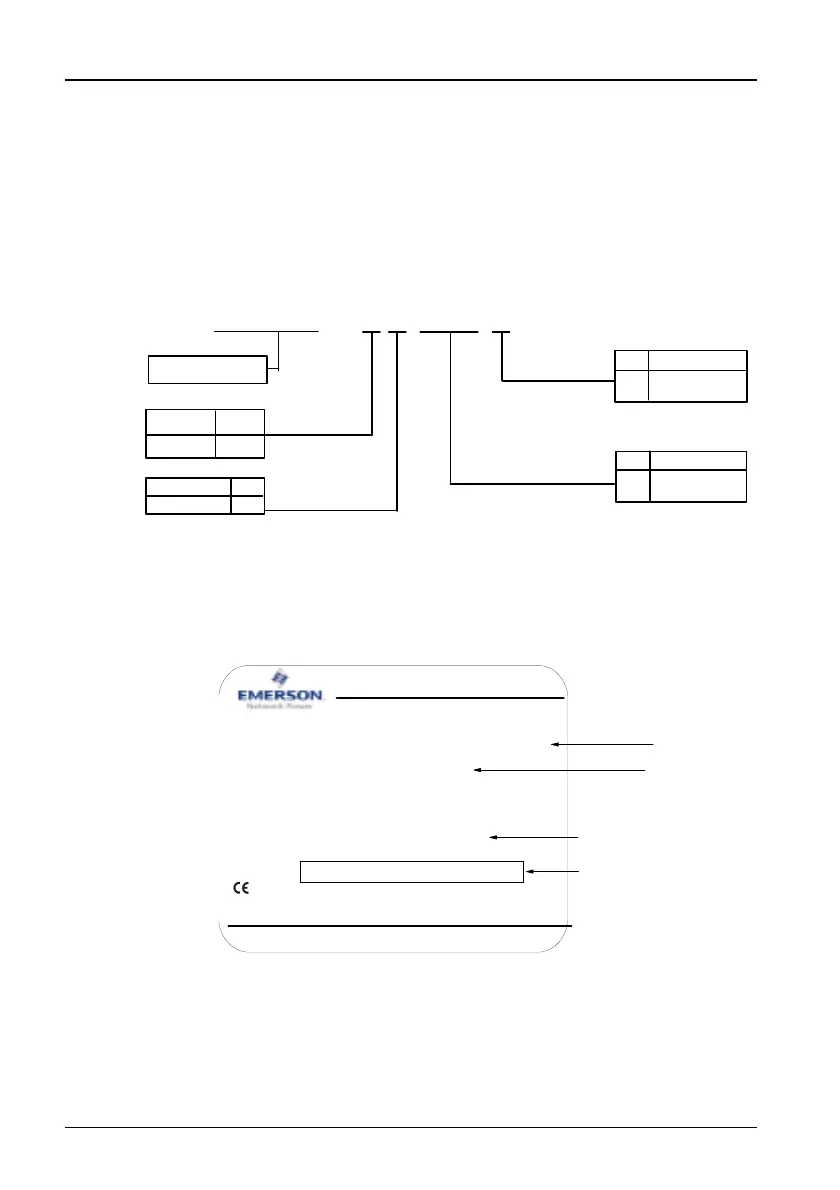

2.1 Model Designation Rules
TD3200 - 2 S xxxx D
Drive series
Code
Volt level
220V
2
Input Volt
Single-phase
Code
S
Code
D
Drive type
Used for
elevator door
Code
Motor power(kW)
0004
0002
0.4
0.2
2.2 Nameplate of Drive
The Nameplate is on the bottom right of the front keypad of the drive, as
shown in Figure 2-1.
TD3200-2S0002D
0.2kW
1PH AC 220V~240V
2.65A 50Hz/60Hz
3PH AC 0V~240V
0~400Hz 0.5kVA 1.3A
MODEL
POWER
INPUT
00
OUTPUT
S/N
Drive model
Motor capacity
Rated input voltage,Current
and frequency
Rated output capacity, current and
frequency range and voltage
Emerson Network Power Co., Ltd.
Bar code
Hot line: 800-820-6510
:
:
:
:
:
Figure 2-1 Nameplate of drive
