Emerson Network Power TD3200 Series User Manual

8 Chapter 2 Product Introduction
2.5 Optional Parts
2.5.1 Operation Keypad
The TDP-LED02 operation keypad is a standard part produced by Emerson
Network Power, as illustrated in Figure 2-2.

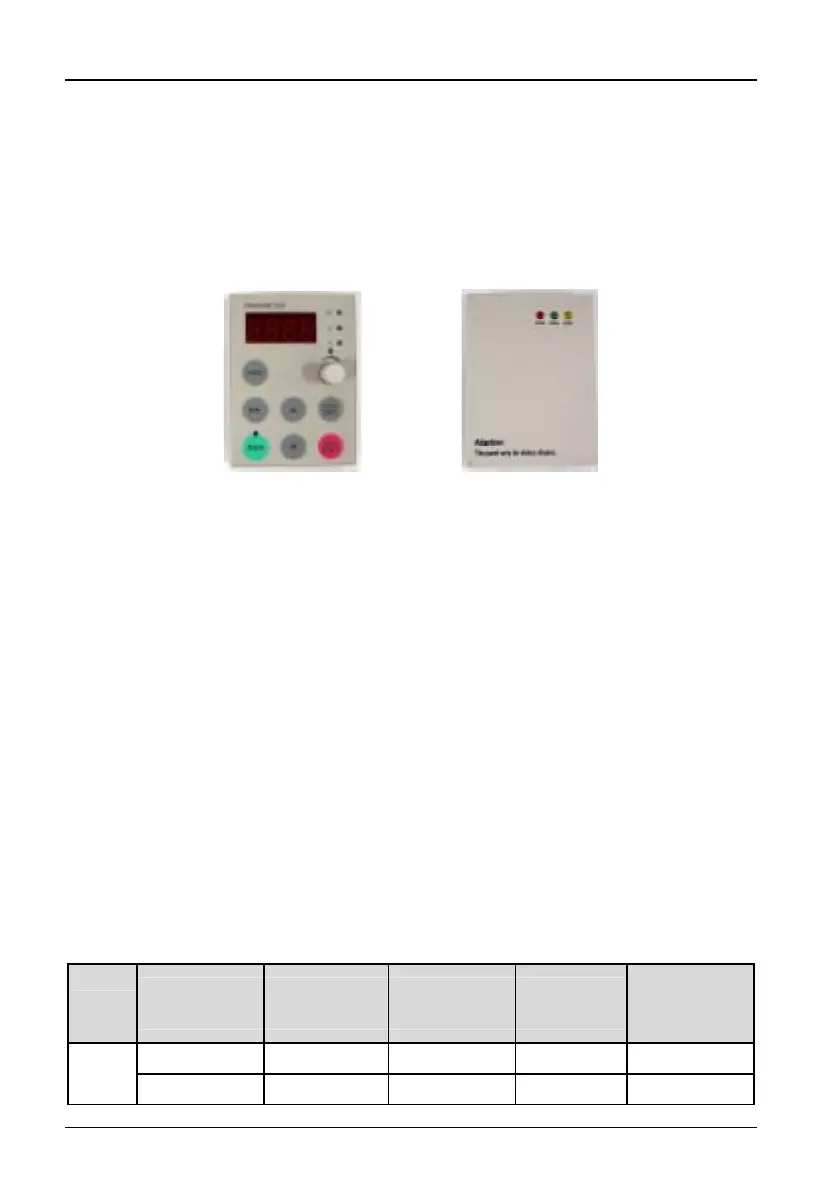

Figure 2-2 Operation keypad Figure 2-3 Status display unit
2.5.2 Display Unit
TDP-LED03 display unit is shown in Figure 2-3.
In case that several TD3200 drives are used in one site, to lower the cost,
you may use one operation keypad to set the parameters for all the drives.
However, each drive should be equipped with one TDP-LED03. Under this
condition, you can operate the drive only through control terminals, and
check basic operation status (Power-on, Run, fault) of the drive through the
display unit.
The dimensions of TDP-LED03 are the same with the operation keypad. The
red, green and yellow LEDs on it are to indicate basic states of the drive.
2.5.3 Braking resistors
The drive has a built-in brake unit. If dynamic braking is required, please
select the braking resistor with reference to the table below.
Voltage
Motor's Rated
Power
Braking
resistors
Utility of
braking unit
Braking
torque
Maximum
continuous
running time
0.2 kW
200
Ω
/ 80W 20(ED
％
) 100
％
30s
220V
0.4 kW
200
Ω
/ 80W 20(ED
％
) 100
％
30s
TD3200 Variable Speed Drive for Elevator Door Control User Manual
