48 Chapter 6 Parameter Descriptions
If F007 is set to 3600s, the OD delay, once triggered, will be maintained
endlessly. If F007 is set to 3599 or anything below, the OD delay will be
maintained as per the actual setting of F007.
F008 Delay time for CD terminal command
Range: 0~3600.0s
【
0.0s
】
F008 is to set the time interval from the CD command becoming invalid to the
end of holding time of complete CD state. If the holding time is equal or
greater than F008, the drive will stop. If the door is not closed to the position
completely and CD command is cancelled at that time, the drive will stop
immediately and the delay function is invalid.
If F008 is set to 3600s, the CD delay, once triggered, will be maintained
endlessly. If F008 is set to 3599 or anything below, the CD delay will be
maintained as per the actual setting of F008.
6.2 CD and OD Parameters
Let's take speed control 1 for example to explain the process of OD and CD.
The locations of various control contacts (operating switches) are shown in
Figure 6-4.
CD
CD varied-speed
contacts
OD varied-speed
contacts
OD position
limiting signal
OD
Location of complete
OD
Location of complete CD
OD position
limiting signal

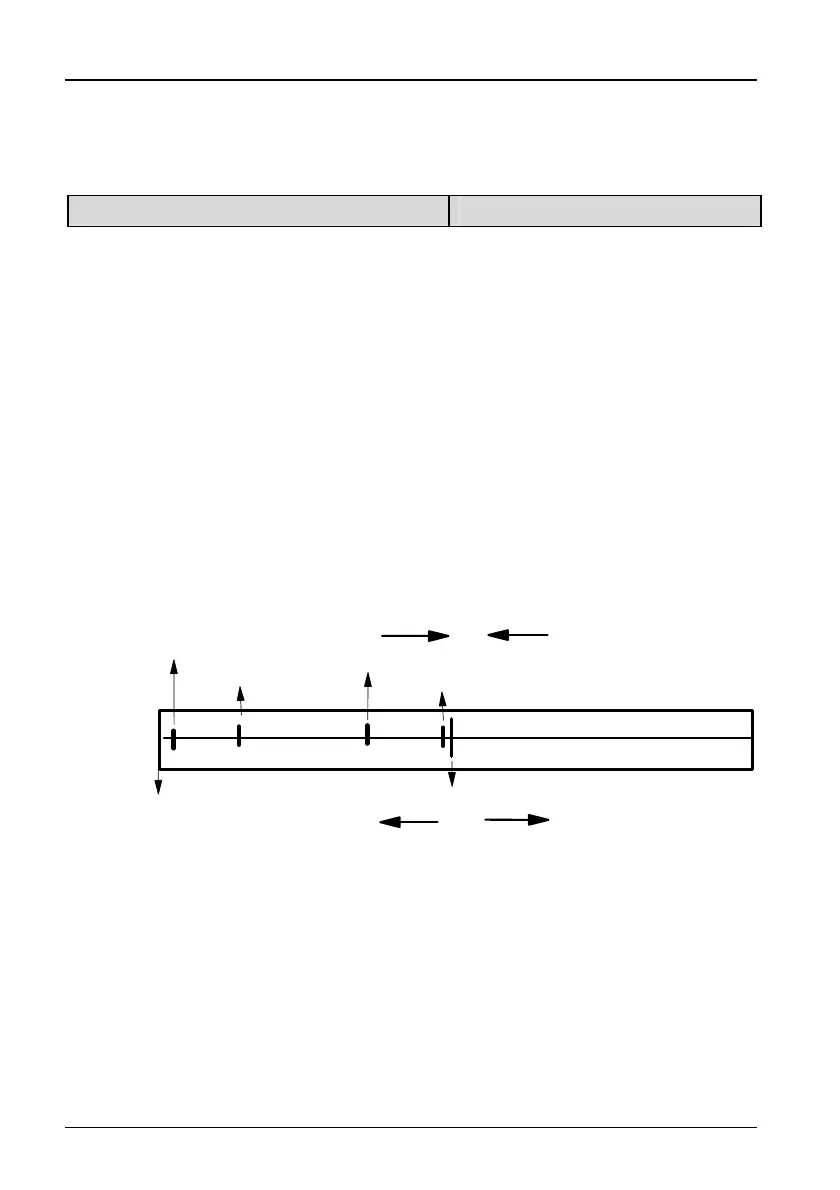

Figure 6-4 Varied-speed contacts for speed control 1
Set the function parameters from F010 to F040. Define the varied-speed
contacts and position limiting signal accurately. Operating curve is illustrated
in Figure 6-5 and Figure 6-6.
TD3200 Variable Speed Drive for Elevator Door Control User Manual
