Chapter 3 Installation and Wiring 11
W
D
A
B
H

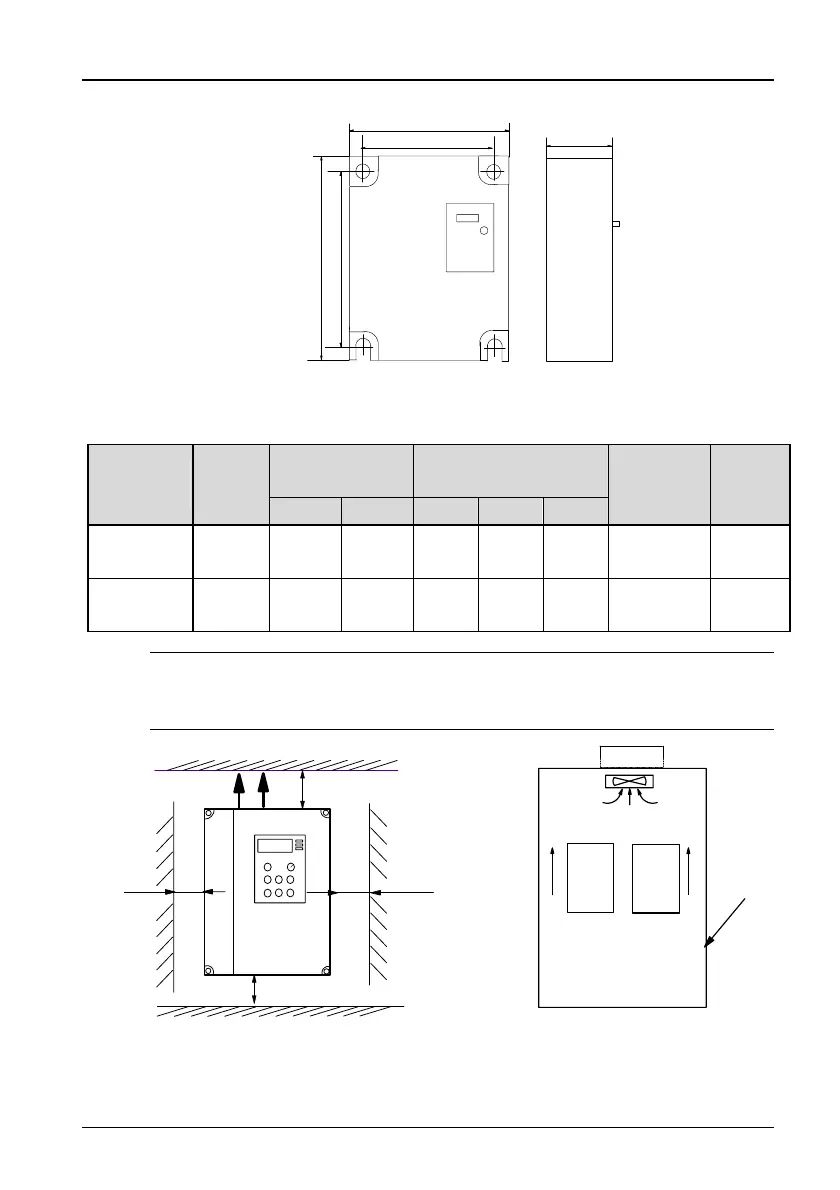

Figure 3-2 Dimensions
Table 3-1 Outline & Dimensions
Installation
dimensions
Outline dimensions Drive's
model
Motor
power
(kW)
A(mm) B(mm) H(mm) W(mm) D(mm)
Diameter of
mounting
hole(mm)
Weight
(kg)
TD3200-
2S0002D
0.2 91 137 145 101 130 4 1.2
TD3200-
2S0004D
0.4
Note
To attain IP20 protection level, you should select display unit or the operation
keypad.
above 100mm
above
50mm
above
50mm
above 100mm
air expulsion
by fan
drive
Ⅰ
drive
Ⅱ
electric
cabinet
...
Figure 3-3 Clearance Figure 3-4 Installing several drives together
TD3200 Variable Speed Drive for Elevator Door Control User Manual
