14 Mounting CG Drives & Automation 01-7492-01r1
Recommended for AC drive cabinet
models -430 to - 3K0

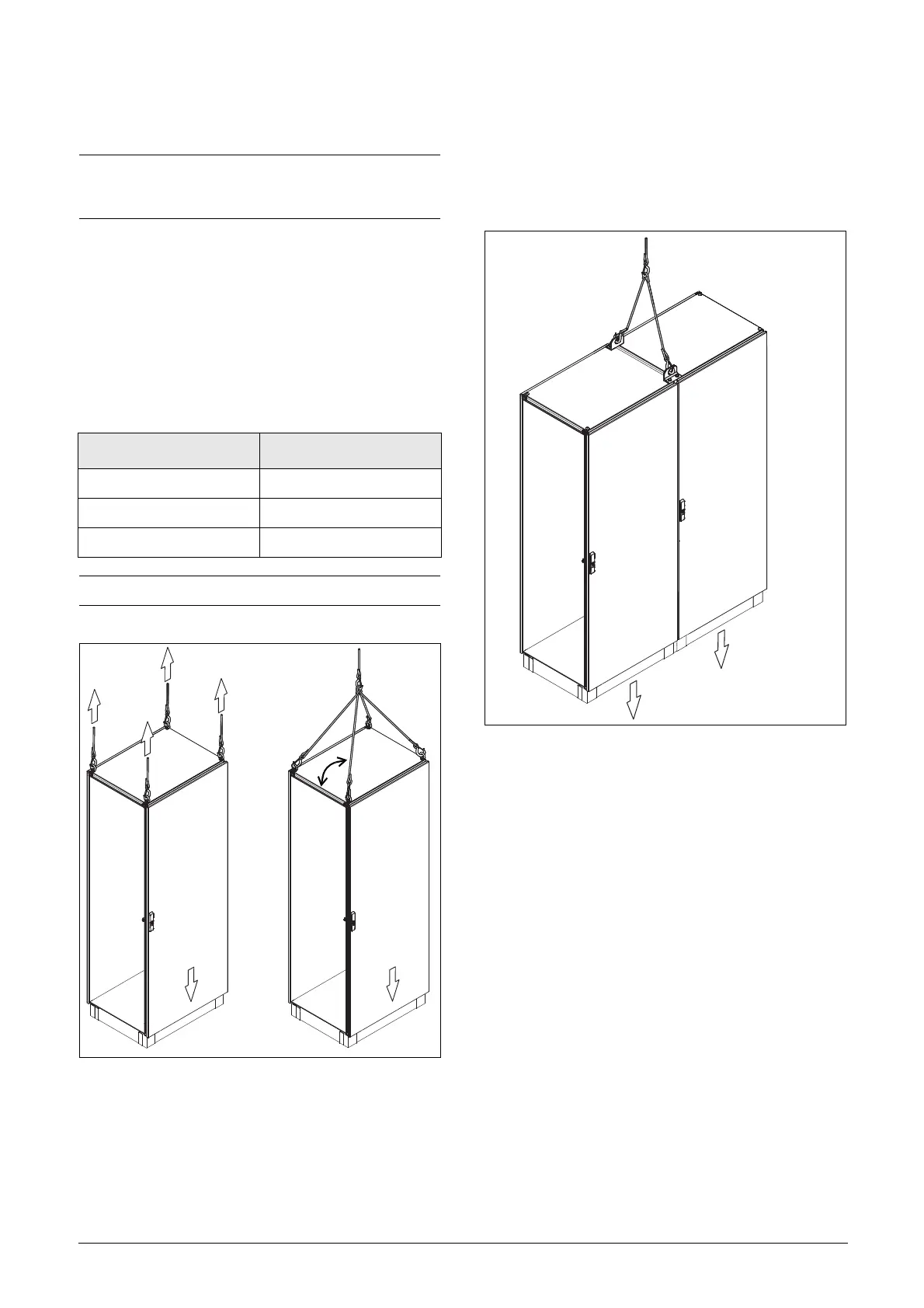

Transport by crane
All enclosures are suitable for transporting by crane, either as
free-standing enclosures or as bayed suites.
With eyebolts
Individual enclosures are safely transported using the
eyebolts.
For symmetrical loads, the following maximum permissible
overall loads apply:
Fig. 5 Lifting enclosures with eyebolts.
With combination angle
For the enclosure combination with internal baying brackets
and combination angles shown here, the load capacity with a
cable pull angle of 60° is as follows:
F1 = 7000 N
F2 = 7000 N
Fig. 6 Enclosure combination with internal brackets.
Note: To prevent personal risks and any damage to the
unit during lifting, it is advised that the lifting methods
described below are used.
Cable/chain angle A Permitted load (F)
45 ° 4 800 N (1080 lbf)
60 ° 6 400 N (1439 lbf)
90 ° 13 600N (3057 lbf)
Note: Calculated load F as F [N] = m [kg] x 9.81.
F
F
F
F
F
F
