CG Drives & Automation 01-7492-01r1 Operation via the Control Panel 81

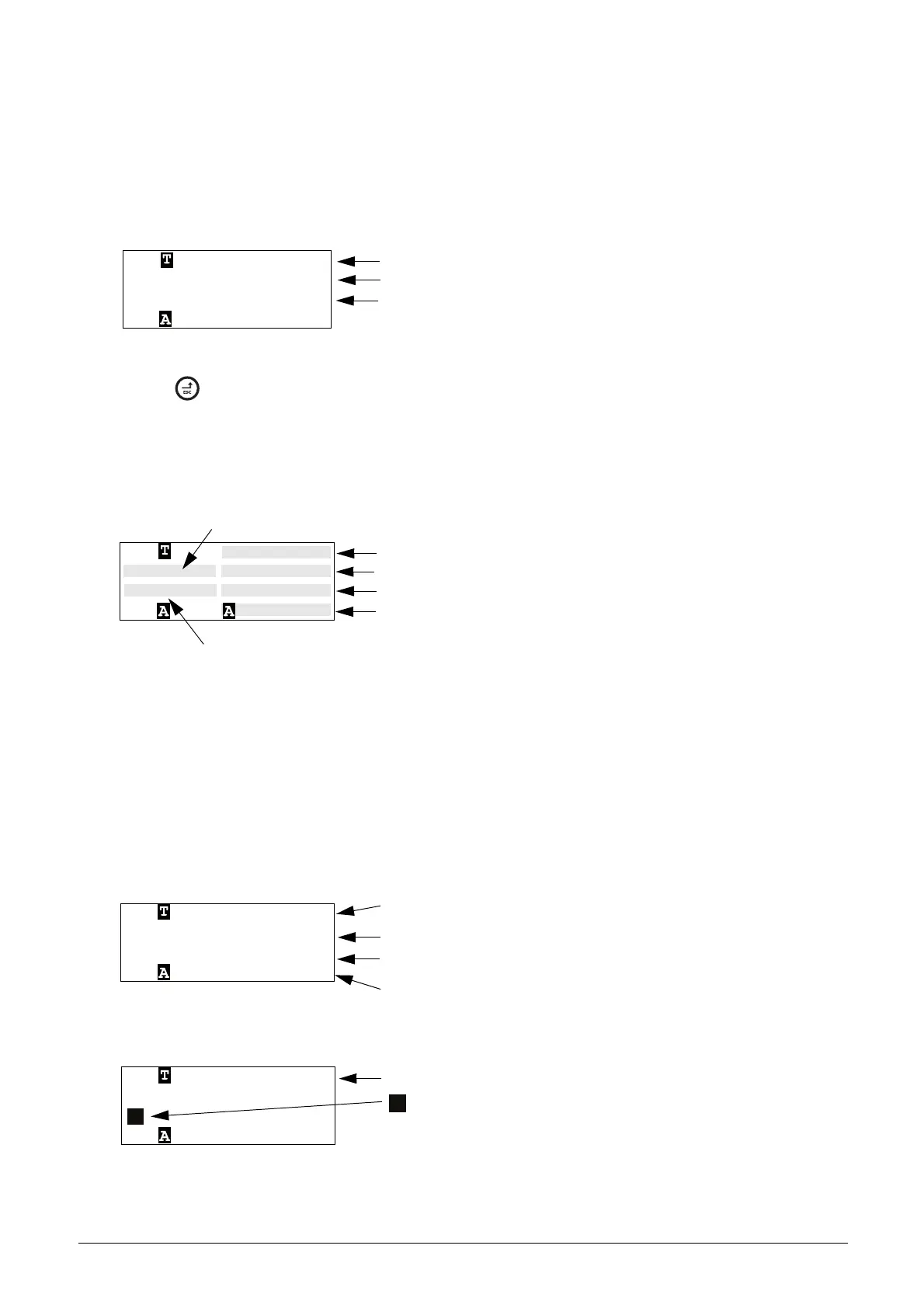

10.2.2 Menu [100] Start Window
This menu is displayed at every power-up. During
operation, the menu [100] will automatically be displayed
when the keyboard is not operated for 5 minutes.
Menu “[100] Start Window” displays the settings made in
menu “[110], 1st line”, “[120], 2nd line” and
“[130], 3rd line”.
Extended signal monitoring
If you hold the key when in menu [100] following
window will appear, as long as the key is pressed.
Here First, Second and Third line are shown as selected in
menu [100].
Then additional information will be displayed, selected in
the menus [140], [150] and [160] according to below.
Use menu “[170] View mode” to select active type of
menu [100] presentation, select if “Normal 100” or
“Always 100+” Extended signal monitoring” shall be
shown at power-up. A third choice is menu
“Normal100wo” = menu [100] without explaining text
at second and third line.
10.2.3 Editing mode
All other menus (read and read/write menus) are used in
following way.
During editing, preferred view will not be displayed and the
cursor will appear blinking to the left. See also below.
100 1240rpm
Torque 0% 0.0Nm
Current 123.3A
Sby Key/Key
First line - set in Menu [110].
Second line - set in Menu [120]
Third line - set in Menu [130]
100 0rpm
3.9V 0.0A
0.0°C 0.0Hz
Sby /Rem/Rem/--
First line - set in Menu [110].
Second line - set in Menu [120].
Third line - set in Menu [130].
Fourth line - set in Menu [140]
Sixth line - set in Menu[160]
Fifth line - set in Menu[150].
221 1240rpm
Motor Volts
M1 380V
Run Key/Key
Shows Menu number to the left and to the right signal selected
Shows menu name to the left
Shows menu value to the right and if it is a Motor parameter active
Shows Drive status/Parameter set and Control source as in menu [100]
in menu [110].
Motor set (M1 in this case) is displayed to the left.
211
Language
English
Run Loc/Loc
Preferred view is not shown during editing.
= blinking during editing
