3.3.1 Connection of mains and
motor cables on IP20 modules
The Emotron IP 20 modules are delivered complete with
factory mounted cables for mains and motor. The length of
the cables are app. 1100 mm (43 in). The cables are marked
L1, L2, L3 for mains connection and U, V, W for motor
connection.
For detailed information about use of the IP20 modules,
please contact CG Drives & Automation.

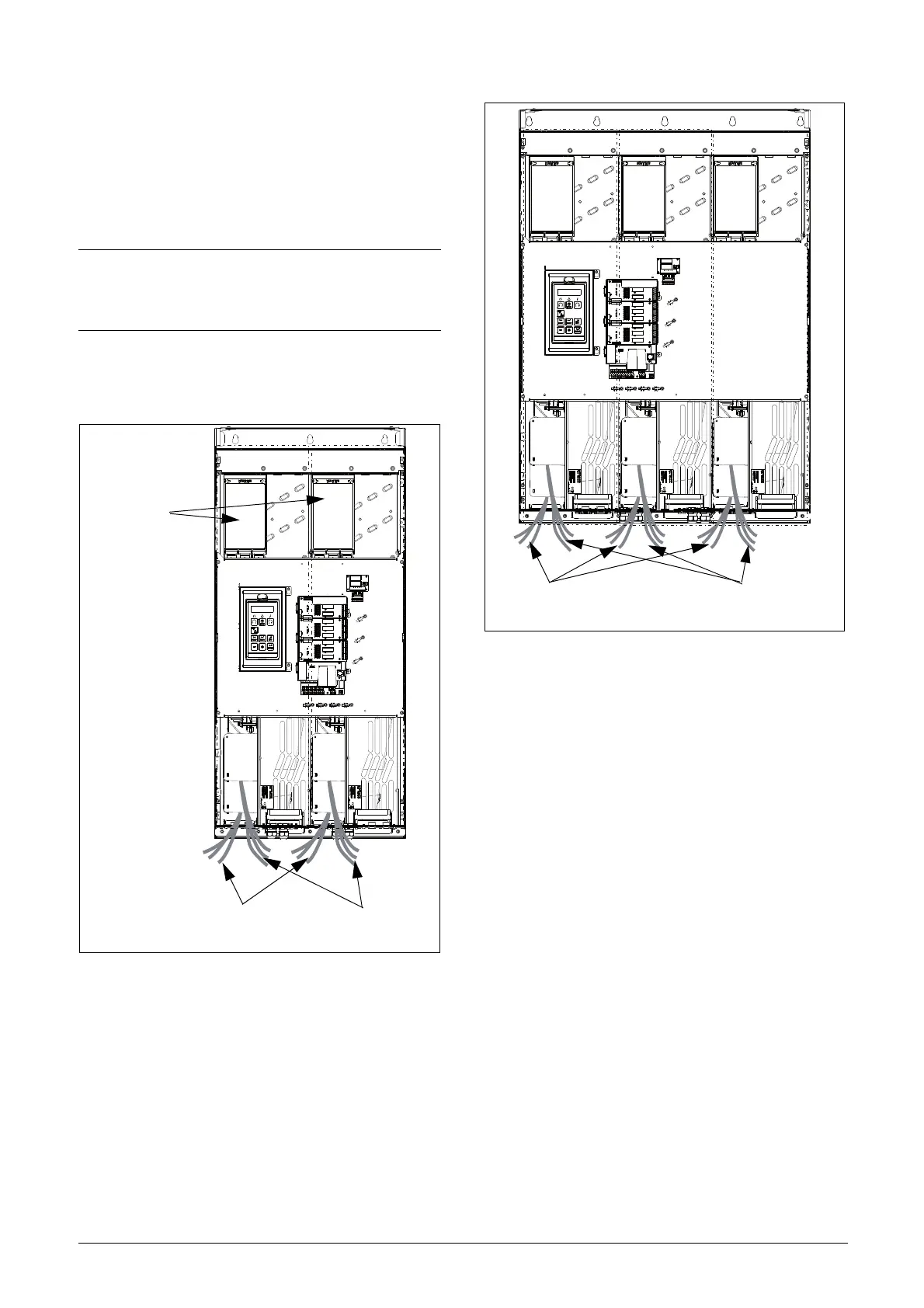

Fig. 57 IP20 module sizes H, H2 and G2 with qty 2 x 3
mains cables and qty 2 x 3 motor cables.
Fig. 58 IP20 module sizes G3/H3/I69 with qty 3 x 3 Mains
cables and qty 3 x 3 motor cables.
NOTE: The IP20 modules are connected to PE/
Ground via the mounting screws. Make sure that
these will have good contact to the grounded
mounting plate/ cabinet wall.
PEBB 1
(Master)
PEBB 2
Mains cables
Motor cables
U, V, W
L1, L2, L3
DC-, DC+, R
(optional)
PEBB 1
(Master)
PEBB 2
PEBB 3
Mains cables
Motor cables
L1, L2, L3
U, V, W
