CG Drives & Automation 01-7492-01r1 Mounting 13
2. Mounting
This chapter describes how to mount the AC drive.
Before mounting it is recommended that the installation is
planned out first.
• Be sure that the AC drive suits the mounting location.
• The mounting site must support the weight of the AC
drive.
• Will the AC drive continuously withstand vibrations
and/or shocks?
• Consider using a vibration damper.
• Check ambient conditions, ratings, required cooling air
flow, compatibility of the motor, etc.
• Know how the AC drive will be lifted and transported.

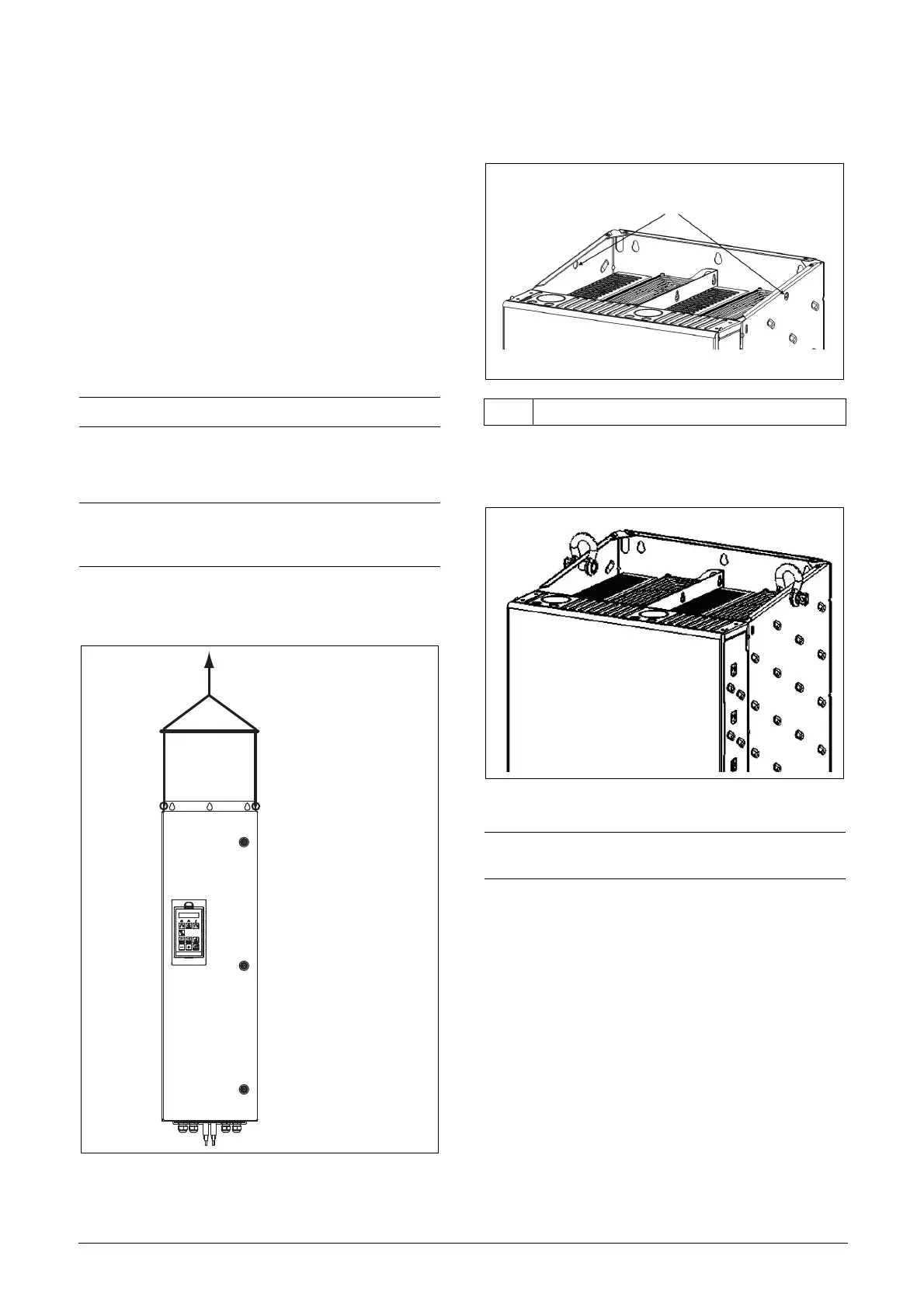

2.1 Lifting instructions
Recommended for IP 54 AC drive
models -090 to -365
Fig. 2 Lifting IP 54 AC drive model -090 to -365.
Recommended lifting points for IP 20
modules size H/H69 and up
Fig. 3 Lifting holes.
Fig. 4 Lifting holes with lifting shackles.
Note: IP20 units are intended for cabinet mounting.
Note: To prevent personal risks and any damage to
the unit during lifting, it is advised that the lifting
methods described below are used.
Load: 56 to 95 kg
(123 - 202 lbs)
1 Hole diameter =17 mm (x2)
Note: Lifting shackles not included in the drive
delivery.
