10.6 Copy current parameter
to all sets
When a parameter is displayed, press the Enter key for
5 seconds. Now the text To all sets? is displayed. Press Enter
to copy the setting for current parameter to all sets.
10.7 Programming example
This example shows how to program a change of the Acc.
Time set from 10.0 s to 12.0 s.
The flashing cursor indicates that a change has taken place
but is not saved yet. If at this moment, the power fails, the
change will not be saved. Use the ESC, Prev, Next or the
Toggle keys to proceed and to go to other menus.

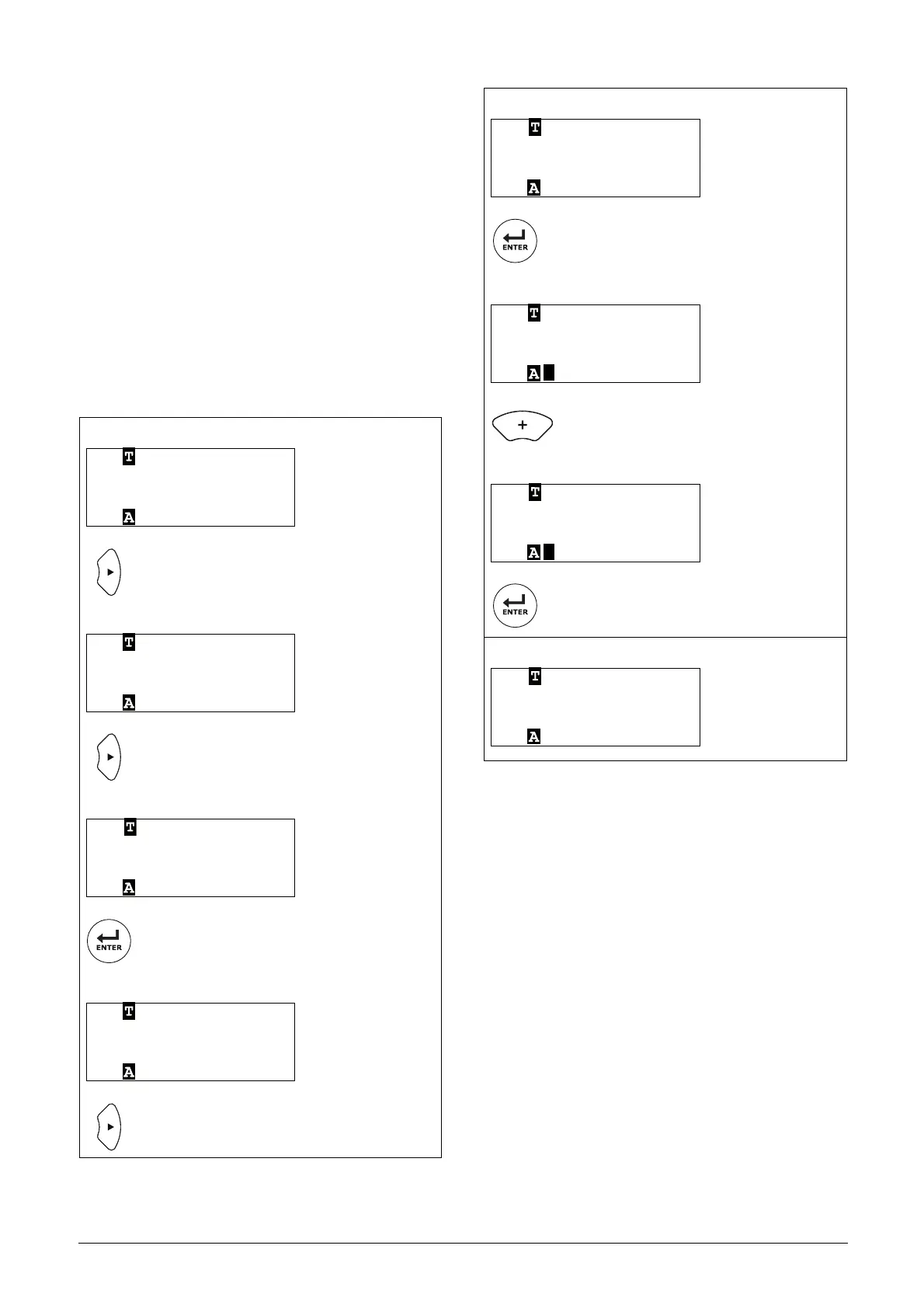

Fig. 89 Programming example
Menu 100 appears
after power-up.
Press “Next” key for
menu [200].
Press “Next” key for
menu [300].
Press “Enter” key
for menu [310].
Press “Next” key
twice for menu
[330].
100 0rpm
Torque 0% 0.0Nm
Current 0.0A
Stp Key/Key
200 0rpm
Main setup
Stp Key/Key
300 0rpm
Process
Stp Key/Key
310 0rpm
Set/View ref
0rpm
Stp Key/Key
Press “Enter” for
menu [331].
Press “+” key
Keep “+” key
pressed until
desired value has
been reached.
Save the changed
value by pressing
“Enter” key.
330 0rpm
Start/Stop
Stp Key/Key
331 0rpm
Acc Time
10.0s
Stp Key/Key
331 0rpm
Acc Time
12.0s
Stp Key/Key
331 0rpm
Acc Time
12.0s
Stp Key/Key
