202 Options CG Drives & Automation 01-7492-01r1

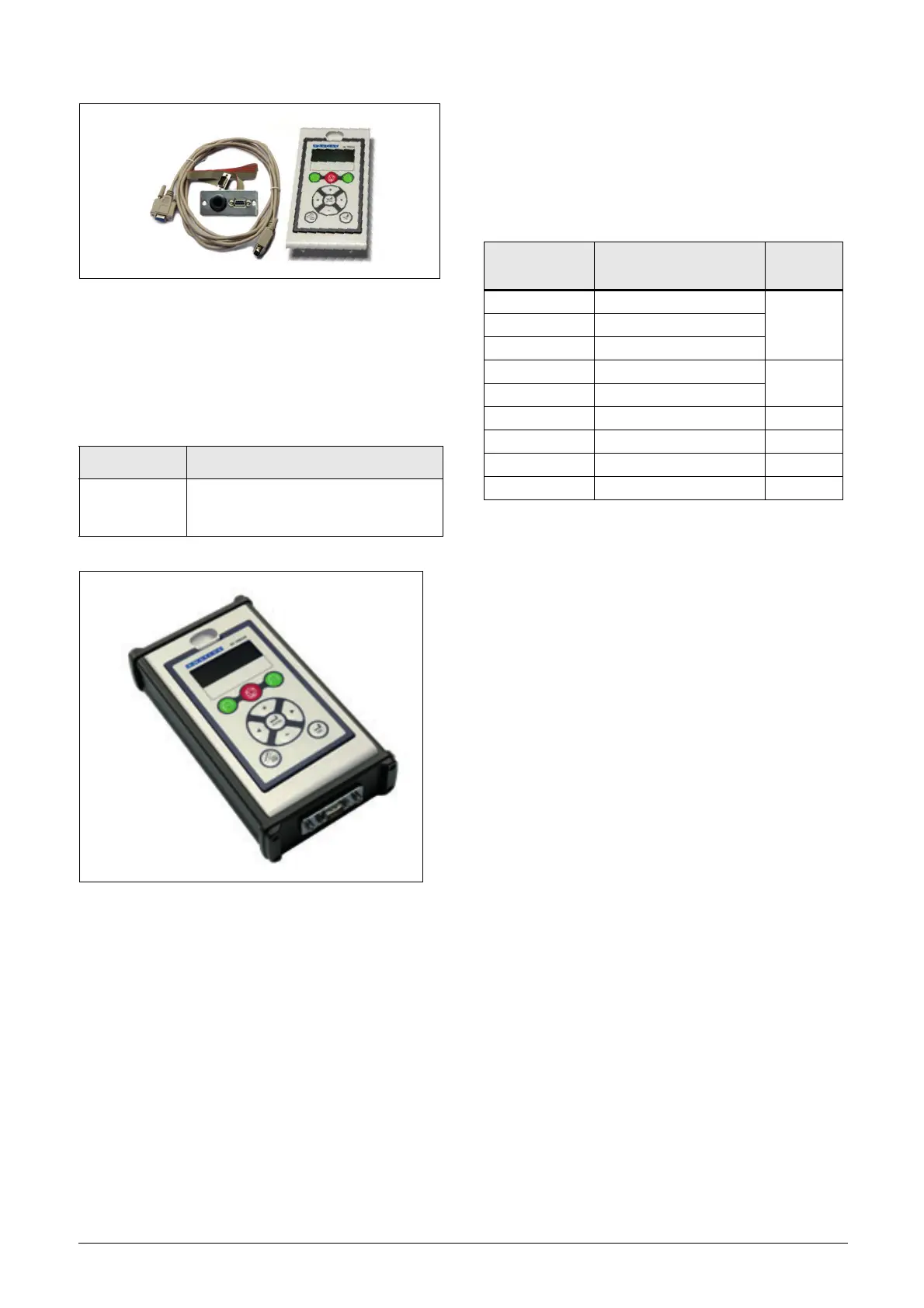

Fig. 157 Control panel kit, including control panel.
External control panel IP54 suitable for mounting on a
panel door. This option is to be used in combination with
an AC drive module ordered with a blank control panel.
13.3
Handheld Control Panel 2.0
Fig. 158 Handheld Control Panel 2.0 (4-line Control Panel).
The Handheld Control Panel - HCP 2.0 is a complete
control panel, easy to connect to the AC drive, for
temporary use when e.g. commissioning, servicing and so
on.
The HCP has full functionality including memory. It is
possible to set parameters, view signals, actual values, fault
logger information and so on. It is also possible to use the
memory to copy all data (such as parameter set data and
motor data) from one AC drive to the HCP and then load
this data to other AC drives.
13.4 Gland kits
Gland kits are available for frame sizes B, C and D.
Optional gland kits are available for IP54 frame sizes B, C,
D, C69 and D69.
Metal EMC glands are used for motor and brake resistor
cables.
13.5 EmoSoftCom
EmoSoftCom is an optional software that runs on a personal
computer. It can also be used to load parameter settings
from the AC drive to the PC for backup and printing.
Recording can be made in oscilloscope mode. Please contact
CG Drives & Automation sales for further information.
13.6 EmoDrive App
The EmoDrive App can be used with mobile devices such as
smartphones and tablets. It isa versatile commissioning and
maintenance online and offline tool including all main
functions as included in the EmoSoftCom PC-tool. E.g.
parameter settings save and restore, signal and fault logger
monitoring, oscilloscope function and commissioning
report, but also for day-by-day status check of your
application.
File formats are identical to EmoSoftCom, allowing files to
be used in both tools.
The EmoDrive App has support for both Bluetooth (BLE)
and WiFi type of communications. Communication port in
FDU/VFX 2.1 drive is available via an optional type (BLE/
WiFi) of drive control panel (PPU).
The EmoDrive App works with both IOS systems (iPhone/
iPad, App Store) as well as Android system phones and
tablets (Play Store).
Part number Description
01-5039-30
Handheld Control Panel 2.0 complete for
FDU/VFX2.0/2.1 or CDU/CDX 2.0/2.1
including 4-line control panel
Part Number Current (dimension)
Frame
size
01-4601-21 3 - 6 A (M16 - M20)
B01-4601-22 8 - 10 A (M16 - M25)
01-4601-23 13 - 18 A (M16 - M32)
01-4399-01 26 - 31 A (M12 - M32)
C
01-4399-00 37 - 46 A (M12 - M40)
01-4833-00 61 - 74 A (M20 - M50) D
01-7248-00 2 - 10 A (M20 - M25) C69
01-7248-10 13 - 25 A (M20 - M32) C69
01-7247-00 33 - 58 A (M20 - M40) D69
