3.1.2 Remove/open the lower front
cover on Frame size E2, F2
and FA2 (IP20/21)

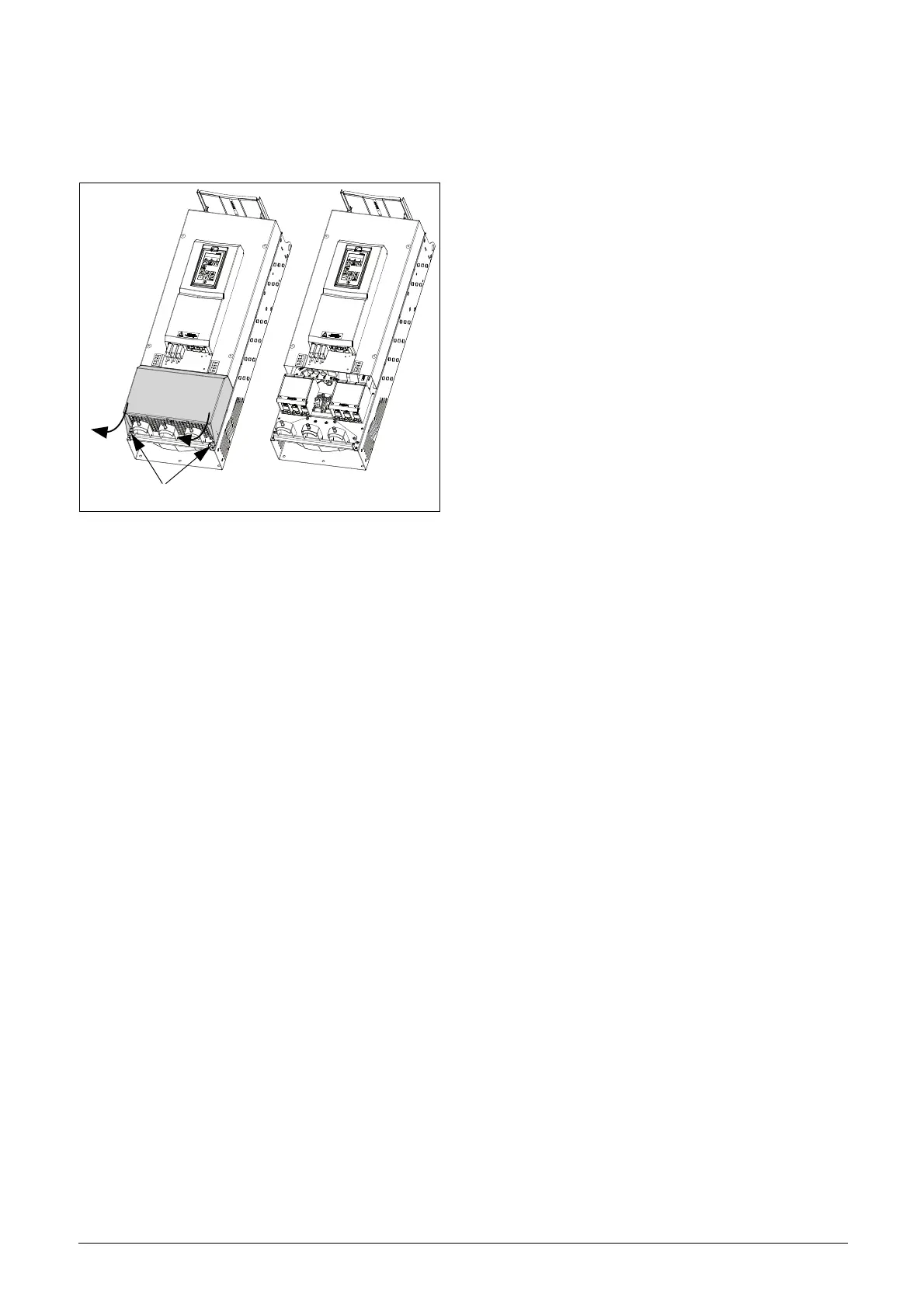

Fig. 36 Loosen the two screws and remove the lower cover
(principle drawing).
In order to access the mains, motor, DC+/DC- and brake
terminals, remove the lower cover in following order
• Loosen the two screws B (see fig. 36).
• Pull down the cover a bit and lift it away.
3.2 Cable connections for
small and medium frame
sizes
IP54 - VFX48/52-003 to 074 (Frame sizes B, C and D)
IP54-VFX69-002 to 058 (Frame sizes C69 and D69)
IP20/21 - VFX48-025 to 365 (Frame sizes C2, D2, E2, F2
and FA2)
IP20/21 - VFX69-002 to 058 (Frame sizes C2(69) and
D2(69))
3.2.1 Mains cables
Dimension the mains and motor cables according to local
regulations. The cable must be able to carry the AC drive
load current.
Recommendations for selecting mains
cables
• To fulfil EMC purposes it is not necessary to use
screened mains cables on the supply side.
• Use heat-resistant cables, +75 °C (167 °F) or higher.
• Dimension the cables and fuses in accordance with local
regulations and the nominal input current of the drive
See table 66, page 224.
• PE conductor cross-sectional area on supply side shall for
phase cable size < 16 mm
2
(6 AWG) be >10 mm2 Cu
(16 mm
2
Al) or use a second PE conductor with same
area as original PE conductor. For cable size above
16mm
2
(6 AWG) but smaller or equal to 35mm
2
(2
AWG) the PE conductor cross-sectional area shall be at
least 16mm
2
(6 AWG).
For cables >35mm
2
(>2 AWG) the PE conductor cross-
sectional area should be at least 50% of the used phase
conductor cross-sectional.
When the PE conductor in the used cable type is not in
accordance with the above mentioned cross-sectional
area requirements, a separate PE conductor should be
used to establish this.
• The litz ground connection see fig. 48, is only necessary
if the mounting plate is painted. All the AC drives have
an unpainted back side and are therefore suitable for
mounting on an unpainted mounting plate.
Connect the mains cables according to fig. 37 to 45. The
AC drive has as standard a built-in RFI mains filter that
complies with category C3 which suits the Second
Environment standard.
