16 Mounting CG Drives & Automation 01-7492-01r1
Transport by fork-lift truck
When transporting individual and bayed enclosures, please
take care to ensure that the base/plinth trim panels are fitted,
and loads are restricted to the immediate vicinity of the base/
plinth corner pieces.
Transport of individual enclosures

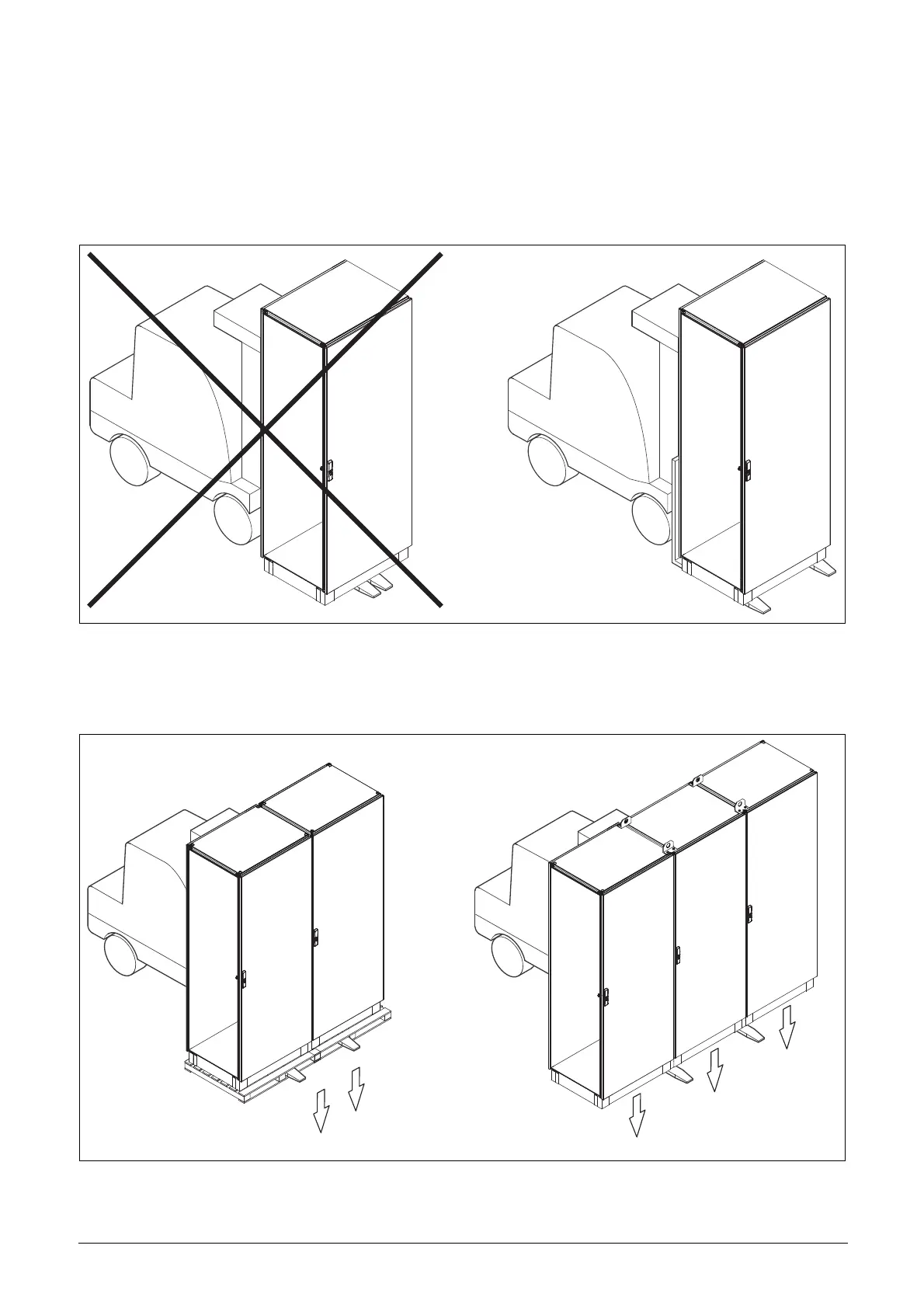

Fig. 8 Transport of individual enclosure with fork-lift truck.
Transport of bayed enclosure suites
For the enclosure combination with internal baying brackets
the following load capacities are supported:
Fig. 9 Transport of enclosure combination with fork-lift truck.
F
F
F
F
F
Max. 15000 N
Max. 15000 N
Max. 7000 N
Max. 14000 N
Max. 7000 N
