The module’s internal supply voltages are generated from a single input supply of 5 - 15 V DC. Some of
these voltages are available on the Mercury module connectors to supply circuits on the base board.
Four LEDs are connected to the SoC pins for status signaling.
2.2 Module Configuration and Product Codes
Table 2 describes the available standard module configurations. Custom configurations are available; please
contact Enclustra for further information.
Product Code SoC DDR3/DDR3L DDR3/DDR3L Temperature
SDRAM (PS) SDRAM (PL) Range
ME-ZX1-30-2I-D10 XC7Z030-2FBG676I 1024 MB 256 MB -40 to +85
◦
C
ME-ZX1-35-1I-D10 XC7Z035-1FBG676I 1024 MB 256 MB -40 to +85
◦
C
ME-ZX1-45-2I-D10-P XC7Z045-2FFG676I 1024 MB 256 MB -40 to +85
◦
C
Table 2: Standard Module Configurations

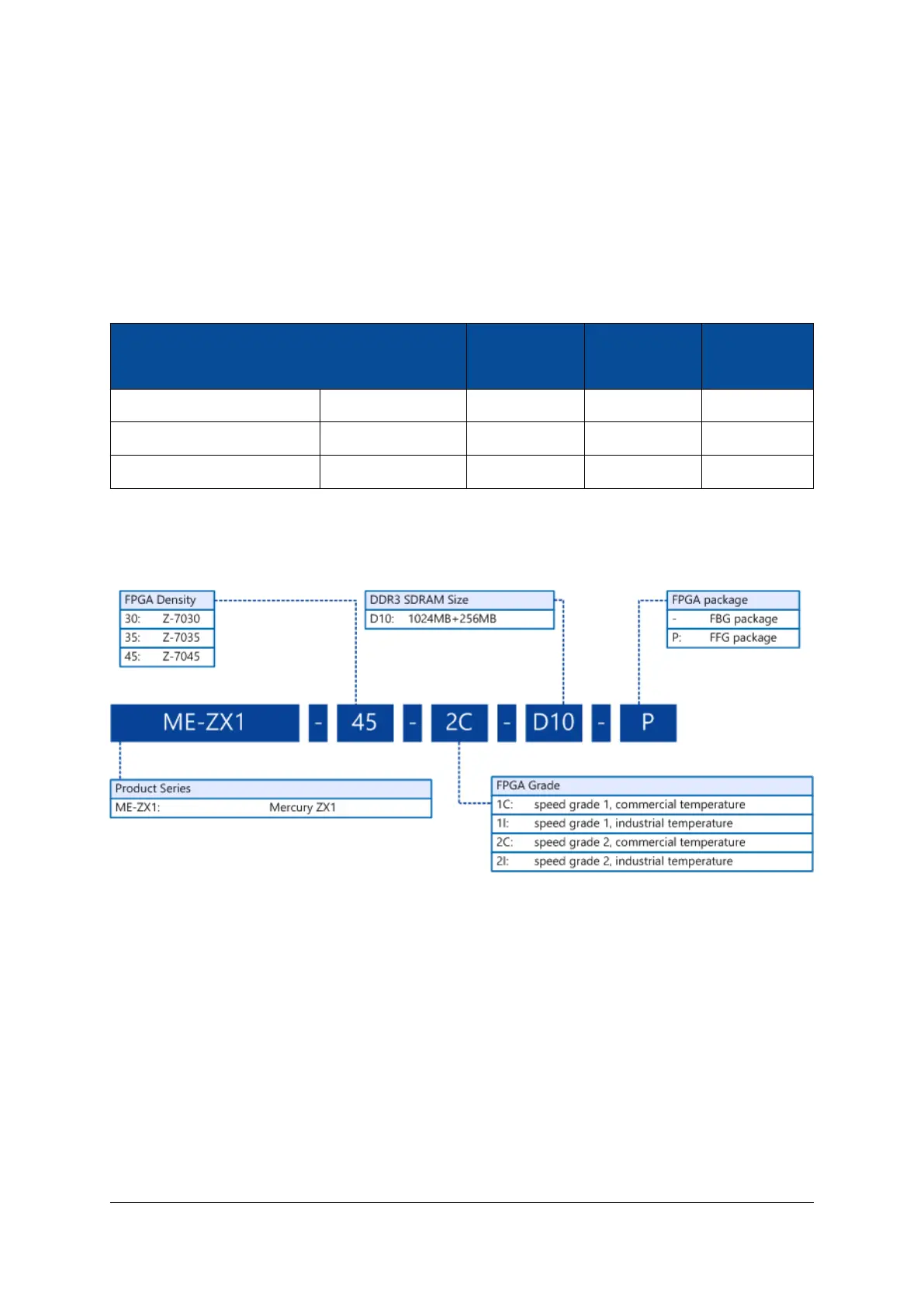

The product code indicates the module type and main features. Figure 2 describes the fields within the
product code.
Figure 2: Product Code Fields
Please note that for the first revision modules or early access modules, the product code may not respect
entirely this naming convention. Please contact Enclustra for details on this aspect.
2.3 Article Numbers and Article Codes
Every module is uniquely labeled, showing the article number and serial number. An example is presented
in Figure 3.
D-0000-403-002 11 / 56 Version 05, 25.07.2019
