2.5 Top and Bottom Assembly Drawings

2.5.1 Top Assembly Drawing

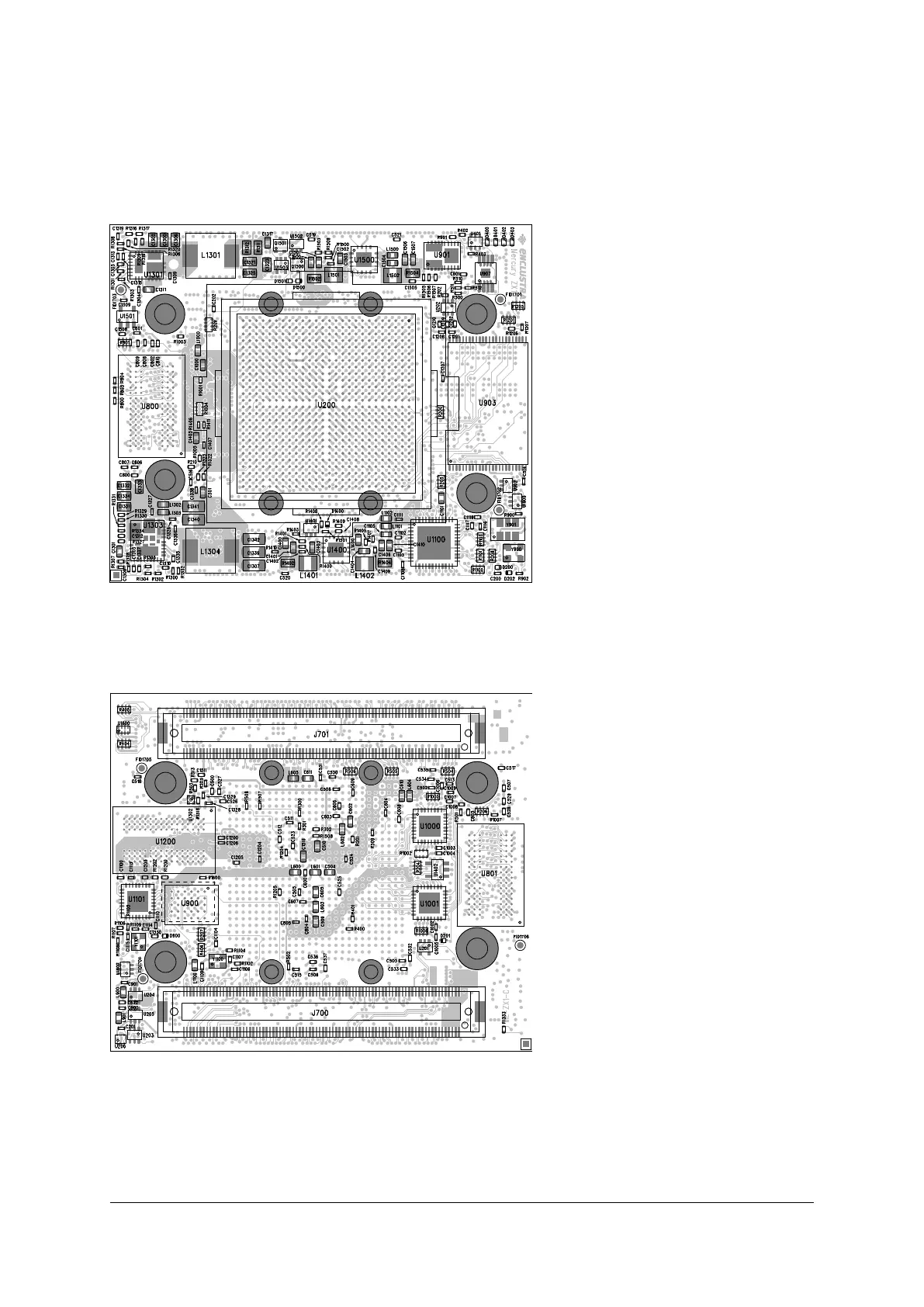

Figure 6: Module Top Assembly Drawing

2.5.2 Bottom Assembly Drawing

Figure 7: Module Bottom Assembly Drawing

Please note that depending on the hardware revision and configuration, the module may look slightly dif-

ferent than shown in this document.

D-0000-403-002 14 / 56 Version 05, 25.07.2019
