Cerabar S/Deltabar S Description of parameters (FF configuration program)
Endress+Hauser 61
6.3.6 Diagnosis Transducer Block
SIL_DIGITS_TEST_
STRING/
DIGIT SETS
Display
Index: 17
Data type: Visible String
Access: Read only
This parameter is used to check the correct display of characters and digits on the on-site
display. "0123456789.-" is displayed if the display is correct.
Diagnosis Transducer Block
Parameter Description
SIMULATION_MODE
Selection
Index: 11
Data type: Unsigned8
Access: Auto, OOS

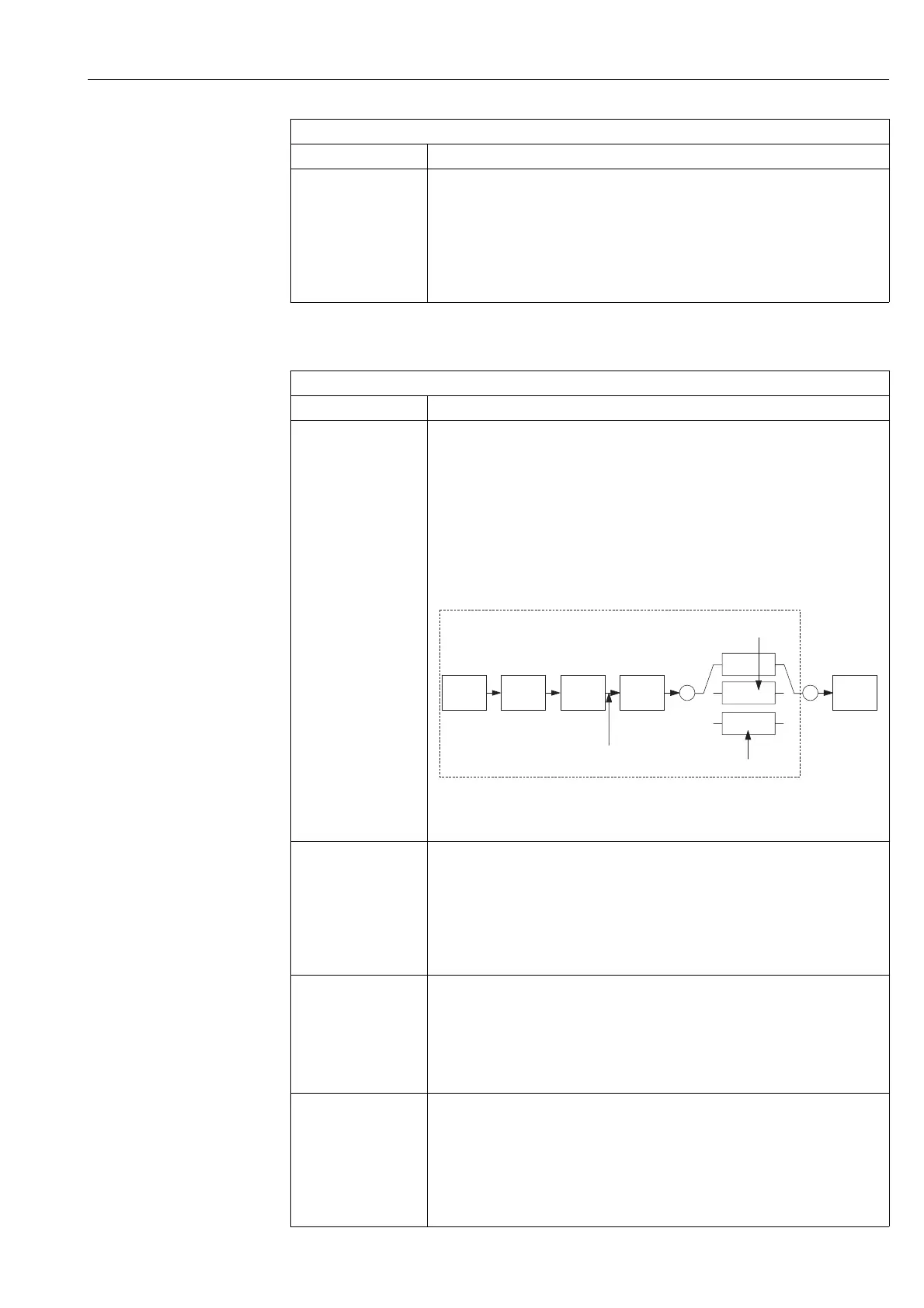

Switch on simulation and select simulation type.
Any simulation running is switched off if the measuring mode or level type is changed.
Options::
•None
• Pressure
• Flow (only differential pressure transmitter)
• Level
• Tank content
• Alarm/warning
P01-xMD7xxxx-05-xx-xx-xx-004
Factory setting:
None
SCALE_OUT_UNITS_
INDEX/
UNITS INDEX
Display
Index: 12
Data type: Unsigned16
Access: Read only
Displays the unit that was selected by means of the SCALE_OUT parameter (→ Page 37) in
the Pressure Transducer Block.
SIMULATION_VALUE/
SIMULATED VALUE
Entry
Index: 13
Data type: Float
Access: Auto, OOS
Enter simulation value.
Prerequisite:
• SIMULATION_MODE = pressure, flow, level or tank content.
ALARM_SIMULATION_
VALUE/
SIM. ERROR NO.
Entry
Index: 14
Data type: Unsigned16
Access: Auto, OOS
Enter message number for simulation.
→ See also these Operating Instructions, Section 11.1 "Messages", "Code" column.
Prerequisite:
• SIMULATION_MODE = alarm/warning
Factory setting:
613 (simulation active)
Display Transducer Block
Parameter Description
P
PV
Simulation value pressure
Transducer Block
– Simulation value level
– Simulation value tank content
Simulationvalue flow
Sensor
Analog
Input
Block
Pressure
Level
Flow
Damping
Position
adjust-
ment
Sensor
trim
