10 Technical data PROline Prosonic Flow 93 PROFIBUS-DP/-PA
154 Endress+Hauser
10.4 Dimensions of W sensors (Clamp On)

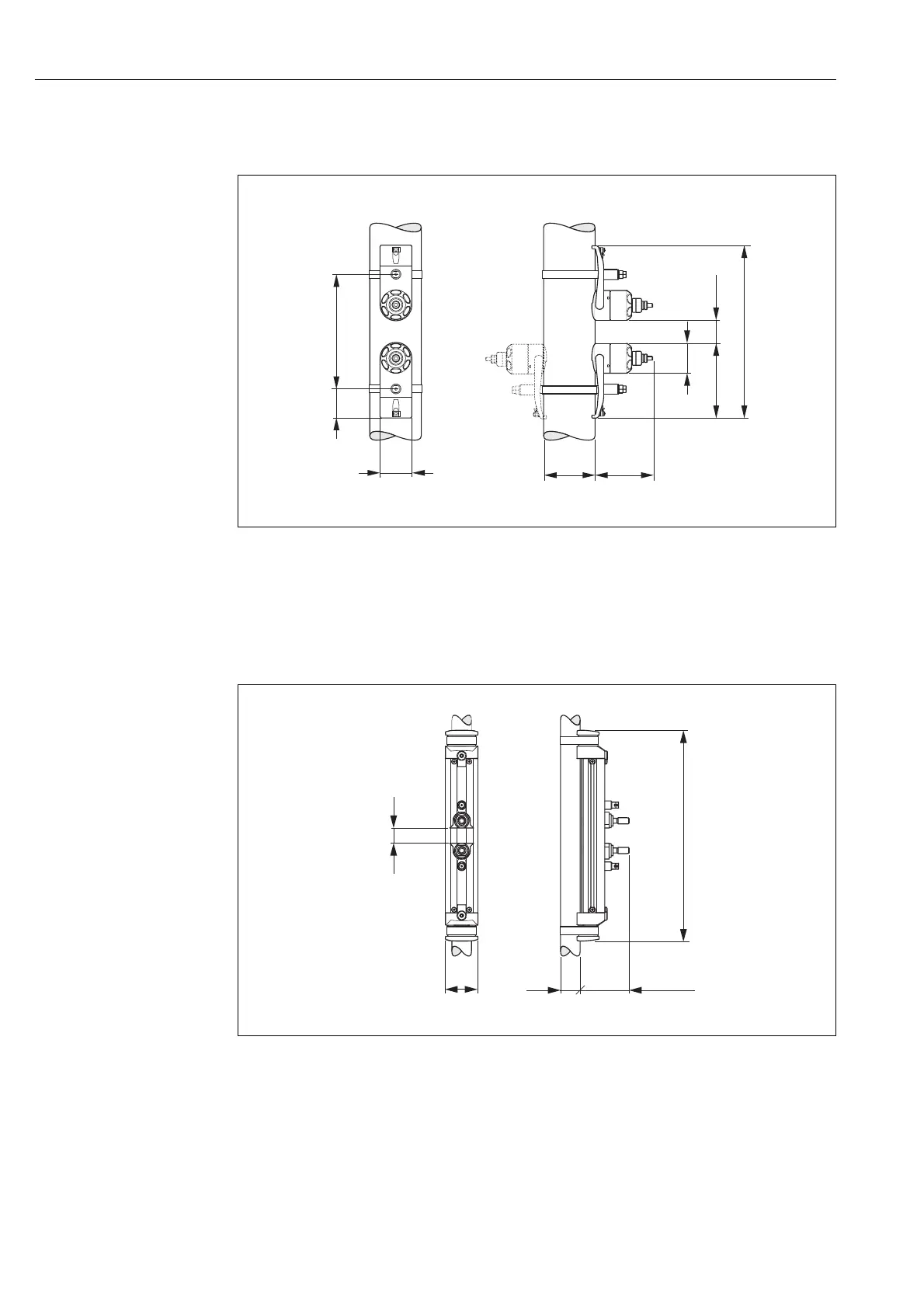

Fig. 79: Dimensions of W sensor (Clamp On)
a = Sensor distance can be determined using Quick Setup
b = Pipe outer diameter (defined by the application)
10.5 Dimensions of U sensors (clamp on)
Fig. 80: Dimensions of U sensor (clamp on)
a = Sensor spacing can be determined using Quick Setup
b = Pipe outer diameter (defined by the application)
Ø 58
145
 0.5
872
111b
56
62
a
F06-9xWCxxxx-06-05-xx-xx-000
b
a
341.5
max. 77.552.5
F06-9xUxxxxx-06-05-xx-xx-001
