3 Installation PROline Prosonic Flow 93 PROFIBUS-DP/-PA
16 Endress+Hauser
3.2.5 Inlet and outlet runs (Insertion version)
If possible, install the sensor well clear of assemblies such as valves, T-pieces, elbows,
etc. If several flow obstructions are installed, the longest inlet or outlet run must be con-
sidered. Compliance with the following requirements for the inlet and outlet runs is
recommended to ensure measuring accuracy:

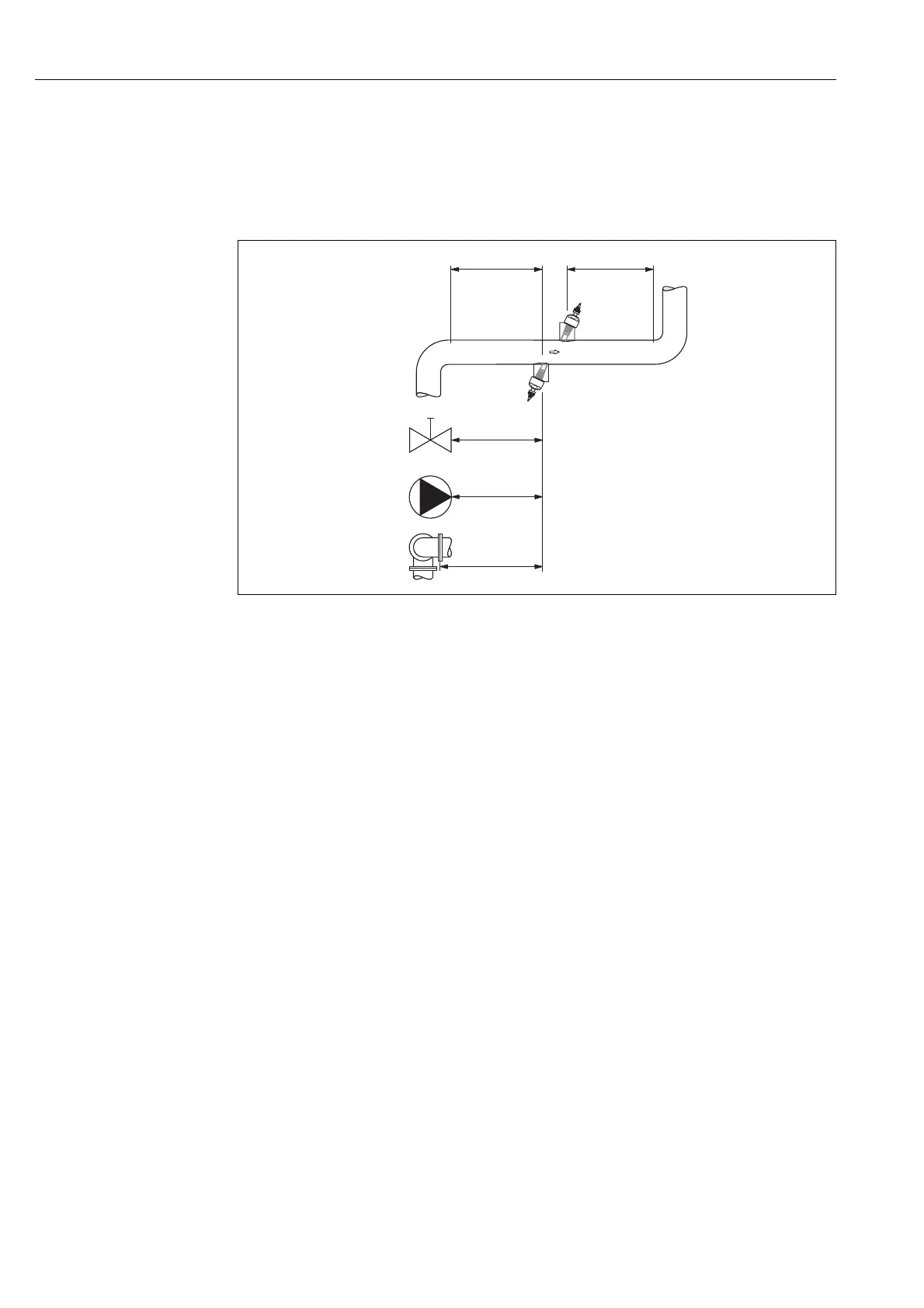

Fig. 8: Inlet and outlet runs (Insertion version)
1 = Valve, 2 = Pump, 3 = Two pipe bends in different directions
Data above the dimension line apply to the single path version
Data below the dimension line apply to the dual path version
3.2.6 Length of connecting cable
Shielded cables are offered in the following lengths:
5 m, 10 m, 15 m and 30 m
"
Caution!
Route the cable well clear of electrical machines and switching elements.
≥
15 x DN
≥
10 x DN
≥
40 x DN
≥
40 x DN
≥
20 x DN
≥
15 x DN
≥
40 x DN
≥
20 x DN
≥
5 x DN
≥
5 x DN
1
2
3
F06-9xxxxxxx-00-05-11-xx-009
