3 Installation PROline Prosonic Flow 93 PROFIBUS-DP/-PA
18 Endress+Hauser

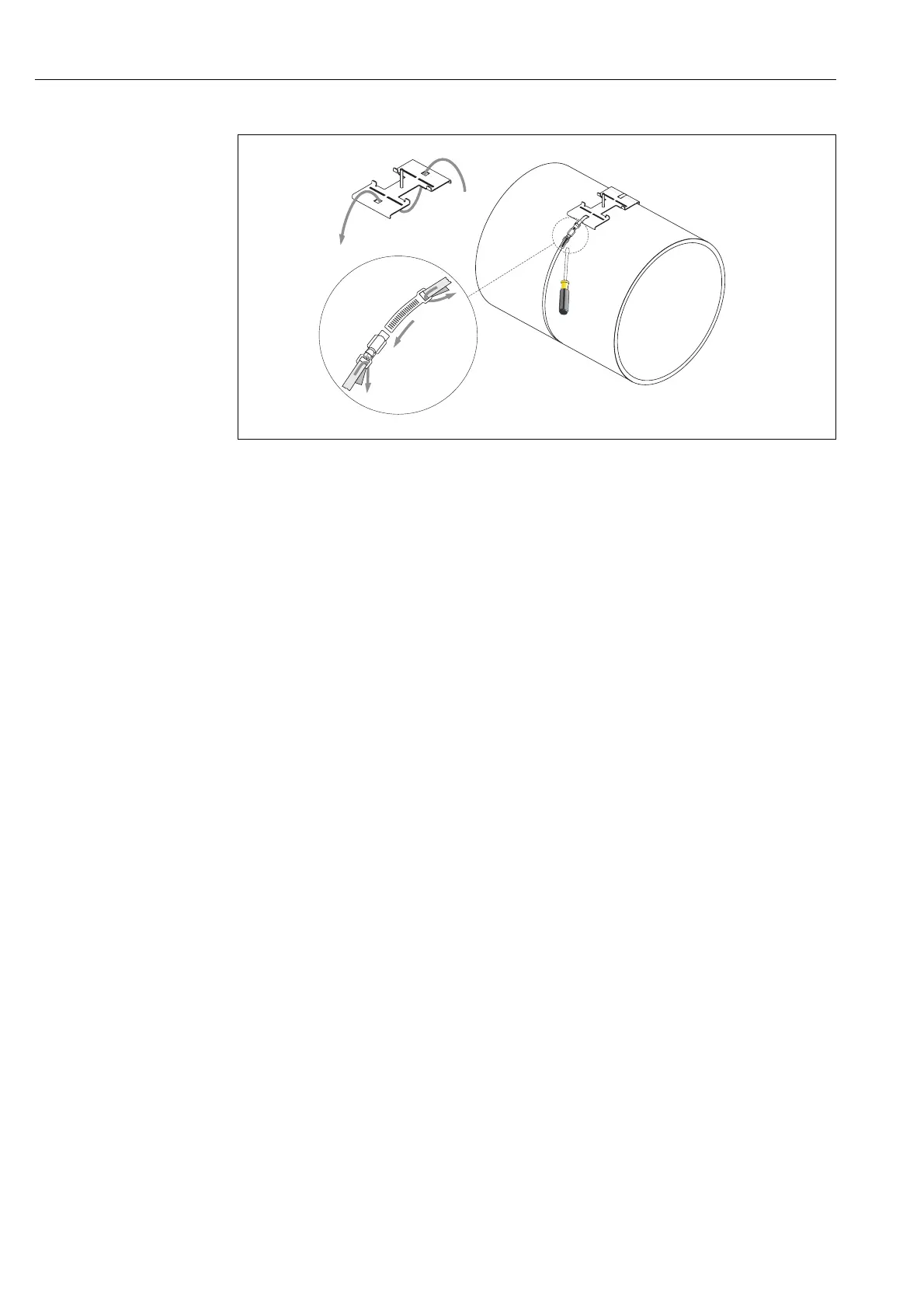

Fig. 10: Tensioning band installation for DN 250...4000
For U sensors - DN 15...100
The procedure for installing the tensioning bands for the U sensor is explained on
Page 25 in the "Installing the sensor Prosonic Flow U" Section.
1
2
2
3
4
F06-9xxxxxxx-17-05-06-xx-012
