Enertech AV Series - Page 57

Enertech Global, LLC 57
AV : MD/ME - Rev. A Models
Installaon and Operaons Manual
Please wait.
Internal valve in Hot Water
Tank position.
3.10.1.2 3.10.1.3 3.10.1.4 3.10.1.5
3.10.1.6 3.10.1.7 3.10.1.8 3.10.1.9
3.10.1.10
3.9.0.3 3.9.1 3.10.0.1 Startup Wizard Button
3.10.1.1a
3.10.0.2 Startup Wizard Idle Prompt 3.10.1.1
This will take you back to
the startup wizard
Flush Outdoor Unit
Flush Outdoor Unit
heat exchanger and piping
between the Indoor/
Outdoor units until air is
removed.
Please open ALL zone
valves and press NEXT.
Please wait.
Internal valve in hydronic
position.
Completely flush every
circuit until it is void of all air.
Please open ALL zone
valves and press NEXT.
House zones test in
progress. Please wait:
5 min
House zones test in
progress. Please wait:
5 min
3.10.1.17 3.11.0.1.1 Update Button 3.12.0.1.1 Reset Button
3.10.1.12 3.10.1.13 3.10.1.14 3.10.1.15
3.10.1.11
3.10.1.16

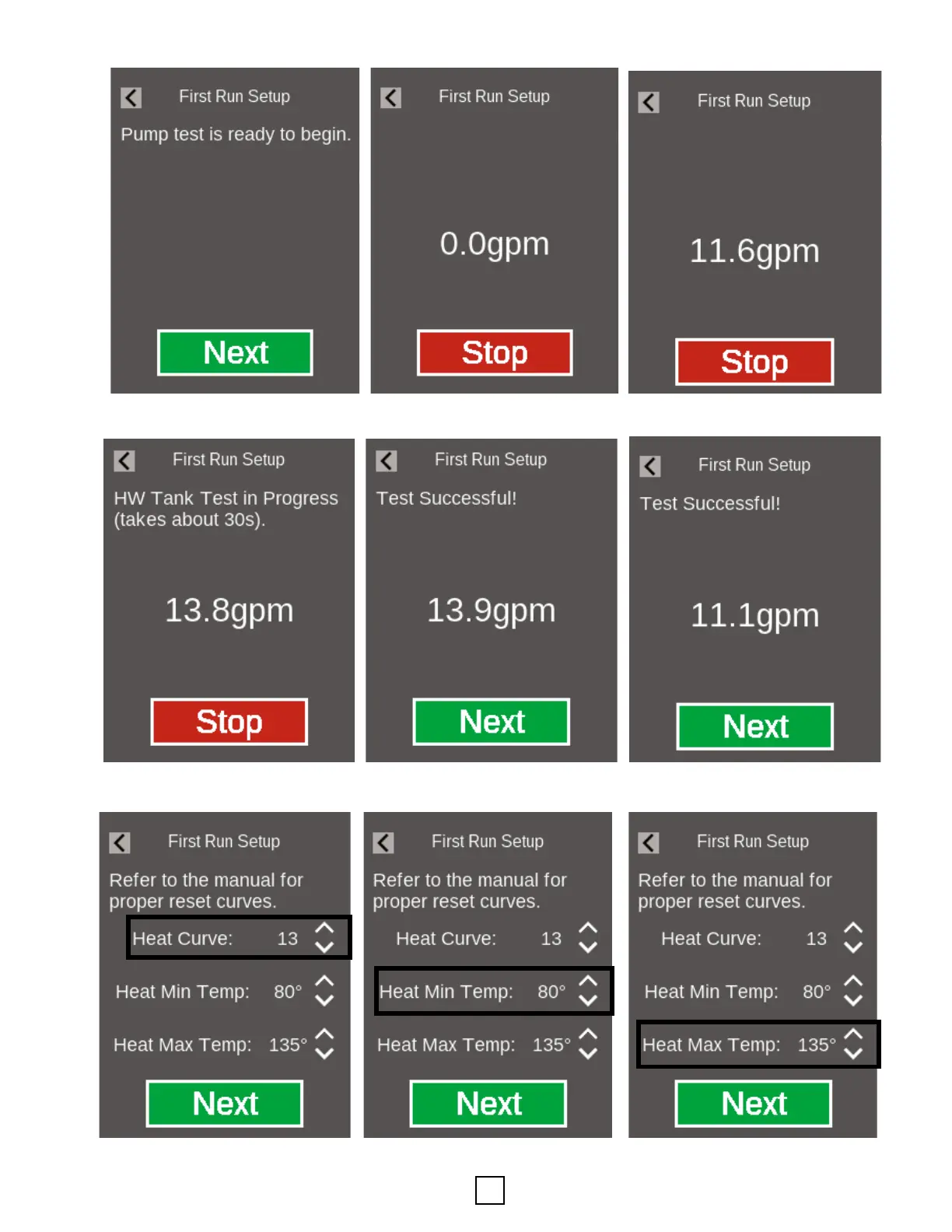

Step 13 Step 14 Step 15
3.10.1.17 3.11.0.1.1 Update Button 3.12.0.1.1 Reset Button
3.10.1.12 3.10.1.13 3.10.1.14 3.10.1.15
3.10.1.11
3.10.1.16
Step 16 Step 17 Step 18
3.10.1.17 3.11.0.1.1 Update Button 3.12.0.1.1 Reset Button
3.10.1.12 3.10.1.13 3.10.1.14 3.10.1.15
3.10.1.11
3.10.1.16
3.10.1.17 3.11.0.1.1 Update Button 3.12.0.1.1 Reset Button
3.10.1.12 3.10.1.13 3.10.1.14 3.10.1.15
3.10.1.11
3.10.1.16
Secon 9: Equipment Start-Up
Step 19 Step 20 Step 21
3.10.1.17 3.11.0.1.1 Update Button 3.12.0.1.1 Reset Button
3.10.1.12 3.10.1.13 3.10.1.14 3.10.1.15
3.10.1.11
3.10.1.16
Please wait.
Internal valve in Hot Water
Tank position.
3.10.1.2 3.10.1.3 3.10.1.4 3.10.1.5
3.10.1.6 3.10.1.7 3.10.1.8 3.10.1.9
3.10.1.10
3.9.0.3 3.9.1 3.10.0.1 Startup Wizard Button
3.10.1.1a
3.10.0.2 Startup Wizard Idle Prompt 3.10.1.1
This will take you back to
the startup wizard
Flush Outdoor Unit
Flush Outdoor Unit
heat exchanger and piping
between the Indoor/
Outdoor units until air is
removed.
Please open ALL zone
valves and press NEXT.
Please wait.
Internal valve in hydronic
position.
Completely flush every
circuit until it is void of all air.
Please open ALL zone
valves and press NEXT.
House zones test in
progress. Please wait:
5 min
House zones test in
progress. Please wait:
5 min
