Enertech AV Series - EAV Unit Electrical Layout

Enertech Global, LLC 7
AV : MD/ME - Rev. A Models
Installaon and Operaons Manual

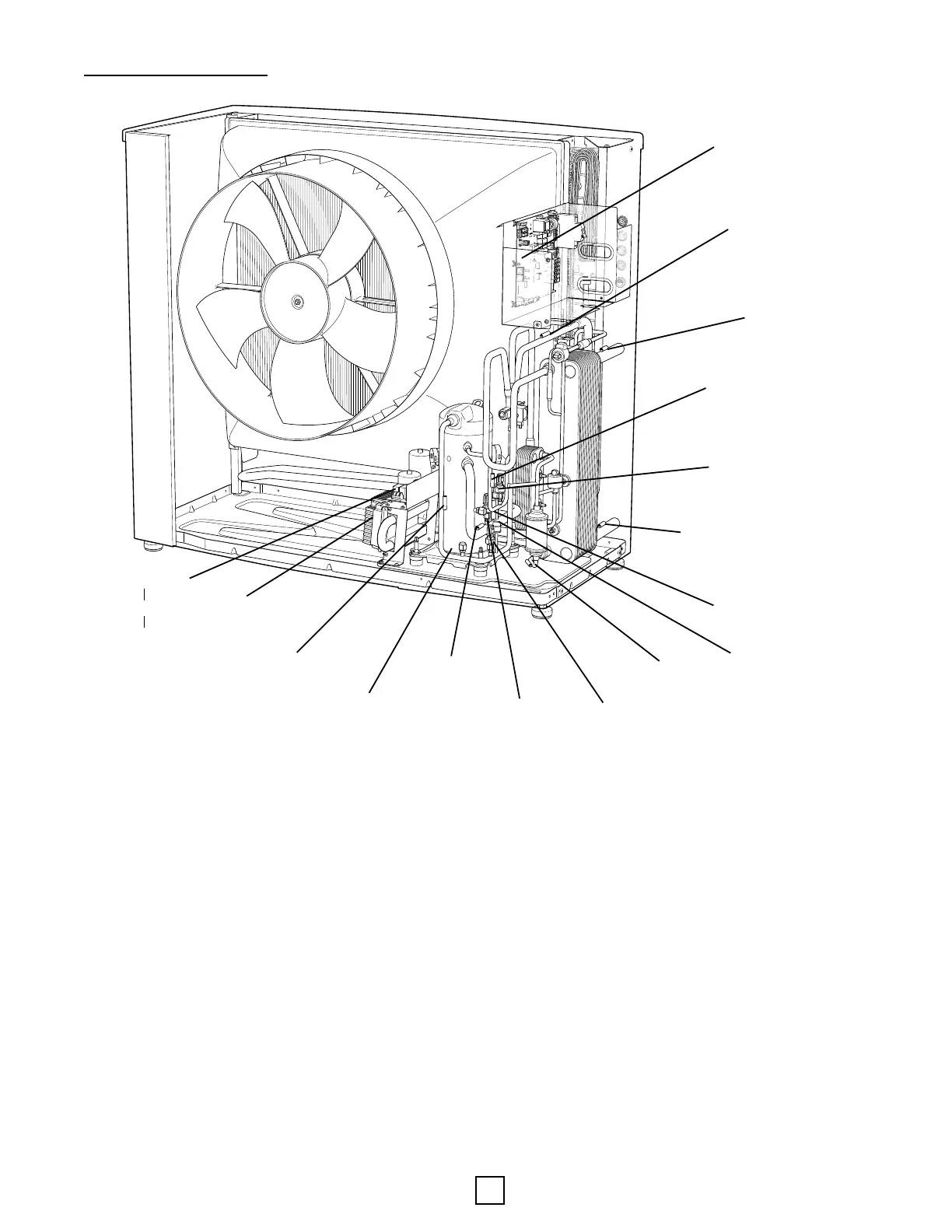

EAV Unit Electrical Layout
LEK
AV Controls
Compressor Control
(TCB Board)
Thermistor, Suction-Evap
(Heating)
(BT84)
Thermistor, Load Out to
Indoor Module
(BT12)
Thermistor, Vapor Injection
Line
(BT81)
Vapor Injection Pressure
Transducer
(BP11)
Thermistor, Load In from
Indoor Module
(BT3)
Low Pressure Switch
(BP2)
High Pressure
Switch
(BP1)
Inverter
(QA40)
Harmonic Filter
Capacitor
Terminal Block
(X6)
Thermistor,
Compressor
Discahrge
(BT14)
Crankcase
Heater (qty 2)
Thermistor,
Sucon Gas
(BT17)
Low Pressure
Switch
(BP8)
High Pressure
Transducer
(BP9)
Thermistor,
Liquid Line,
Heang
(BT15)
Secon 2: Product & Unit Data
