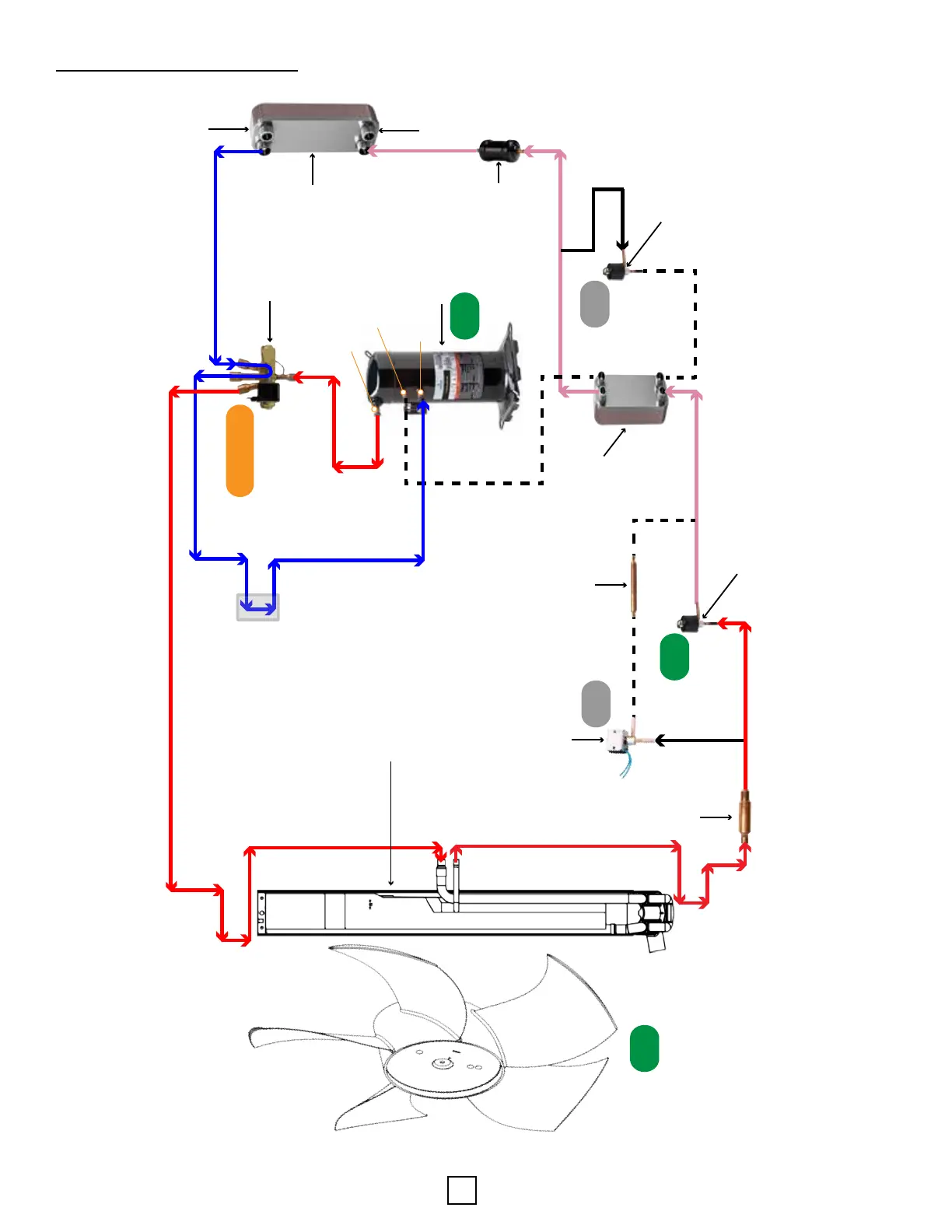

Refrigerant Circuit - Cooling Mode
Reversing Valve
Water Out
Water In
Bi-fow Filter Drier
Electronic
Expansion Vlave
Electronic
Expansion Valve
Subcooler
Check Valve
Solenoid Valve
Strainer
Air Coil
Condenser
Water Heater
Inverter Cooler
Compressor
Discharge Line
Injec�on Line
Suc�on Line
Brazed Plate Heat
Exchanger (BPHE)
Water Pumps Are Ac�ve
Vapor
Injec�on
ON
ENERGIZED
ON
OFF
OFF
ON
