Enertech AV Series - Refrigerant Circuit - Passive Defrost Mode

Enertech Global, LLC 64
AV : MD/ME - Rev. A Models
Installaon and Operaons Manual
Reversing Valve
Water Out
Water In
Bi-fow Filter Drier
Electronic
Expansion Vlave
Electronic
Expansion Valve
Subcooler
Check Valve
Solenoid Valve
Strainer
Air Coil
Condenser
Water Heater
Inverter Cooler
Compressor
Discharge Line
Injec�on Line
Suc�on Line

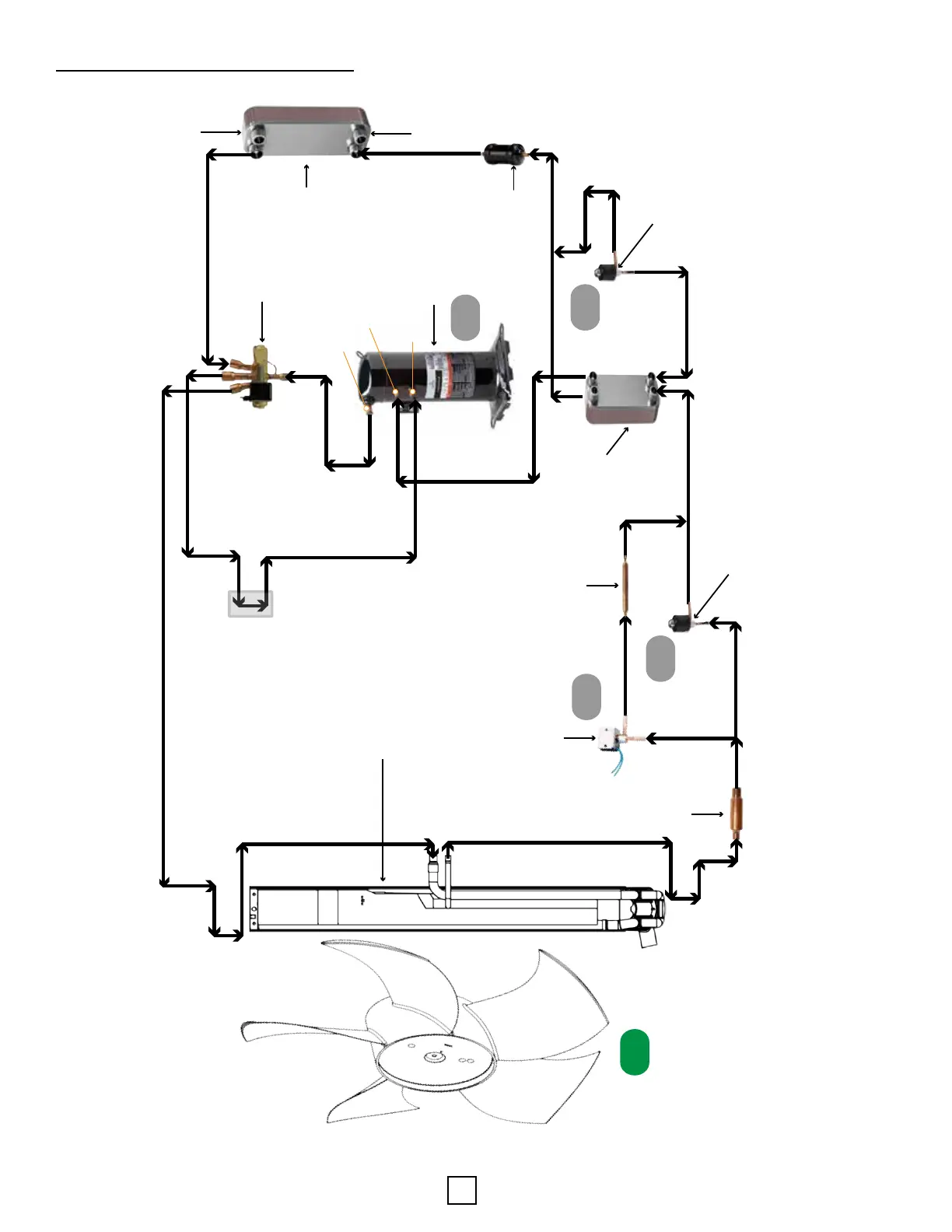

Refrigerant Circuit - Passive Defrost Mode (39 deg F and above)
Brazed Plate Heat
Exchanger (BPHE)
Water Pumps Are Off
Vapor
Injec�on
ON
OFF
OFF
OFF
OFF
Refrigerant Circuit - Passive Defrost Mode
Secon 10: Troubleshoong
