Rack Mounting the Switch
Enterasys B5 Gigabit Ethernet Switch Hardware Installation Guide 2-5
Attaching the Brackets and Installing in a Rack
Proceedasfollowstoinstalltheswitchintoa19‐inchrack:
1. Attachtherackmountbracketstothe switch,asshowninFigure 2‐3,usingtheeightM3x6
mmflatheadscrewsshippedwiththesw itch.

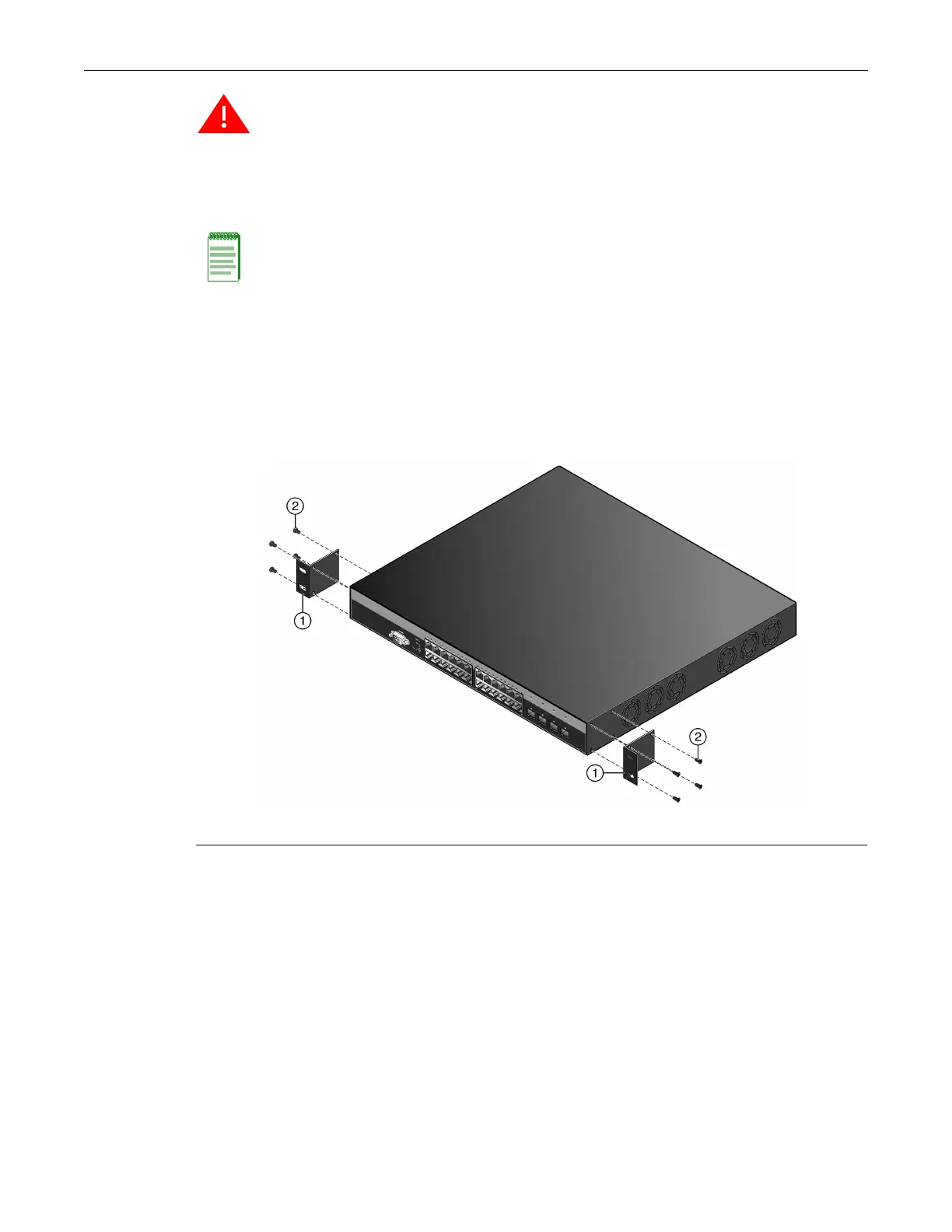

Figure 2-3 Attaching the Rackmount Brackets
2. Withthemountingbracketsattached,positiontheswitchbetweentheverticalframemembers
ofthe
19‐inchrackasshowninFigure 2‐4.Thenfastentheswitchsecurelytotheframeusing
fourcustomer‐suppliedmountingscrews.
Warning: Before rack-mounting the switch, ensure that the rack can support it without
compromising stability. Otherwise, personal injury and/or equipment damage may result.
Advertencia: Antes de montar el equipo en el rack, asegurarse que el rack puede soportar su peso
sin comprometer su propia estabilidad, de otra forma, daño personal o del equipo puede ocurrir.
Warnhinweis: Überzeugen Sie sich vor dem Einbau des Gerätes in das Rack von dessen
Stabilität, ansonsten könnten Personenschäden oder Schäden am Gerät die Folge sein.
Note: Do not install the rubber feet if you are rack mounting the switch.
1 Rackmount brackets 2 M3x6 mm flathead screws
