Enterasys B5G124-24 User Manual

Installing and Connecting B5 Redundant Power Systems
2-16 Installation
Rack Mounting the Chassis
RefertoFigure 2‐9orFigure 2‐10andproceedasfollowstoinstallthechassisintoa19‐inch(48.3‐
cm)rack:
1. Positionthechassisbetweentheverticalrails
andalignthemountingholesinthechassis
bracketswiththoseintherackframe.
2. Fastenthechassissecurelytotherailsusingthecustomer‐suppliedmountingscrews(fourfor
theSTK‐RPS‐150CH 2, tenfortheSTK‐RPS‐150CH8).

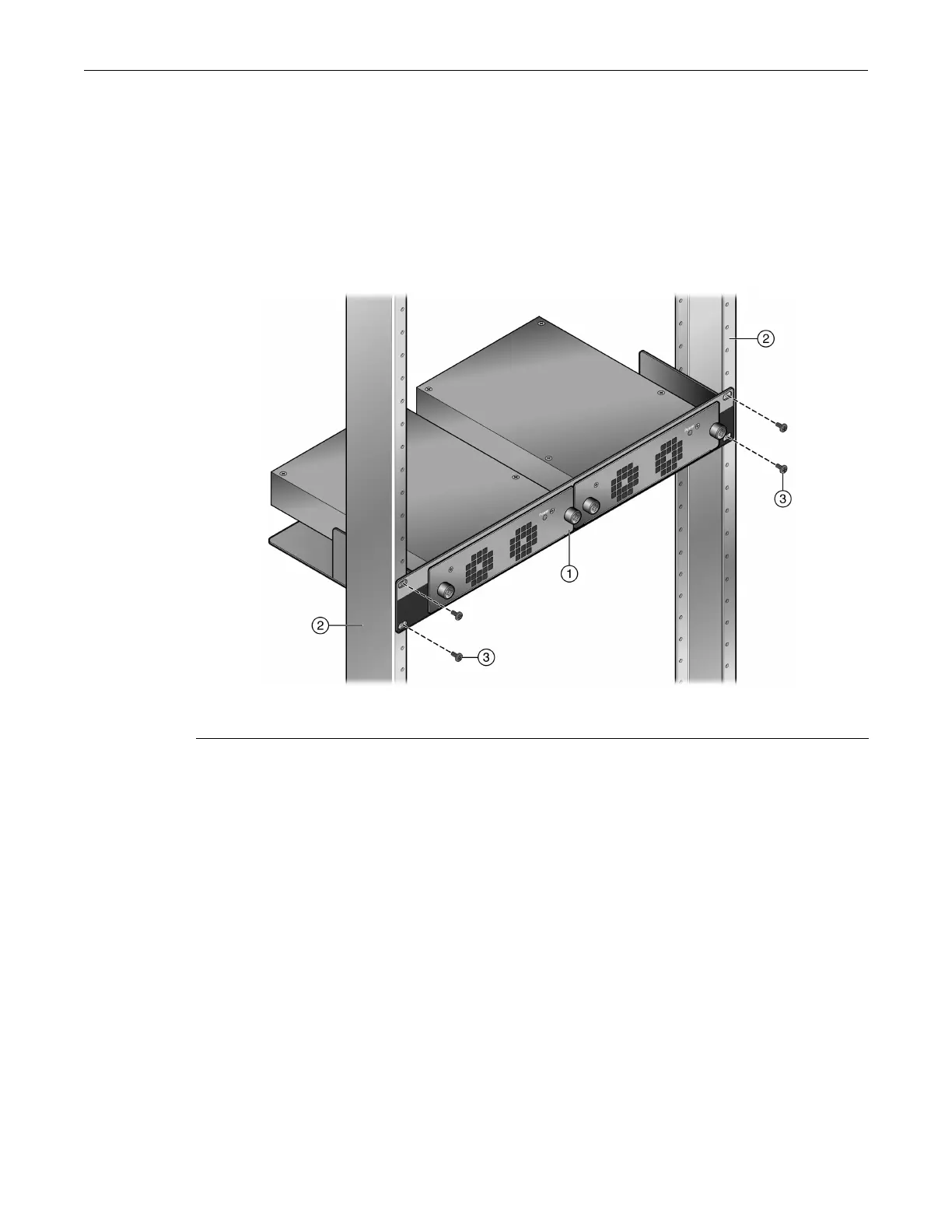

Figure 2-9 Fastening the STK-RPS-150CH2 to the Rack
1 STK-RPS-150CH2 chassis 3 Mounting screws
2 Rails of 19-inch rack
