Mounting the Switch
2-16 Installation

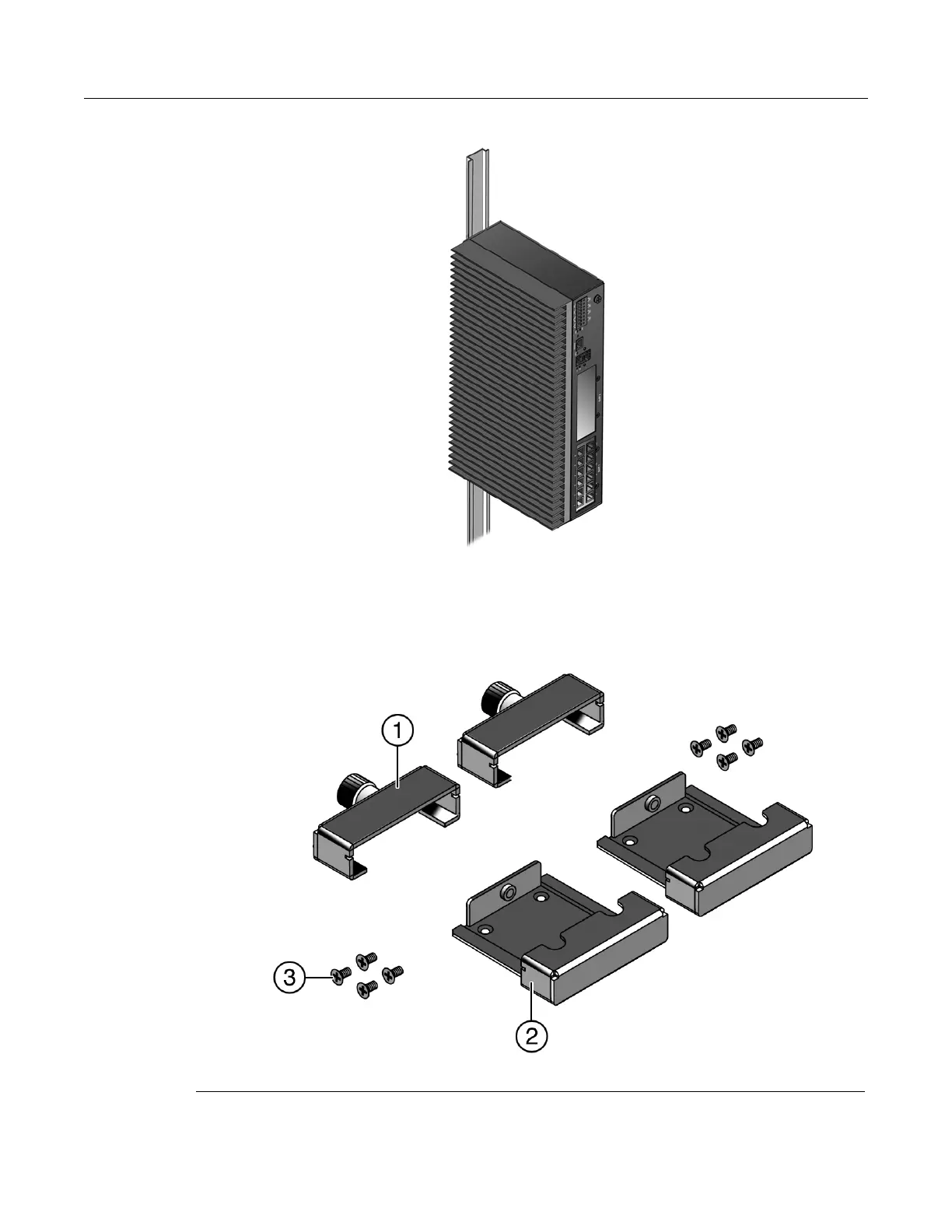

Figure 2-11 Example of Mounting on a Vertical Rail
The DIN clip kit consists of the two clips, each with four screws and a latch with a captive screw as
shown in Figure 2-12 on page 2-16. You need both clips if installing to the back of the switch, but
only one clip if installing to the bottom of the switch.
Figure 2-12 DIN Clip Kit
1 Latch 2 Base rail clip 3 Screws
