Installing an Optional XENPAK (10GBASE-LR) Module
3-8 Hardware Installation

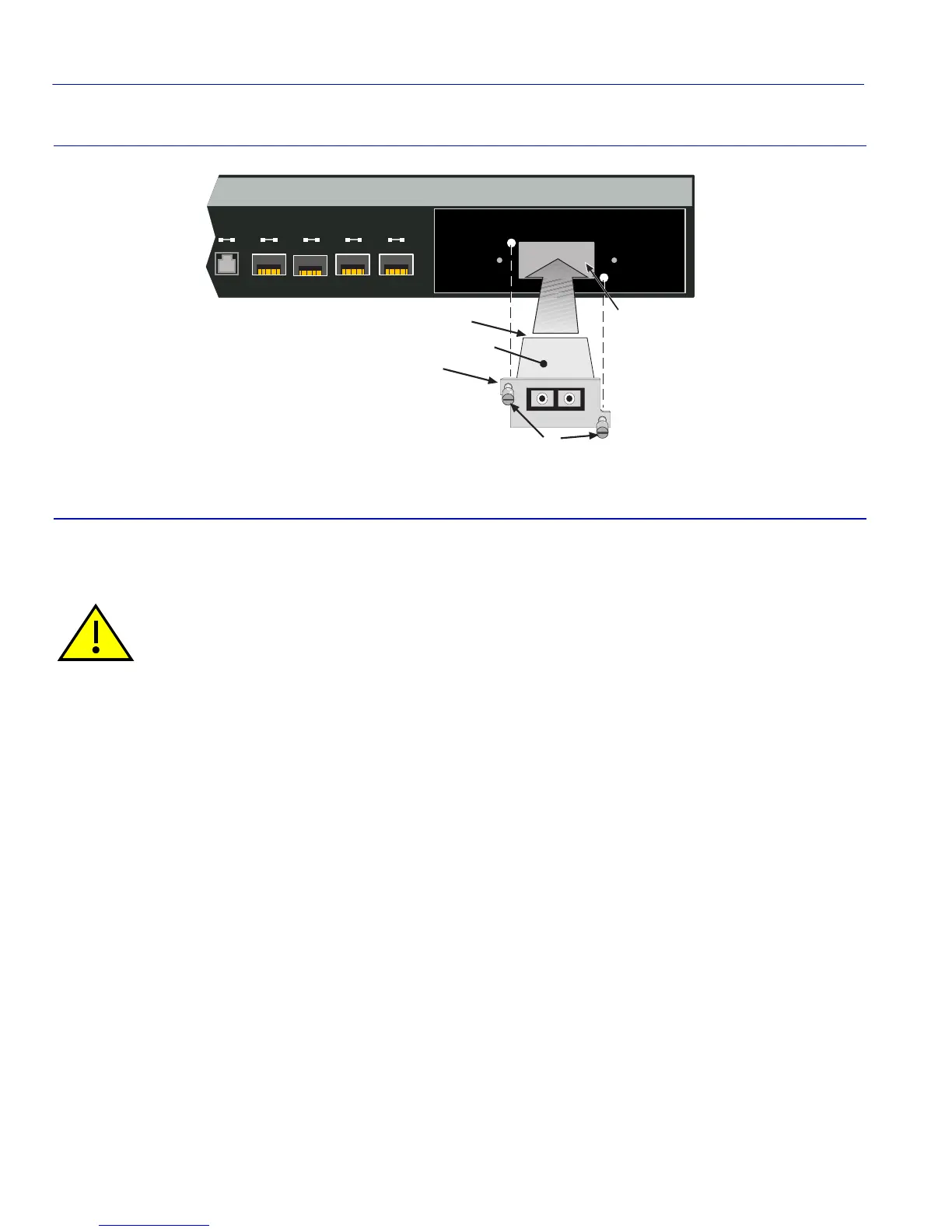

Figure 3-4 XENPAK Module Installation
Removing a XENPAK Module
To remove a XENPAK module from the switch, refer back to Figure 3-4 and proceed as follows:
1. Attach the antistatic wrist strap (refer to the instructions in the antistatic wrist strap package)
before removing the XENPAK module
➀.
2. Remove the network cable connected to the XENPAK module
➀.
3. Turn the thumbscrews
➄ counterclockwise to release the XENPAK module ➀ from the
ZPIM1-06.
4. Grasp the thumbscrews
➄ and pull the XENPAK module ➀ straight out of the switch port
slot
➃.
5. Before storing or shipping the XENPAK module
➀, insert it into a static free container. This
completes the removal procedure.
➀
10GBASE-LR (XENPAK) module
➃
Switch port slot
➁
10GBASE-LR (XENPAK), top side
➄
Thumbscrews (2)
➂
Edge connector (insertion side)
Caution: The XENPAK module and switch are sensitive to static discharges. Use an antistatic
wrist strap and observe all static precautions during this procedure. Failure to do so can result in
damage to the XENPAK module and switch. Always leave the XENPAK module in the antistatic
bag or an equivalent antistatic container when not installed.
