Enterasys Matrix E1 1G694-13 Installation Guide

Connecting to Console Port for Local Management
3-22 Hardware Installation
5. With a PC ➅ connected to a remote modem ➄, you can configure the switch remotely. To
accomplish this, you must configure your PC VT emulation package with the following
parameters.
6. When these parameters are set, the Local Management password screen will display. Refer to
the Matrix E1 1G694-13 Configuration Guide for further information.

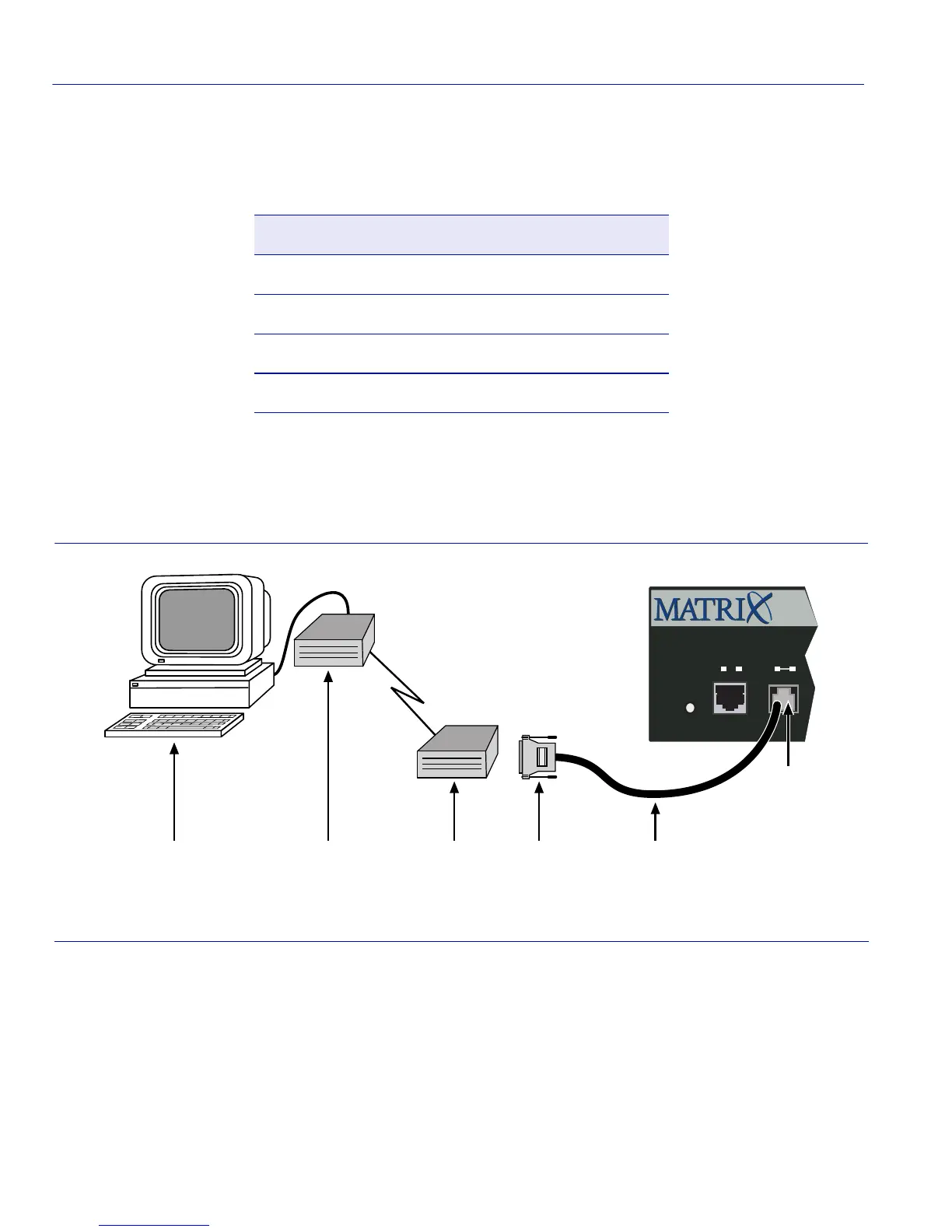

Figure 3-13 Connecting to a Modem
Parameter Setting
Mode 7 Bit Control
Transmit Transmit=9600
Bits Parity 8 Bits, No Parity
Stop Bit 1 Stop Bit
➀
UTP cable with RJ45 connector
➃
Local modem
➁
RJ45 console port
➄
Remote modem
➂
RJ45-to-DB25 modem adapter
➅
PC
1
Reset
Console
CPUPWR
1G694-13
Á
Ä ÂÃ ÀÅ
