To Next Page

To Previous Page

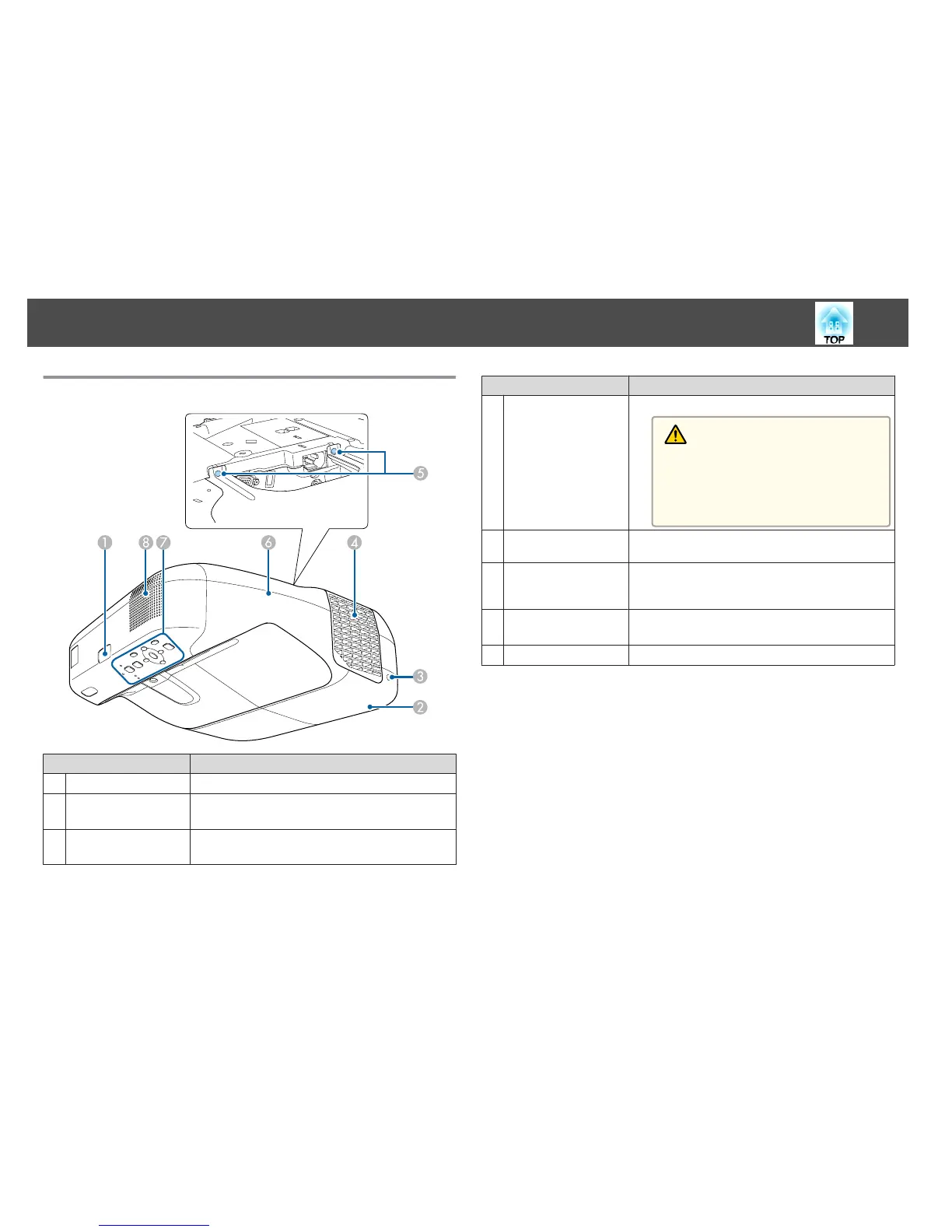

Front/Side

Name Function

Remote receiver

Receives signals from the remote control.

Lamp cover

Open when replacing the projector's lamp.

s "Replacing the Lamp" p.165

Lamp cover fixing

screw

Screw to fix the lamp cover in place.

s "Replacing the Lamp" p.165

Name Function

Air exhaust vent

Exhaust vent for air used to cool the projector internally.

Caution

While projecting, do not put your face or hands

near the air exhaust vent, and do not place objects

that may become warped or damaged by heat near

the vent. Hot air from the air exhaust vent could

cause burns, warping, or accidents to occur.

Cable cover fixing

screws

Screws to fix the cable cover in place.

Cable cover

Loosen the two screws and open the cover when

connecting cables for external devices or installing the

wireless LAN unit.

Control panel

Operates the projector.

s "Control Panel" p.16

Speaker

Outputs audio.
