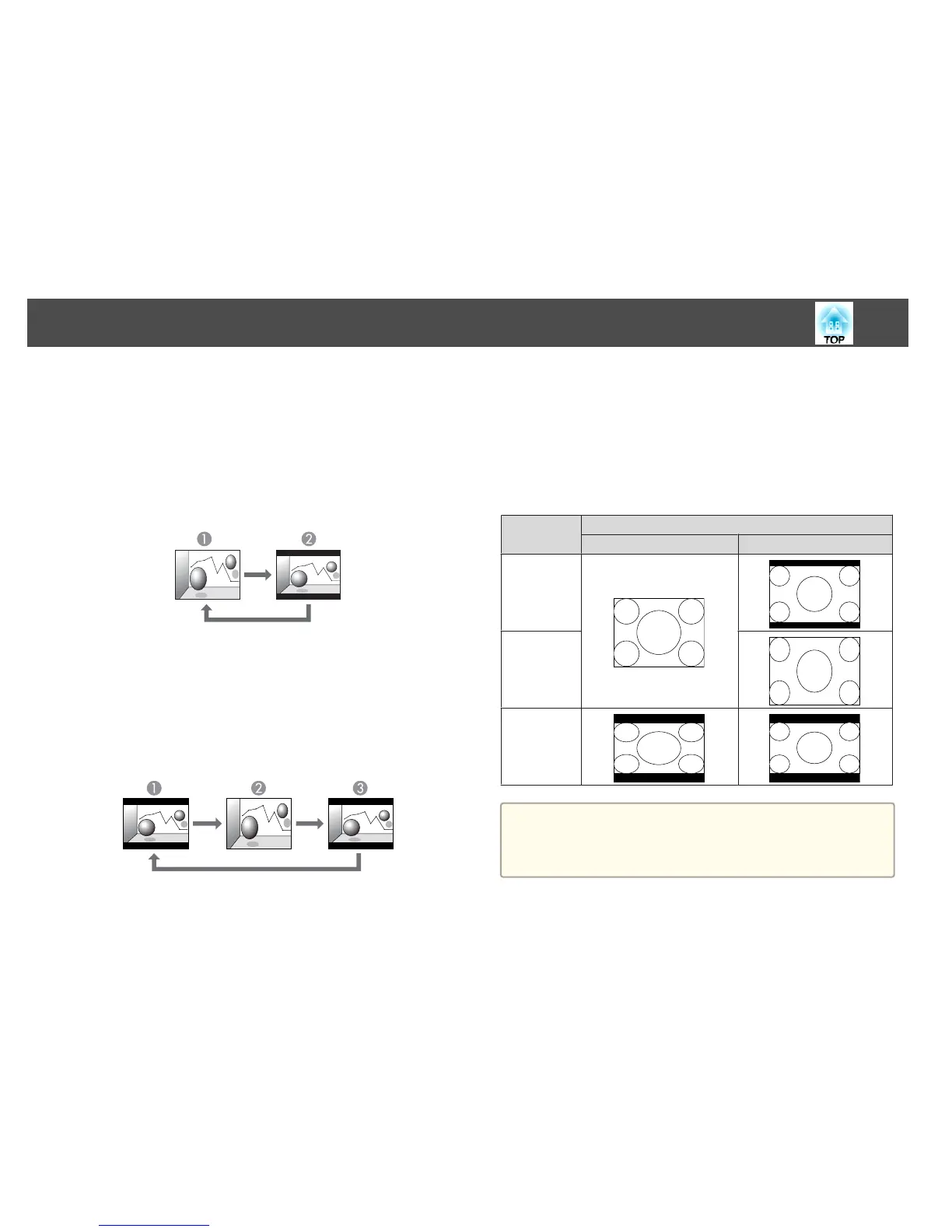

Changing the Aspect Mode (EB-580/EB-570 only)
Projecting Images from Video Equipment
Each time the [Aspect] button is pressed, the aspect mode changes in the
order 4:3 and 16:9.
When inputting a 720p/1080i signal and the aspect mode is set to 4:3, a 4:3
zoom is applied (the right and left sides of the image are cut off).
Example: 720p signal input (resolution: 1280x720, aspect ratio: 16:9)
A
4:3
B
16:9
Projecting Images from the HDMI/MHL Port
Each time the [Aspect] button is pressed, the aspect mode changes in the
order Auto, 4:3, and 16:9.
Example: 1080p signal input (resolution: 1920x1080, aspect ratio: 16:9)
A
Auto
B
4:3
C
16:9
Projecting Images from a Computer
Each time the [Aspect] button is pressed, the aspect mode changes in the
order Normal, 4:3, and 16:9.
The following shows projection examples for each aspect mode.
Aspect mode Input Signal
XGA 1024X768(4:3) WXGA 1280X800(16:10)
Normal
4:3
16:9
a
If parts of the image are missing, set the Resolution setting to Wide
or Normal from the Configuration menu, according to the size of the
computer panel.
s Signal - Resolution p.120
Adjusting Projected Images
61
