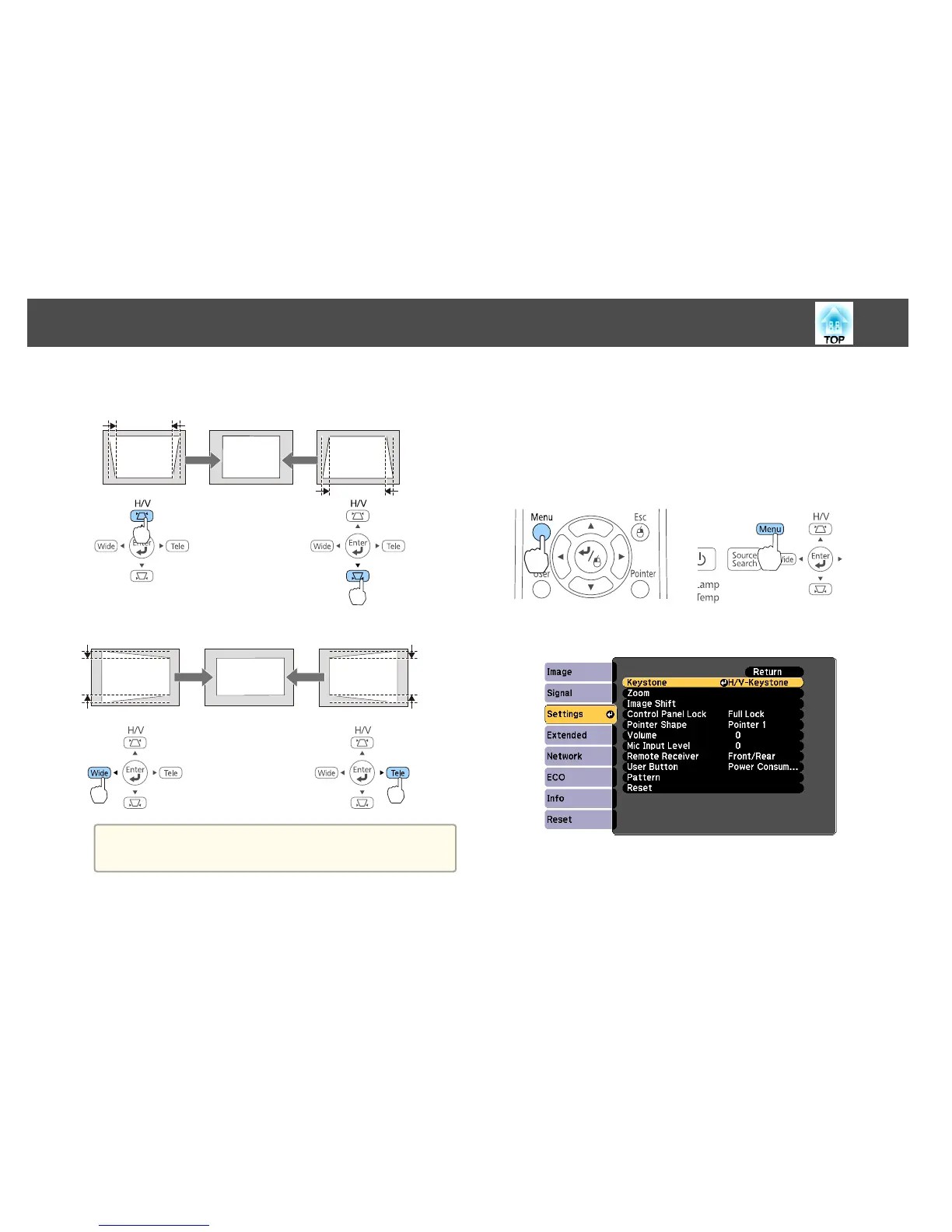

Press the following buttons to correct keystone distortion.

Press the [

w] or [v] buttons to correct vertical distortion.

Press the [Wide] or [Tele] buttons to correct horizontal distortion.

You can set H/V-Keystone from the Configuration menu.

s Settings - Keystone - H/V-Keystone p.122

Quick Corner

This allows you to manually correct each of the four corners of the

projected image separately.

Press the [Menu] button while projecting.

s "Using the Configuration Menu" p.116

Using Remote Control Using the Control Panel

Select Keystone from Settings.

Adjusting Projected Images
