Name Function
K
Audio port
Inputs audio from equipment connected to the S-Video
port or the Video port.
L
Video port
Inputs composite video signals from video sources.
M
SYNC IN/OUT port
(EB-585Wi/EB-575Wi
only)
When using the interactive features in the same room as
multiple versions of the same projector, you need to
connect the optional remote control cable set (ELPKC28)
to the projectors. When the cable set is connected, the
interactive pen operates smoothly.
s "Connecting Multiple Projectors (EB-585Wi/
EB-575Wi only)" p.41
N
Power inlet
Connects the power cord to the projector.
s "Getting Ready to Project" p.44
O
USB-A port
• Connects a USB memory device or a digital camera, and
projects images in PC Free.
s
"Projecting Images Stored on a USB Storage
Device (PC Free)" p.88
• Connects the optional Document Camera.
P
RS-232C port
When controlling the projector from a computer, connect
it to the computer with an RS-232C cable. This port is for
control use and should not normally be used.
s "ESC/VP21 Commands" p.109
Q
Audio Out port
Outputs audio from the currently projected image or the
Mic port to an external speaker.
R
Mic port
Inputs audio from the microphone.
s "Connecting a Microphone" p.36

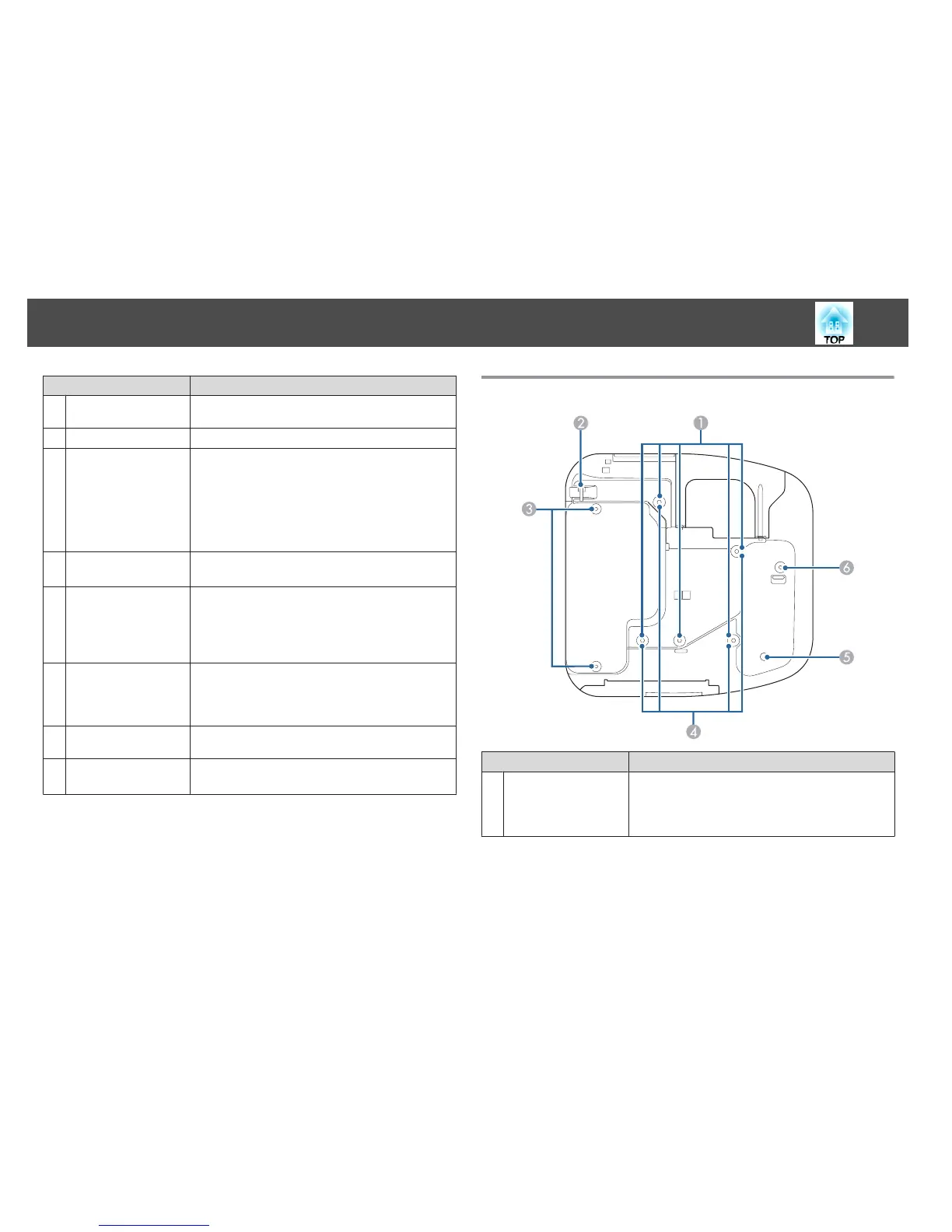

Base
Name Function
A
Ceiling mount fixing
points (five points)
Attach the optional Ceiling mount here when suspending
the projector from a ceiling.
s "Installing the Projector" p.25
s "Optional Accessories" p.174
Part Names and Functions
14
To Next Page
