Calibrating Automatically

You need to calibrate the first time you use your projector, and you do not

need the pens or a computer for Auto Calibration.

Press the [Menu] button, select the Extended menu, and press

the [Enter] button.

Select the Easy Interactive Function setting and press the [Enter]

button.

Select Auto Calibration and press the [Enter] button.

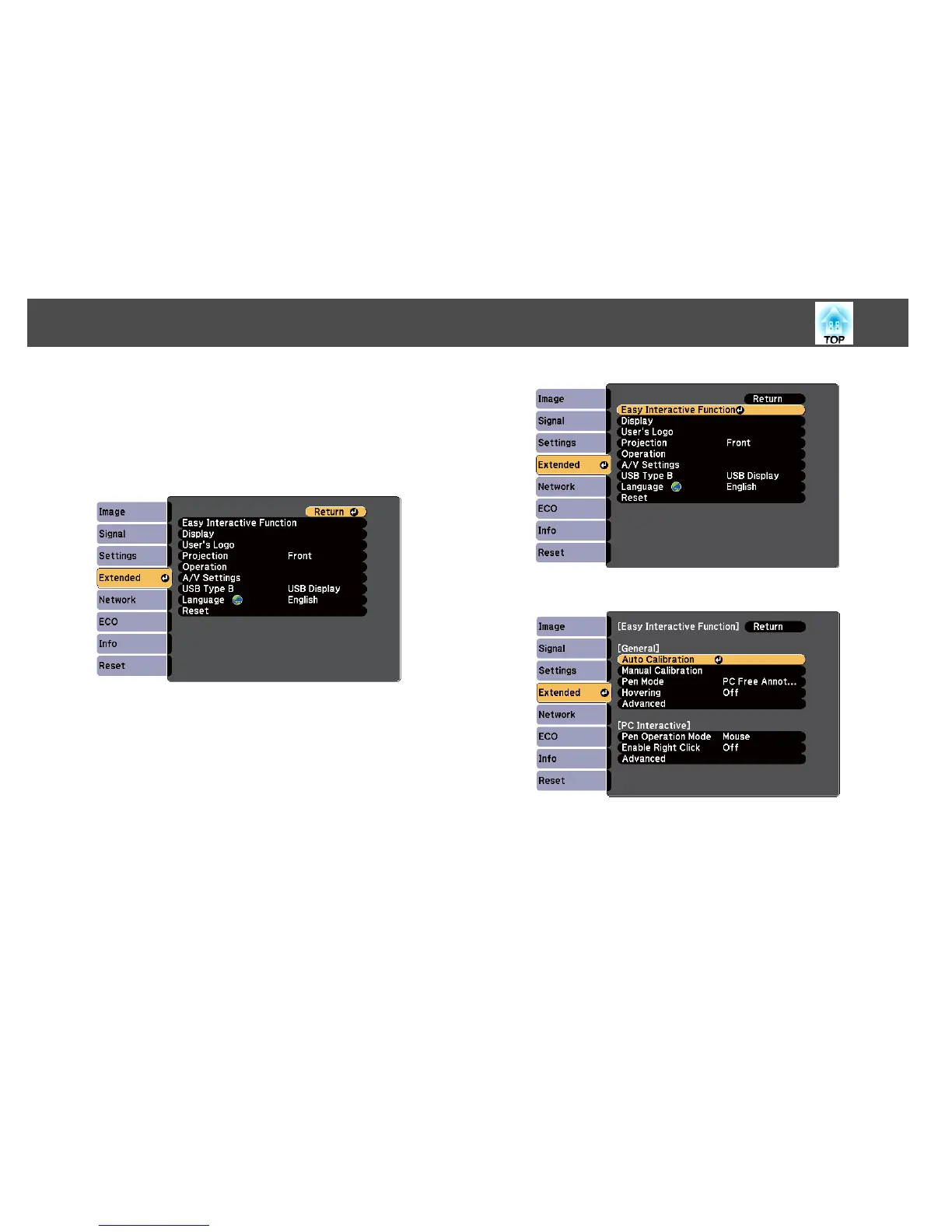

The following screen appears.

Using the Interactive Pens
