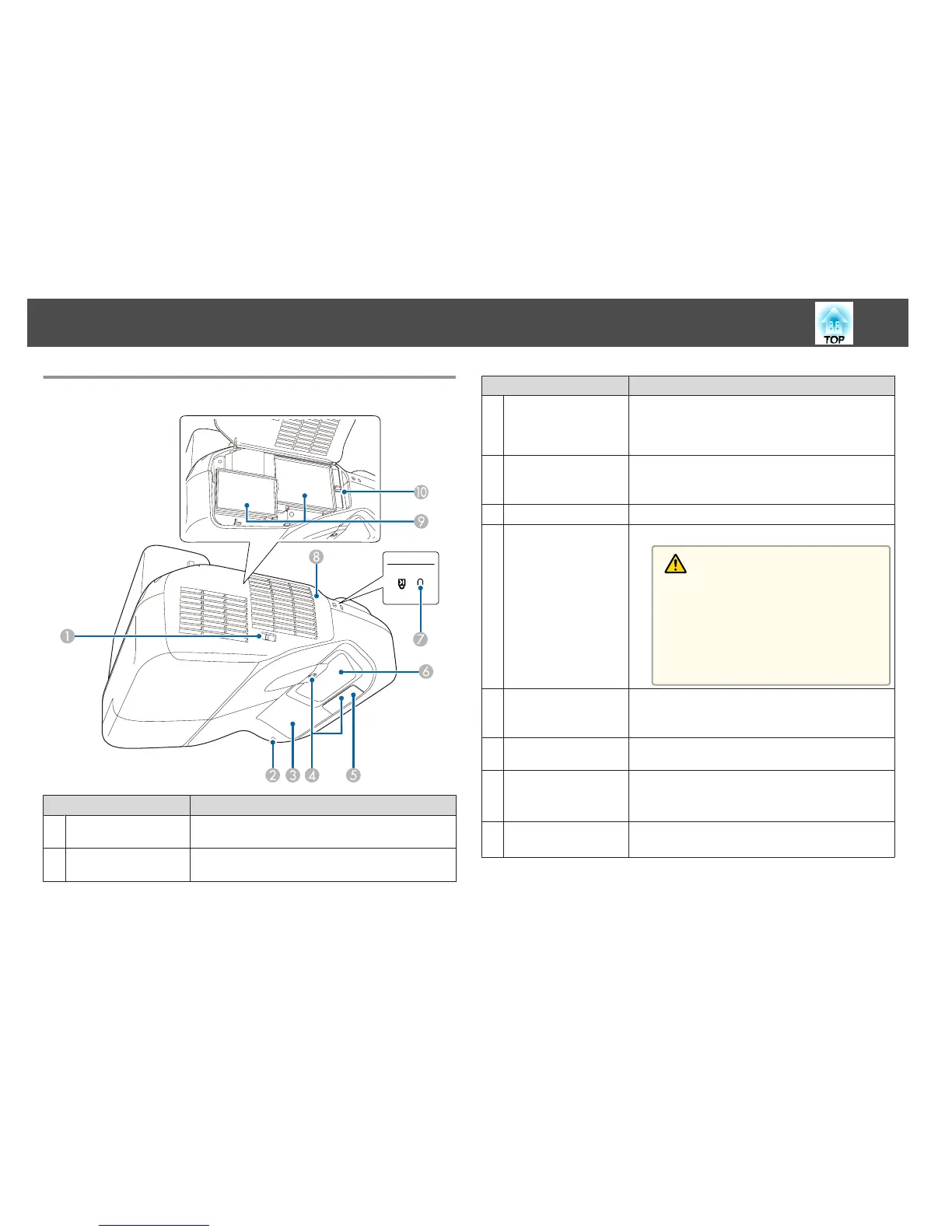

Top/Side
Name Function
A
Air filter cover
open/close lever
Opens and closes the air filter cover.
B
Wireless LAN indicator
Indicates the access status to the optional wireless LAN
unit.
Name Function
C
Easy Interactive
Function receiver
(EB-585Wi/EB-575Wi
only)
Receives signals from the interactive pen.
s "Using the Interactive Features (EB-585Wi/EB-575Wi
only)" p.62
D
Obstacle sensor
Detects obstacles that are interfering with the projection
area.
s "Cleaning the Obstacle Sensor" p.161
E
Remote receiver
Receives signals from the remote control.
F
Projection window
Projects images.
Warning
• Do not look into the projection window while
projecting.
• Do not place any objects or put your hand near
the projection window. It could cause burns,
fire, or the object to warp because this area rea‐
ches a high temperature due to the concentrated
projection light.
G
Security slot
The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
s "Anti-Theft Lock" p.104
H
Air filter cover
Open when changing the air filter or operating the focus
lever.
I
Air intake vent
(air filter)
Takes in air to cool the projector internally.
s "Cleaning the Air Filter" p.162
s "Replacing the Air Filter" p.169
J
Focus lever
Adjusts the image focus.
Open the air filter cover to operate.
Part Names and Functions
12
