c

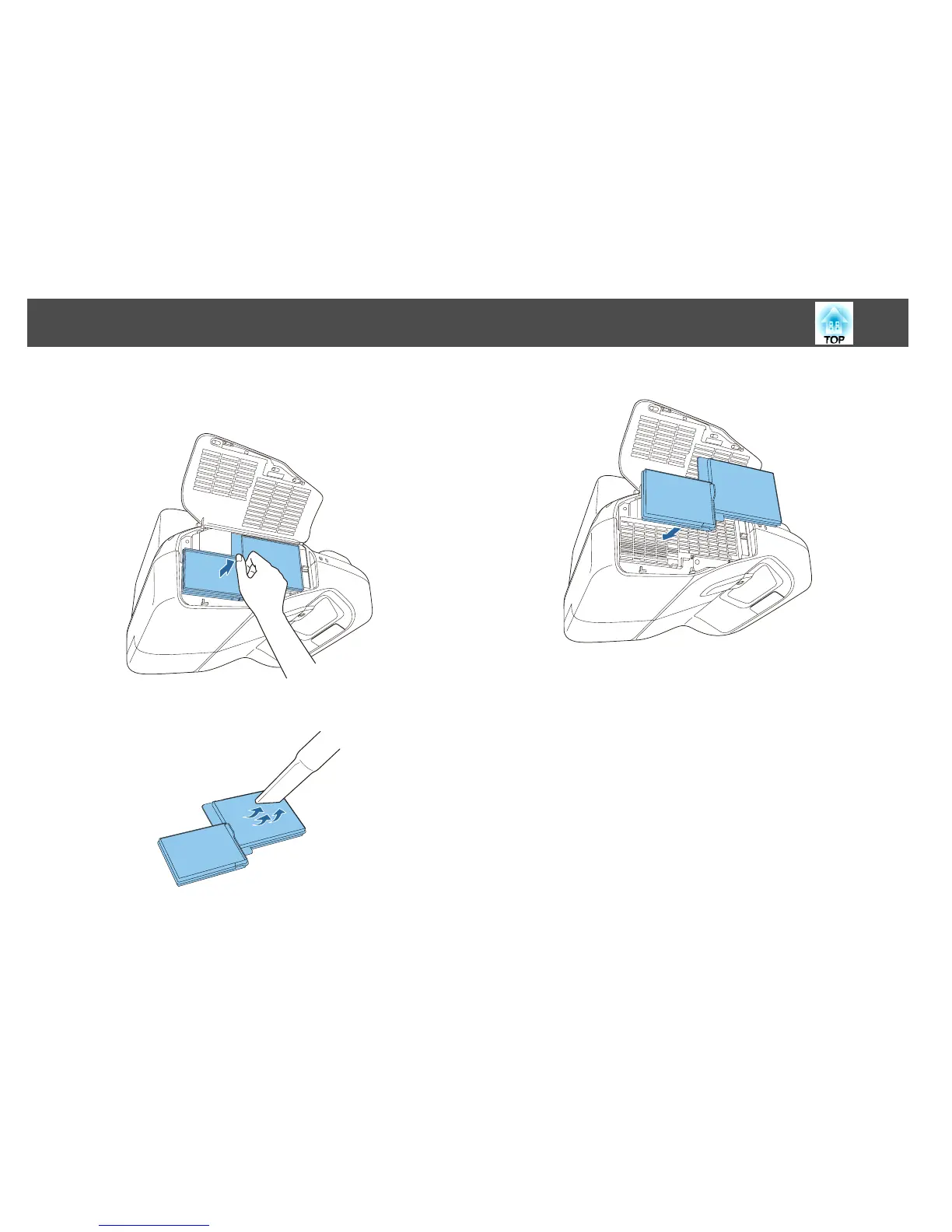

Remove the air filter.

Grip the tab in the center of the air filter, and pull the air filter

straight out.

d

Remove any dust remaining on the air filter by using a vacuum

cleaner from the front.

e

Replace the air filter.

Cleaning

163
