b

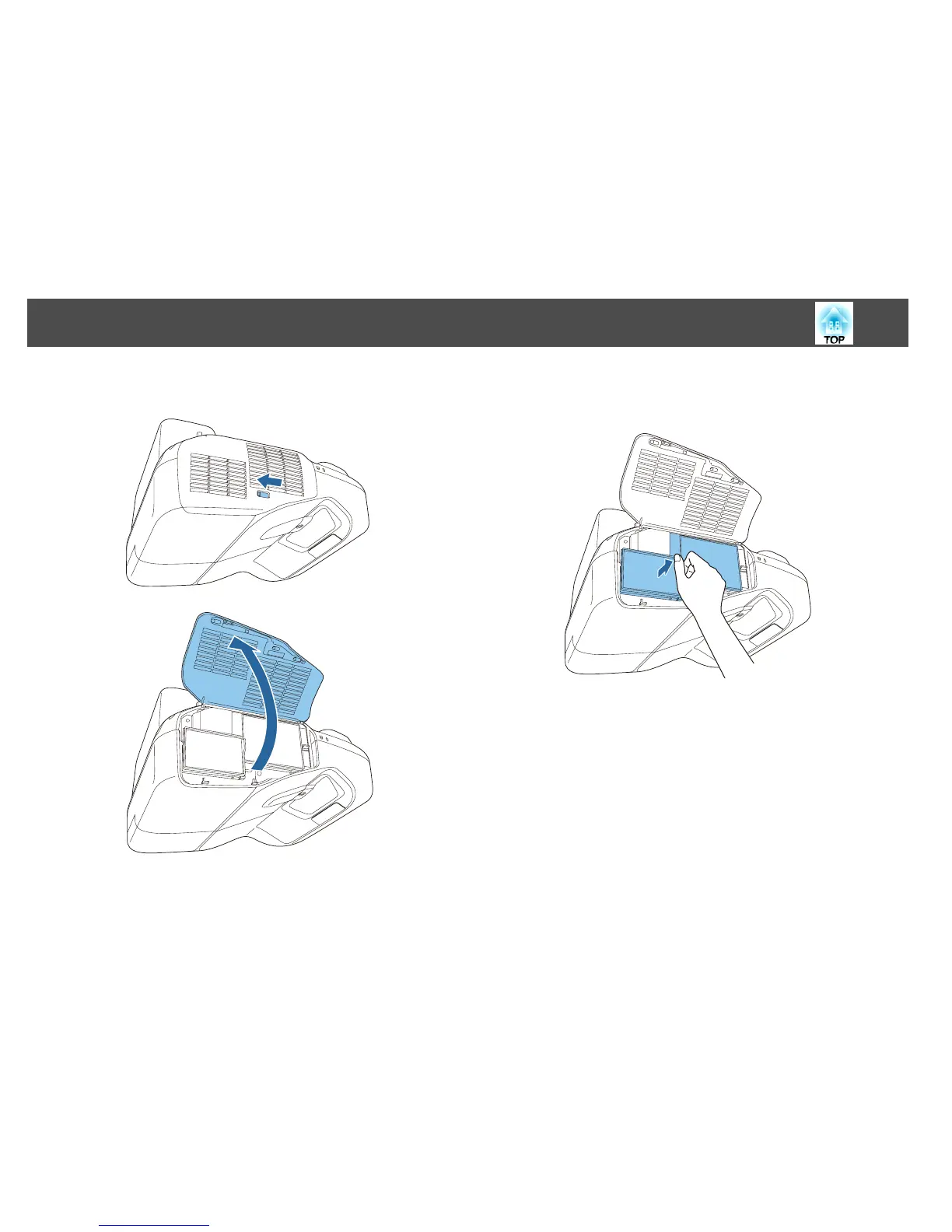

Open the air filter cover.

Press the tabs on the air filter cover and open the cover.

c

Remove the air filter.

Grip the tab in the center of the air filter, and pull the air filter

straight out.

Replacing Consumables

170
